Confirmation/Adjustment Mode

1. Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
2. Select each switch on the "Confirmation/Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "BACK" switch to return to the initial Confirmation/Adjustment Mode screen.

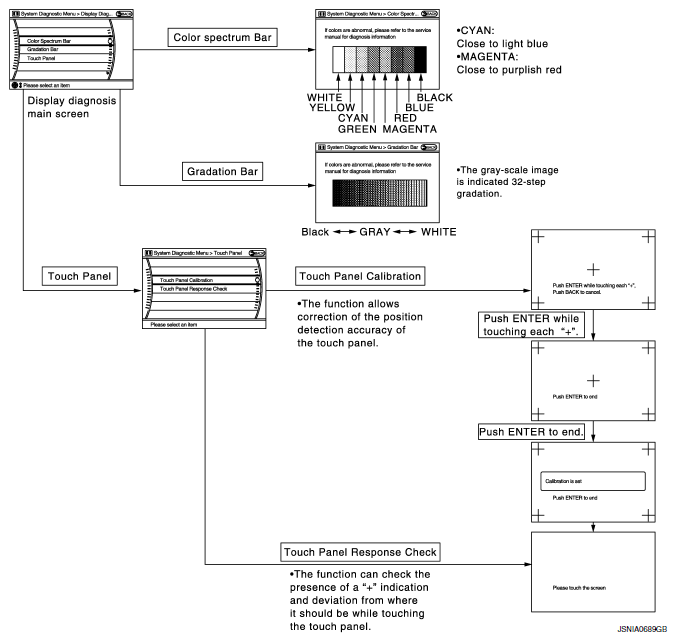

Display Diagnosis

The tint of the color bar indication is as per the following list if RGB signal error is detected.

R (red) signal error : Light blue (Cyan) tint

G (green) signal error : Purple (Magenta) tint

B (blue) signal error : Yellow tint

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Diagnosis item	Display	Vehicle status	Remarks
Vehicle speed	ON	Vehicle speed > 0 km/h (0 MPH)	Changes in indication may be delayed. This is normal.
	OFF	Vehicle speed = 0 km/h (0 MPH)
Parking brake	ON	Parking brake is applied.
	OFF	Parking brake is released.
Lights	ON	Light switch ON.	-
	OFF	Light switch OFF.
Ignition	ON	Ignition switch ON.	-
	OFF	Ignition switch in ACC position.
Reverse	ON	Shift the selector lever to "R" position.	Changes in indication may be delayed. This is normal.
	OFF	Shift the selector lever other than "R" position.

Speaker Test

Select "SPEAKER DIAGNOSIS" to display the Speaker Diagnosis screen. Press "START and NEXT" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker. Press "End" to stop the test tones.

Front tweeter : 3 kHz

Front door speaker : 300 Hz

Rear door speaker : 1 kHz

Rear surround speaker : 1 kHz

Center speaker : 1 kHz

Woofer : 100 Hz

Seat speaker : 1 kHz

Climate Control

Refer to AIR CONDITIONER CONTROL for details.

Navigation

STEERING ANGLE ADJUSTMENT

The steering angle output value detected with the gyroscope is adjusted.

SPEED CALIBRATION

During normal driving, distance error caused by tire wear and tire pressure change is automatically adjusted for by the automatic distance correction function. This function, on the other hand, is for immediate adjustment, in cases such as driving with tire chain fitted on tires.

XM SAT SUBSCRIPTION STATUS

The XM NavTraffic subscription status can be checked.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this situation.

The error record displays the time and place of the most recent occurrence of that error. However, take note of the following points.

• If there is a malfunction with the GPS antenna circuit board in the AV control unit, the correct date and time of occurrence may not be able to be displayed.
• Place of the error occurrence is represented by the position of the current location mark at the time an error occurred. If current location mark has deviated from the correct position, then the place of the error occurrence cannot be located correctly.
• The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.

Count up method A

• The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.
• The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error record display) with the "Deletelog" switch or CONSULT-III.

Count up method B

• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
• The counter upper limit is 50. Any counts exceeding 50 are ignored. "The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.

Display type of occurrence frequency	Error history display item
Count up method A	CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
Count up method B	Other than the above

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

Error item	Description	Possible malfunction factor/Action to take
CAN COMM CIRCUIT	CAN communication malfunction is detected.	Perform diagnosis with CONSULT-III, and then repair the malfunctioning parts according to the diagnosis results. Refer to "DIAGNOSIS PROCEDURE ".
CONTROL UNIT (CAN)	CAN initial diagnosis malfunction is detected.	Replace the AV control unit.
CONTROL UNIT (AV)	AV communication circuit initial diagnosis malfunction is detected.
FLASH-ROM Error Of Control Unit	AV control unit malfunction is detected.
Connection Of Gyro
XM SERIAL COMM Error
CAN Controller Memory Error
Bluetooth Module Connection Error
HDD CONN Error
HDD READ Error
HDD WRITE Error
HDD COMM Error
HDD ACCESS Error
DSP CONN Error
DSP COMM Error
Internal Communication Error	Malfunction is detected in AV control unit power supply and ground circuits.	Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.
GPS Communication Error	GPS malfunction is detected.	An intermittent error caused by strong radio interference may be detected unless any symptom (GPS reception error, etc.) occurs. Replace the AV control unit if the malfunction occurs constantly.
GPS ROM Error
GPS RAM Error
GPS RTC Error
Front Display Connection Error	When either one of the following items is detected: front display unit power supply and ground circuits are malfunctioning. serial communication circuits between AV control unit and front display unit are malfunctioning. serial communication signal between AV control unit and front display unit is malfunctioning.	Front display unit power supply and ground circuits. Serial communication circuits between AV control unit and front display unit.
GPS Antenna Error	GPS antenna connection malfunction is detected.	GPS antenna.
XM Antenna Connection Error	Satellite radio antenna connection malfunction is detected.	Satellite radio antenna feeder. Satellite radio antenna.
AV COMM CIRCUIT Internal Communication Error	Malfunction is detected in AV control unit power supply and ground circuits.	Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.
AV COMM CIRCUIT Switches Connection Error	When either one of the following items is detected: Multifunction switch power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and multifunction switch is malfunctioning.	Multifunction switch power supply and ground circuits.
AV COMM CIRCUIT DVD Deck Connection Error	When either one of the following items is detected: DVD player power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and DVD player is malfunctioning.	DVD player power supply and ground circuits.
AV COMM CIRCUIT Amplifier Connection Error	When either one of the following items is detected: BOSE amp. power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and BOSE amp. is malfunctioning.	BOSE amp. power supply and ground circuits.
AV COMM CIRCUIT Rearview Camera Connection Error	When either one of the following items is detected: camera control unit power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and camera control unit is malfunctioning.	Camera control unit power supply and ground circuits.
AV COMM CIRCUIT iPod Connection Error	When either one of the following items is detected: iPod adapter power supply and ground circuits are malfunctioning. AV communication circuits between camera control unit and iPod adapter are malfunctioning. AV communication signal between AV control unit and iPod adapter is malfunction.	iPod adapter power supply and ground circuits. AV communication circuits between camera control unit and iPod adapter.
AV COMM CIRCUIT Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits between BOSE amp. and camera control unit.	AV communication circuits between BOSE amp. and camera control unit.
AV COMM CIRCUIT Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Without DVD player models AV communication circuits between multifunction switch and BOSE amp. are malfunctioning. With DVD player models AV communication circuits between DVD player and BOSE amp. are malfunctioning.	AV communication circuits between multifunction switch and BOSE amp. (without DVD player models) AV communication circuits between DVD player and BOSE amp. (with DVD player models)
AV COMM CIRCUIT DVD Deck Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits between multifunction switch and DVD player.	AV communication circuits between multifunction switch and DVD player.
Without DVD player models AV COMM CIRCUIT Switches Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits between multifunction switch and AV control unit.	AV communication circuits between multifunction switch and AV control unit.
With DVD player models AV COMM CIRCUIT Switches Connection Error DVD Deck Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error
Without DVD player models AV COMM CIRCUIT Internal Communication Error Switches Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits.	Check and repair the short circuit in AV communication circuits.
With DVD player models AV COMM CIRCUIT Internal Communication Error Switches Connection Error DVD Deck Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if "Reset" is pressed.

Items	Display (Current)	Malfunction counter (Past)
Tx (HVAC)	OK/UNKWN	OK/0 - 39
Rx (ECM)	OK/UNKWN	OK/0 - 39
Rx (Cluster)	OK/UNKWN	OK/0 - 39
Rx (BCM)	OK/UNKWN	OK/0 - 39
Rx (HVAC)	OK/UNKWN	OK/0 - 39
Rx (USM)	OK/UNKWN	OK/0 - 39
Rx (TPMS)	OK/UNKWN	OK/0 - 39
Rx (STRG)	OK/UNKWN	OK/0 - 39

AV COMM Diagnosis

• Displays the communication status between AV control unit (master unit) and each unit.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if "Reset" is pressed.

Items	Status (Current)	Counter (Past)
C Tx(ITM-PrimarySW)	OK/UNKWN	OK/0 - 39
C Rx(PrimarySW-ITM)	OK/UNKWN	OK/0 - 39
C Rx(STRG SW-ITM)	OK/UNKWN	OK/0 - 39
C Rx (Audio-ITM)	OK/UNKWN	OK/0 - 39
C Rx(Amp-ITM)	OK/UNKWN	OK/0 - 39
C Rx(RearCamera-ITM)	OK/UNKWN	OK/0 - 39
C Rx(DVD-ITM)	OK/UNKWN	OK/0 - 39
C Rx(XM-ITM)	OK/UNKWN	OK/0 - 39
C Rx(iPod-ITM)	OK/UNKWN	OK/0 - 39
C Rx(Amp-Audio)	OK/UNKWN	OK/0 - 39
C Rx(DVD-Audio)	OK/UNKWN	OK/0 - 39
C Rx(iPod-Audio)	OK/UNKWN	OK/0 - 39
C Tx(Audio-ITM)	OK/UNKWN	OK/0 - 39

Hands-Free Phone

The hands-free phone reception volume adjustment, microphone and speaker test, and memory erase functions are also available.

Camera Cont.

The two functions of "Connection Confirmation" and "Adjust Offset of Rear View Camera" are available.

CONNECTION CONFIRMATION

The steering angle sensor, reverse signal and vehicle speed sensor can be inspected.

Diagnosis item	Display	Vehicle status
Steer. Angle Sensor	ON	When steering the vehicle with ignition switch ON (remains ON until connection mode is stopped when it is turned ON).
	OFF	Ignition switch at ACC. No steering with ignition switch ON.
	-	Malfunction detected in camera connection recognition signal.
Reverse Sensor	ON	Selector lever is in "R" with ignition switch ON.
	OFF	Ignition switch at ACC. Selector lever is in position other than "R" with ignition switch ON.
	-	Malfunction detected in camera-connection recognition signal.
Vehicle Speed Sensor	ON	Vehicle speed is more than 0 km/h (0 MPH) with ignition switch ON.
	OFF	Ignition switch at ACC. Vehicle speed is 0 km/h (0 MPH) with ignition switch ON.
	-	Malfunction detected in camera connection recognition signal.
Side view Switch	-	Not used.

ADJUST OFFSET OF REAR VIEW CAMERA

Use this mode to adjust the guide line display position of the rearview monitor if necessary after removing the rear view monitor camera.

Bluetooth

Confirm/Change Passkey

• The passkey of Bluetooth can be confirmed and changed.
• The passkey can be changed by four digits within 0 to 9.

Confirm/Change Device Name

• The device name of Bluetooth can be confirmed and changed.
• The device name can be changed by sixteen digits within A to Z (small character can be used) and - (hyphen).

SAT

• Change Channel

• Any necessary channels required to receive traffic information from the satellite radio system can be set.

• Change Application ID

• Any application ID'-s required to receive traffic information from the satellite radio system can be set.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed.)

Initialize Settings

Deletes data stored in HDD.
