With Navigation And DVD Player

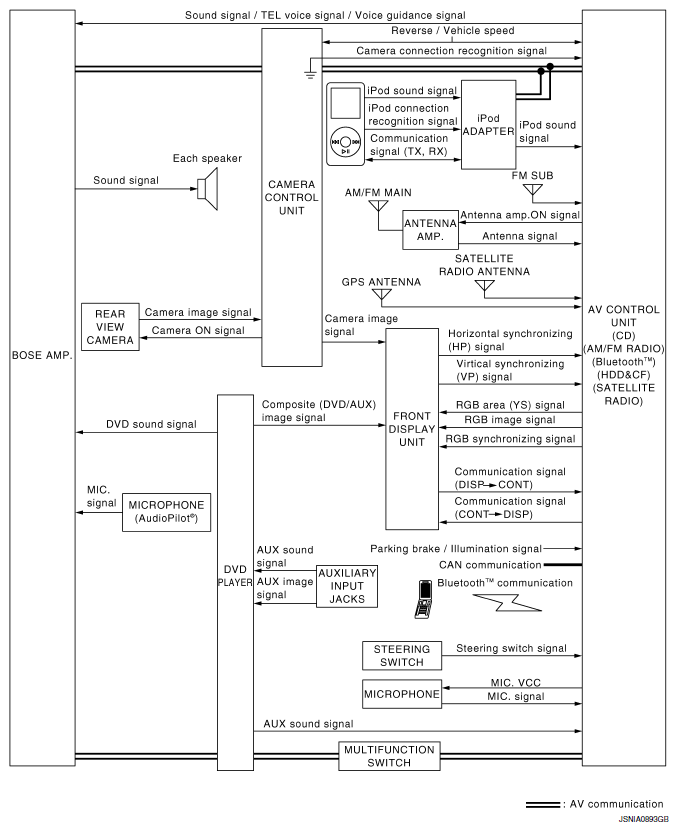

Fig 1: Multi AV System - System Diagram (With Navigation And DVD Player)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
Courtesy of NISSAN MOTOR CO., U.S.A.
