Removal and Installation (AWD Models): Components

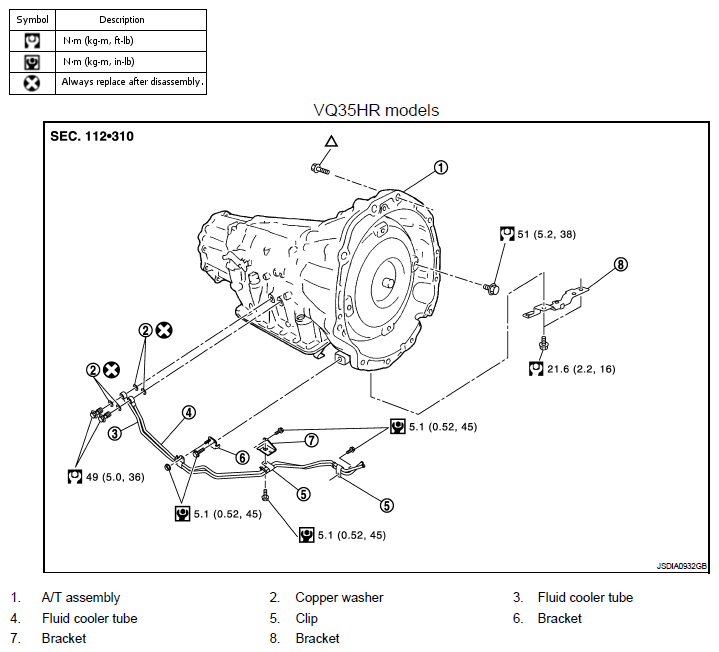

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (VQ35HR Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) shown above. Refer to COMPONENT .

However, refer to the following symbols for others.

For tightening torque, refer to INSTALLATION .

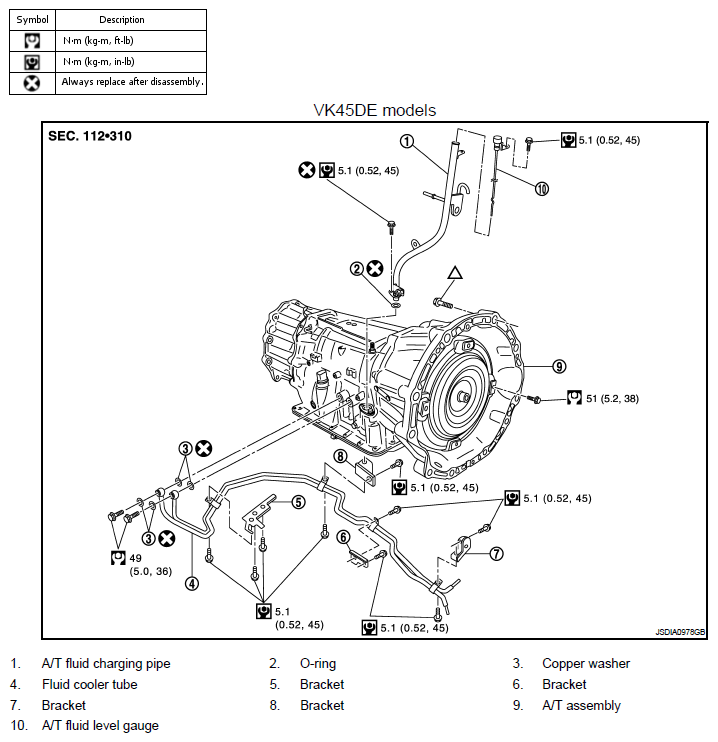

Fig 2: Transmission Assembly Replacement Components With Torque Specifications (VK45DE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) shown above. Refer to COMPONENT .

However, refer to the following symbols for others.

For tightening torque, refer to INSTALLATION .
