Oil Pump: Component

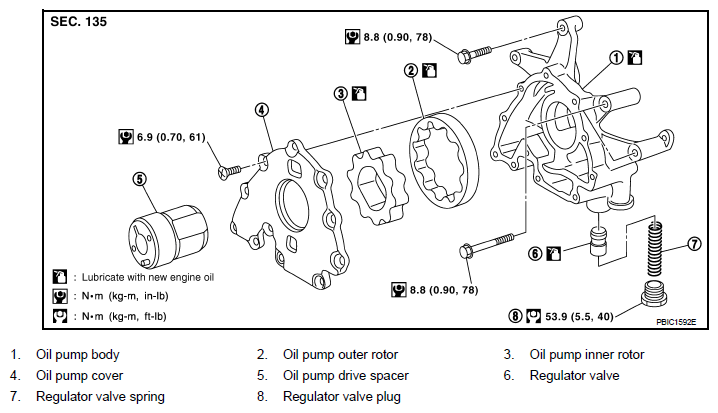

Fig 1: Exploded View Of Oil Pump With Torque Specifications

G06307004

Courtesy of NISSAN MOTOR CO., U.S.A.
