Bank 1

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

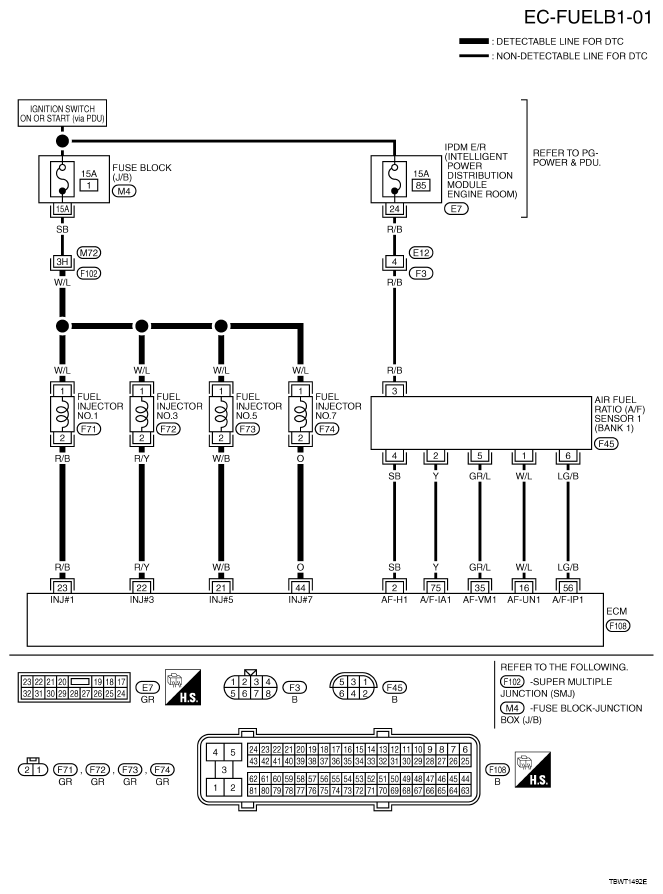

Fig 1: Wiring Diagram - EC-FUELB1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINALS REFERENCE CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

A/F sensor 1 heater (bank 1)

[Engine is running]

Warm-up condition
Idle speed

Approximately 5 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

W/L

A/F sensor 1 (bank 1)

[Engine is running]

Warm-up condition
Idle speed

Approximately 3.1 V

GR/L

Approximately 2.6 V

LG/B

Approximately 2.3 V

21
22
23
44

W/B
R/Y
R/B
O

Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 7

[Engine is running]

Warm-up condition
Idle speed

NOTE: The pulse cycle changes depending on RPM at idle

BATTERY VOLTAGE (11 - 14 V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

[Engine is running]

Warm-up condition
Engine speed: 2, 000 RPM

BATTERY VOLTAGE (11 - 14 V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
