Bank 2

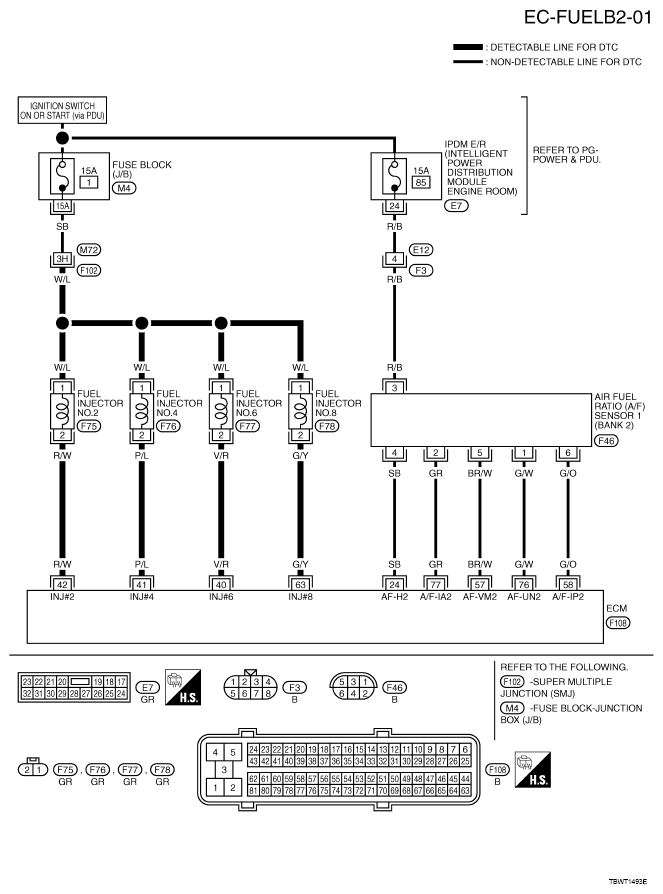

Fig 1: Wiring Diagram - EC-FUELB2-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINALS REFERENCE CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

A/F sensor 1 heater (bank 2)

[Engine is running]

Warm-up condition
Idle speed

Approximately 5 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

40
41
42
63

V/R
P/L
R/W
G/Y

Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 8

[Engine is running]

Warm-up condition
Idle speed

NOTE: The pulse cycle changes depending on RPM at idle

BATTERY VOLTAGE (11 - 14 V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

[Engine is running]

Warm-up condition
Engine speed: 2, 000 RPM

BATTERY VOLTAGE (11 - 14 V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

BR/W

A/F sensor 1 (bank 2)

[Engine is running]

Warm-up condition
Idle speed

Approximately 2.6 V

G/O

Approximately 2.3 V

G/W

Approximately 3.1 V

Approximately 2.3 V

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
