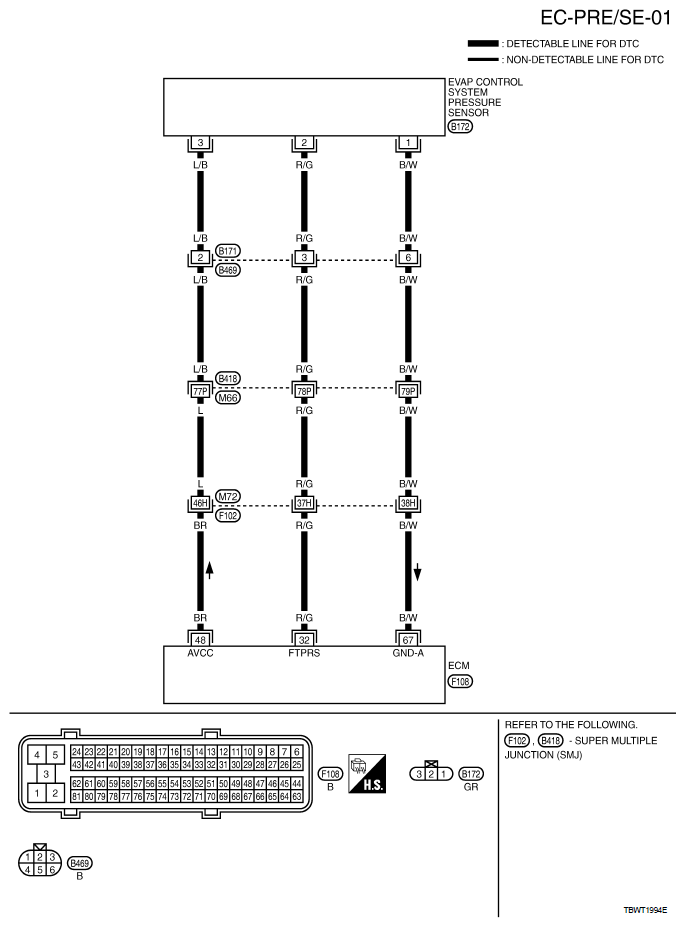

DTC P0452 EVAP Control System Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
CONNECTOR TERMINALS REFERENCE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 32 | R/G | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8 V |
| 48 | BR | Sensor power supply (EVAP control system pressure sensor) |
[Ignition switch: ON] | Approximately 5 V |
| 67 | B/W | Sensor ground (EVAP control system pressure sensor) |
[Engine is running]
|
Approximately 0 V |
