DTC P0550 PSP Sensor: Wiring Diagram

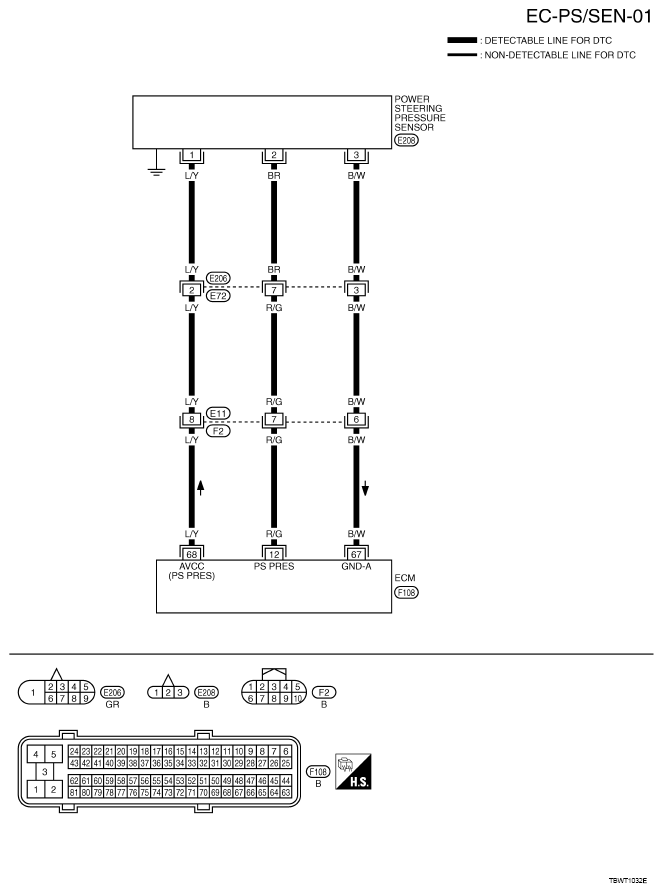

Fig 1: Wiring Diagram - EC-PS/SEN-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINALS REFERENCE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
12	R/G	Power steering pressure sensor	[Engine is running] Steering wheel: Being turned	0.5 - 4.5 V
12	R/G	Power steering pressure sensor	[Engine is running] Steering wheel: Not being turned	0.4 - 0.8 V
67	B/W	Sensor ground (Power steering pressure sensor)	[Engine is running] Warm-up condition Idle speed	Approximately 0 V
68	L/Y	Sensor power supply (Power steering pressure sensor)	[Ignition switch: ON]	Approximately 5 V
