DTC P0850 PNP Switch: Wiring Diagram

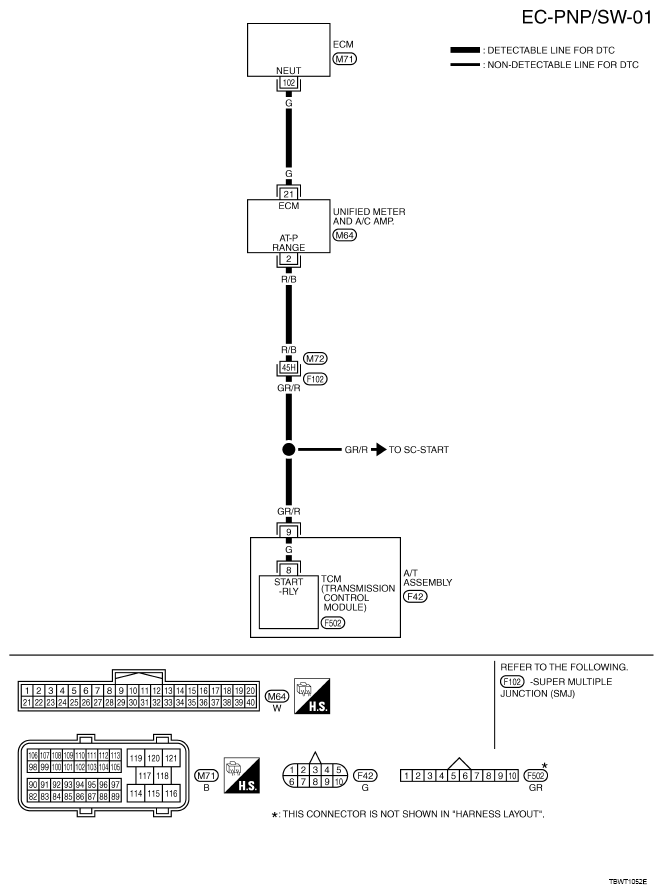

Fig 1: Wiring Diagram - EC-PNP/SW-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINALS REFERENCE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
102	G	PNP switch	[Ignition switch: ON] Selector lever position: P or N	Approximately 0 V
102	G	PNP switch	[Ignition switch: ON] Selector lever position: Except above	BATTERY VOLTAGE (11 - 14 V)
