Component Description

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

Refer to "SYSTEM DESCRIPTION " for the ASCD function.

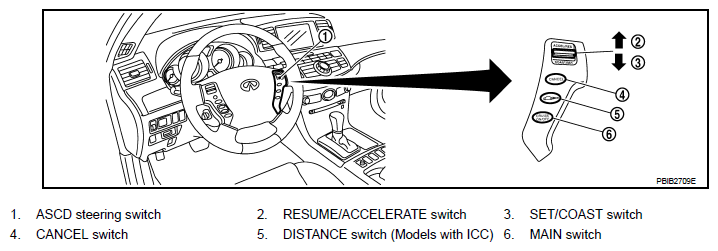

Fig 1: Identifying ASCD Steering Switch Position

Courtesy of NISSAN MOTOR CO., U.S.A.
