Component Description

ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

Refer to "OUTLINE " for the ICC function.

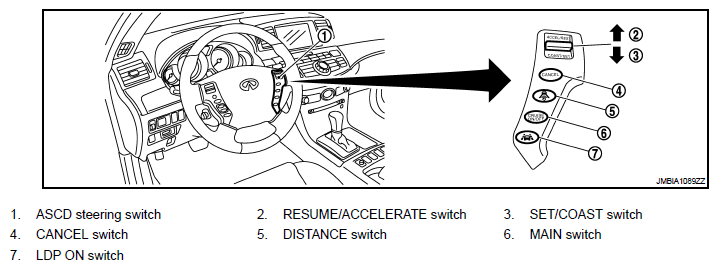

Fig 1: Identifying ICC Steering Switch Position

Courtesy of NISSAN MOTOR CO., U.S.A.
