DTC P2101 Electric Throttle Control Function: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

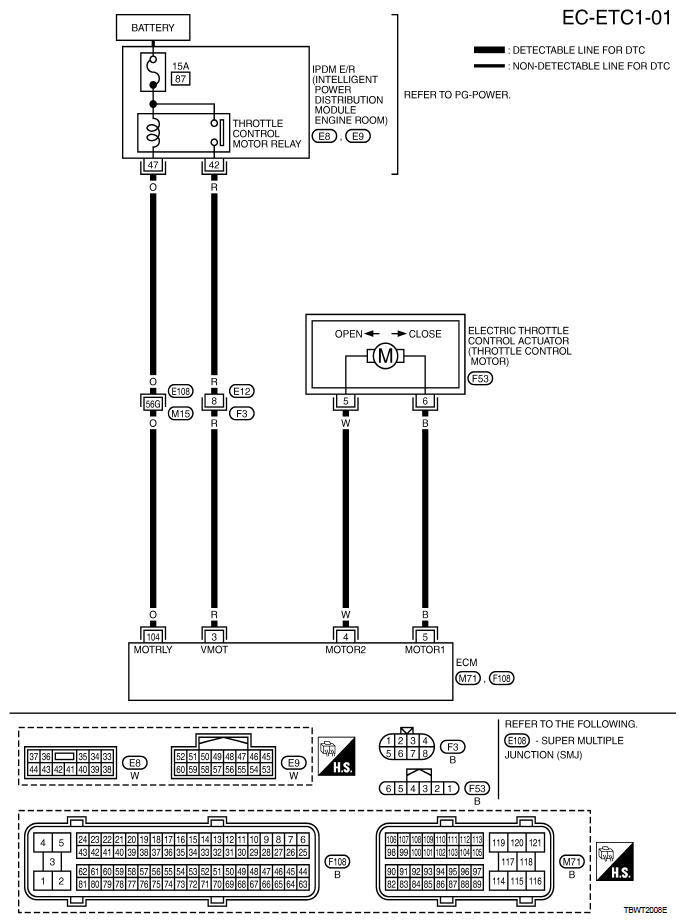

Fig 1: Wiring Diagram - EC-ETC1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINALS REFERENCE CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

Throttle control motor relay power supply

[Ignition switch: ON]

BATTERY VOLTAGE (11 - 14 V)

Throttle control motor (Close)

[Ignition switch: ON]

Engine: Stopped
Selector lever position: D
Accelerator pedal: Released

0 - 14 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

Throttle control motor (Open)

[Ignition switch: ON]

Engine: Stopped
Selector lever position: D
Accelerator pedal: Fully depressed

0 - 14 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

104

Throttle control motor relay

[Ignition switch: OFF]

BATTERY VOLTAGE (11 - 14 V)

[Ignition switch: ON]

0 - 1.0 V

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
