With GST

Start engine and warm it up to normal operating temperature.
Select Service $01 with GST.
Check the mass air flow sensor signal with Service $01.
Check for linear mass air flow sensor signal value rise in response to increases to approximately 4, 000 RPM in engine speed.
If NG, go to "DIAGNOSIS PROCEDURE ".

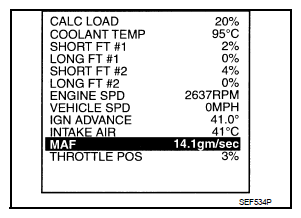

Fig 1: Generic Scan Tool Display - MAF

Courtesy of NISSAN MOTOR CO., U.S.A.
