Front Speed Sensor: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

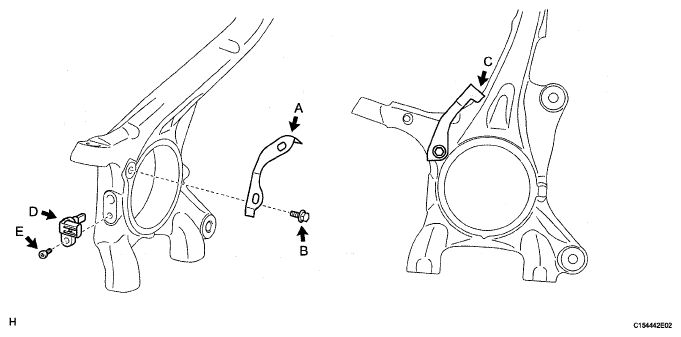

INSTALL FRONT SKID CONTROL SENSOR CLAMP LH
1. Install the skid control sensor clamp (labeled A) with the bolt (labeled B).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  Fig 1: Locating Skid Control Sensor Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Install the bracket so that the rotation stopper (labeled C) touches the knuckle.

  Fig 2: Locating Hexagon Socket Head Cap Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SPEED SENSOR LH
1. Install the speed sensor (labeled D) with the hexagon socket head cap bolt (labeled E).
  Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
  NOTE:
  - Make sure there are no pieces of iron or other foreign matter attached to the sensor tip part.
  - While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
  - After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
  - Make sure there is no foreign matter attached to the magnetic rotor.
INSTALL FRONT SKID CONTROL SENSOR WIRE LH
1. Connect the connector (labeled A).
2. Install the 3 harness clamps (labeled B) with the 3 bolts (labeled C).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
  NOTE:
  - When installing the clamps, do not twist the wire harness.
  - For clamps with rotation stoppers, make sure the rotation stopper touches the installation position.

    Fig 3: Locating Harness Clamps With Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

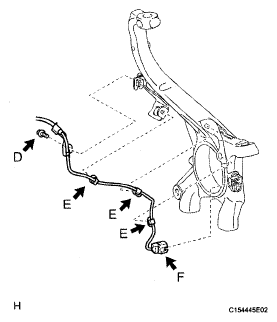

3. Install the harness clamp with the bolt (labeled D).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
  NOTE:
  - When installing the clamp, do not twist the wire harness.
  - Make sure the clamp's rotation stopper touches the installation position.
4. Attach the 3 clips (labeled E).
  NOTE:
  - When installing the clips, do not twist the wire harness.
  - When installing the clips, securely insert them as shown below.
  Fig 4: Identifying Clips (Labeled E)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the speed sensor connector (labeled F).
  NOTE: Securely connect the connector.

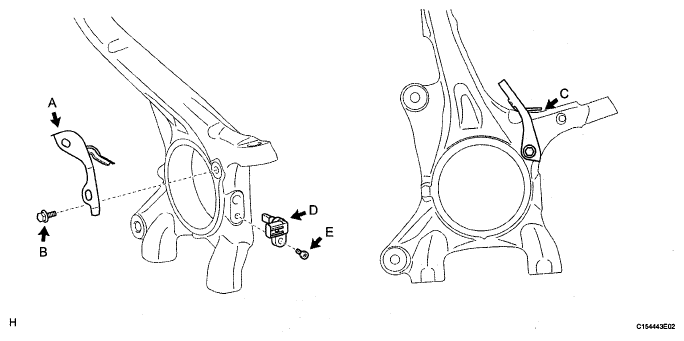

INSTALL FRONT SKID CONTROL SENSOR CLAMP RH
1. Install the skid control sensor clamp (labeled A) with the bolt (labeled B).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  NOTE: Install the bracket so that the rotation stopper (labeled C) touches the knuckle.

  Fig 5: Locating Front Skid Control Sensor Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SPEED SENSOR RH
1. Install the speed sensor (labeled D) with the hexagon socket head cap bolt (labeled E).
  Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
  NOTE:
  - Make sure there are no pieces of iron or other foreign matter attached to the sensor tip part.
  - While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
  - After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
  - Make sure there is no foreign matter attached to the magnetic rotor.
INSTALL FRONT SKID CONTROL SENSOR WIRE RH
1. Install the skid control sensor clamp (labeled A) with the bolt (labeled B).
  Torque: for Bolt B

  5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Install the connector (labeled C) with connect the connector (labeled C).
3. Install the 2 harness clamps (labeled D) with the 2 bolts (labeled E).
  Torque: for Bolt E

  13 N*m (127 kgf*cm, 9 ft.*lbf)

  Fig 6: Locating Skid Control Sensor Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When installing the clamps, do not twist the wire harness.
  - For clamps with rotation stoppers, make sure the rotation stopper touches the installation position.

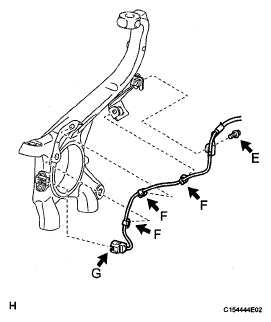

4. Install the harness clamp with the bolt (labeled E).
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
  NOTE:
  - When installing the clamp, do not twist the wire harness.
  - Make sure the clamp's rotation stopper touches the installation position.
5. Attach the 3 clips (labeled F).
  NOTE:
  - When installing the clips, do not twist the wire harness.
  - When installing the clips, securely insert them as shown below.
6. Connect the speed sensor connector (labeled G).
  NOTE: Securely connect the connector.

  Fig 7: Locating Harness Clamps With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: for Aluminum Wheel

131 N*m (1336 kgf*cm, 97 ft.*lbf)

for Steel Wheel

209 N*m (2131 kgf*cm, 154 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal (see TEST MODE PROCEDURE ).
