Navigation Antenna: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NAVIGATION ANTENNA ASSEMBLY
1. Install the antenna with the 2 screws.
2. Attach the clamp.

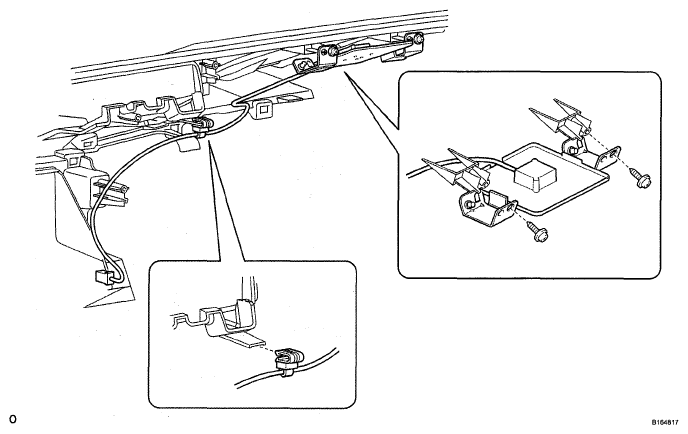

  Fig 1: Identifying Navigation Antenna Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DEFROSTER NOZZLE ASSEMBLY (See REASSEMBLY )
INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT (See REASSEMBLY )
INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT (See REASSEMBLY )
INSTALL NO. 1 HEATER TO REGISTER DUCT WITH NO. 2 HEATER TO REGISTER DUCT (See REASSEMBLY )
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
1. for Column Shift Type:
  Install the instrument panel (See INSTALLATION ).
2. for Floor Shift Type:
  Install the instrument panel (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
