System - Engine Mechanical & Other

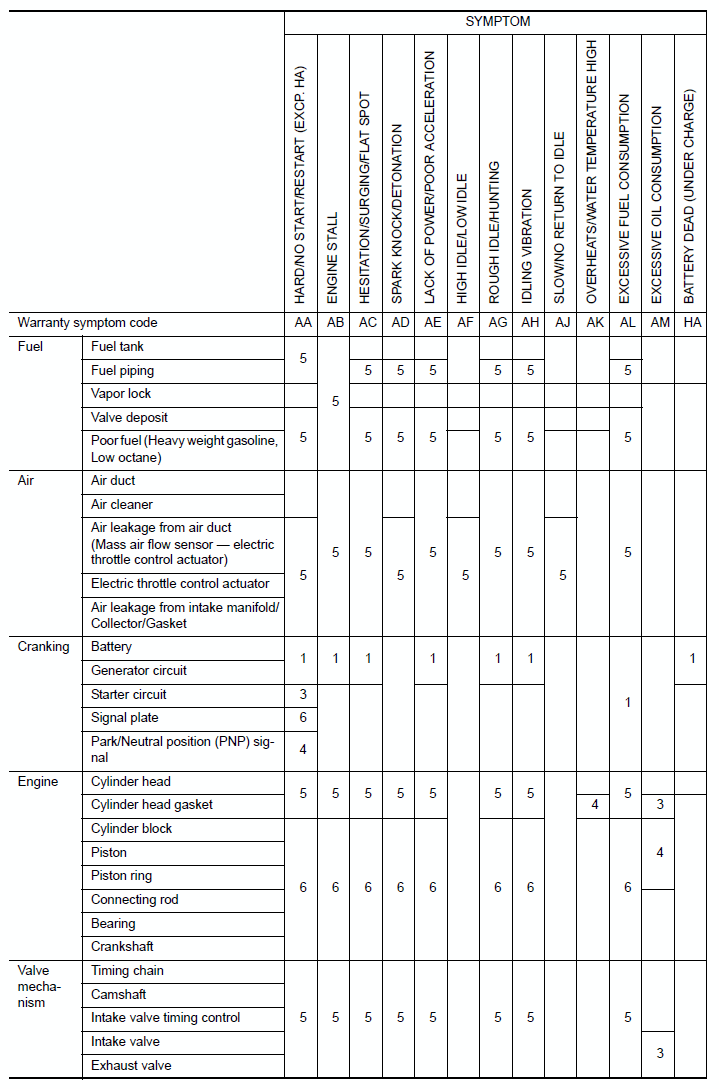

Fig 1: Engine Mechanical & Other System Symptom Matrix Chart (1 Of 2)
G06315945Courtesy of NISSAN MOTOR CO., U.S.A.

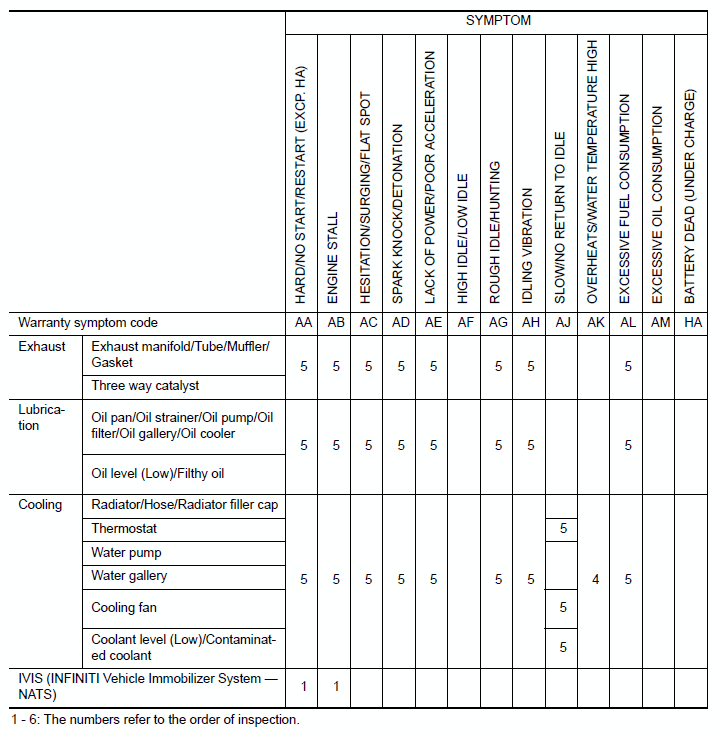

Fig 2: Engine Mechanical & Other System Symptom Matrix Chart (2 Of 2)
G06315946Courtesy of NISSAN MOTOR CO., U.S.A.
