Inspection After Disassembly

Oil Pump Clearance

• Measure the clearance with feeler gauge (C).
  • Clearance between oil pump outer rotor and oil pump body [position (B)]

    Standard :  Refer to "OIL PUMP ".

  • Tip clearance between oil pump inner rotor and oil pump outer rotor [position (A)]

  Standard :  Refer to "OIL PUMP ".

  Fig 1: Measuring Clearance Between Oil Pump Outer Rotor And Oil Pump Body

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Measure the clearance with feeler gauge and straightedge (A).
  • Side clearance between oil pump inner rotor and oil pump body [position (C)]

    Standard :  Refer to "OIL PUMP ".

    Fig 2: Measuring Side Clearance Between Oil Pump Inner Rotor And Oil Pump Body

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Side clearance between oil pump outer rotor and oil pump body [position (B)]

  Standard :  Refer to "OIL PUMP ".

• Calculate the clearance between oil pump inner rotor and oil pump body as follows:

OIL PUMP BODY INNER DIAMETER

• Measure the inner diameter of oil pump body with inside micrometer. [position (A)]

OIL PUMP INNER ROTOR OUTER DIAMETER

• Measure the outer diameter of protruded portion of oil pump inner rotor (1) with micrometer. [position (B)]

OIL PUMP INNER ROTOR TO OIL PUMP BODY CLEARANCE

• (Clearance) = (Oil pump body inner diameter) - (Oil pump inner rotor outer diameter)

Standard :  Refer to "OIL PUMP ".

• If measured/calculated values are out of the standard, replace oil pump assembly.

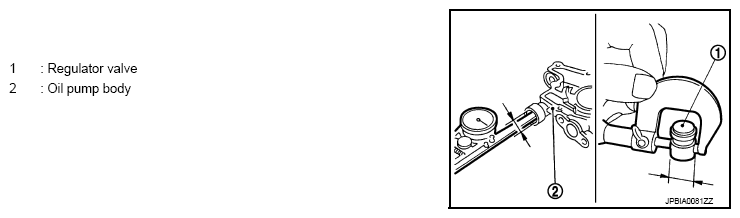

Regulator Valve Clearance

(Clearance) = (Regulator valve hole diameter) - (Regulator valve outer diameter)

Standard :  Refer to "REGULATOR VALVE ".

• If the calculated value is out of the standard, replace oil pump assembly.
