SRT Status Mode

Description

This function allows to read if ECM has completed the self-diagnoses of major emission control systems and components. For SRT, refer to "DIAGNOSIS DESCRIPTION : SYSTEM READINESS TEST (SRT) CODE ".

Operation Procedure

1. Turn ignition switch ON and wait 20 seconds.
2. SRT status is indicated as shown blow.
   • ECM continues to illuminate MIL if all SRT codes are set.
   • ECM blinks MIL for about 10 seconds if all SRT codes are not set.

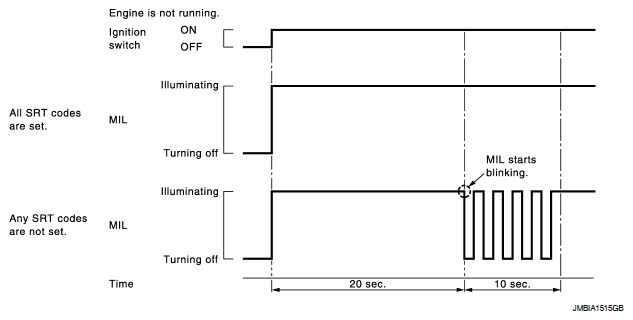

   Fig 1: Identifying Blinking Pattern Of Ignition Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.
