DIAG ON CAN : System Description
WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

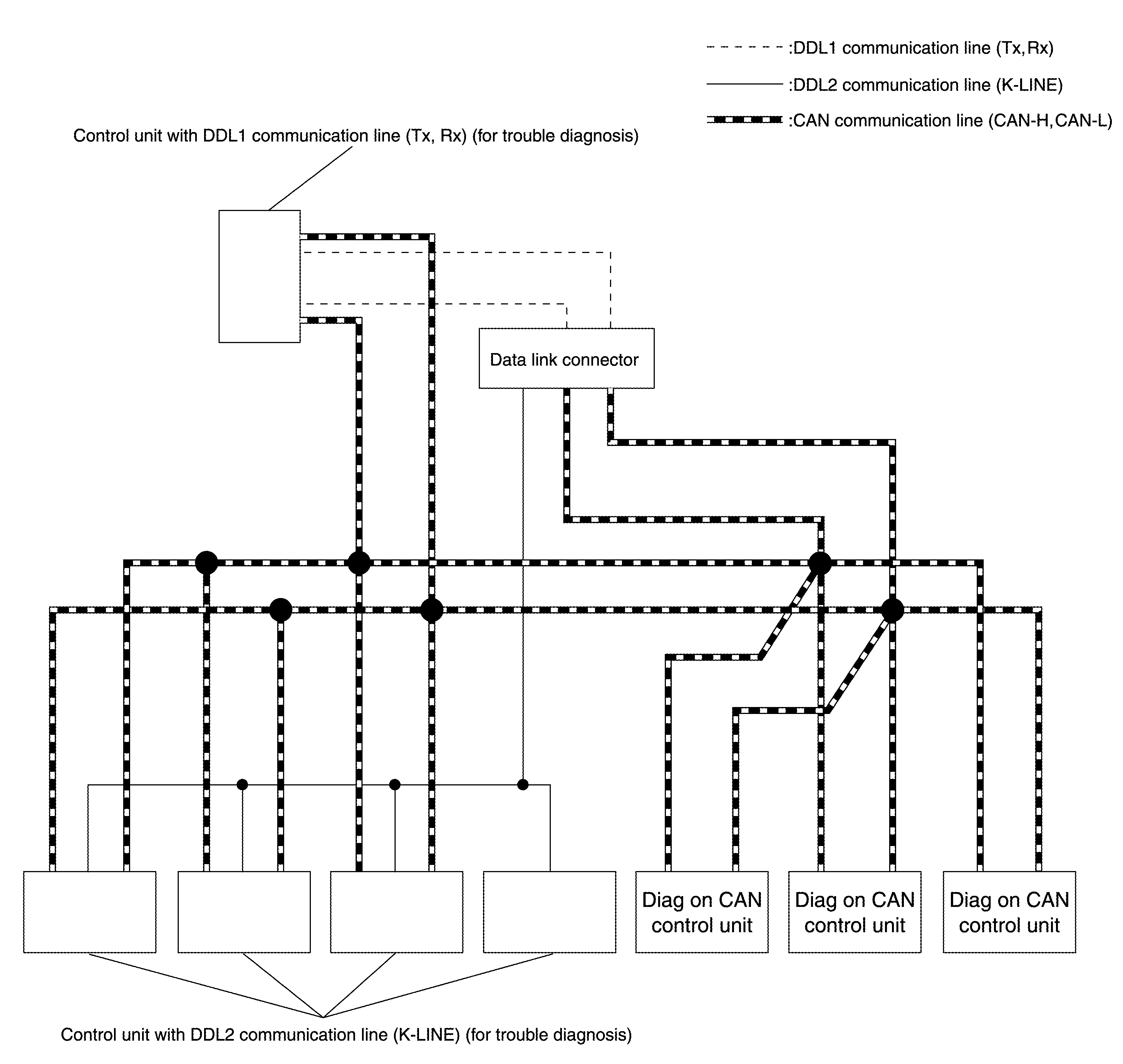

SYSTEM DIAGRAM
DIAG ON CAN DESCRIPTION CHART
| Name | Harness | Description |
|---|---|---|
| DDL1 | Tx Rx |
For communications with the diagnostic tool. (CAN-H and CAN-L are used for controlling) |
| DDL2 | K-LINE | For communications with the diagnostic tool. (CAN-H and CAN-L are used for controlling) |
| Diag on CAN | CAN-H CAN-L |
For communications with the diagnostic tool. (CAN-H and CAN-L are also used for control and diagnoses.) |
DESCRIPTION
"Diag on CAN" is a diagnosis method which uses the CAN communication line for the communication between the control unit and the diagnostic tool.
