Exploded View

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

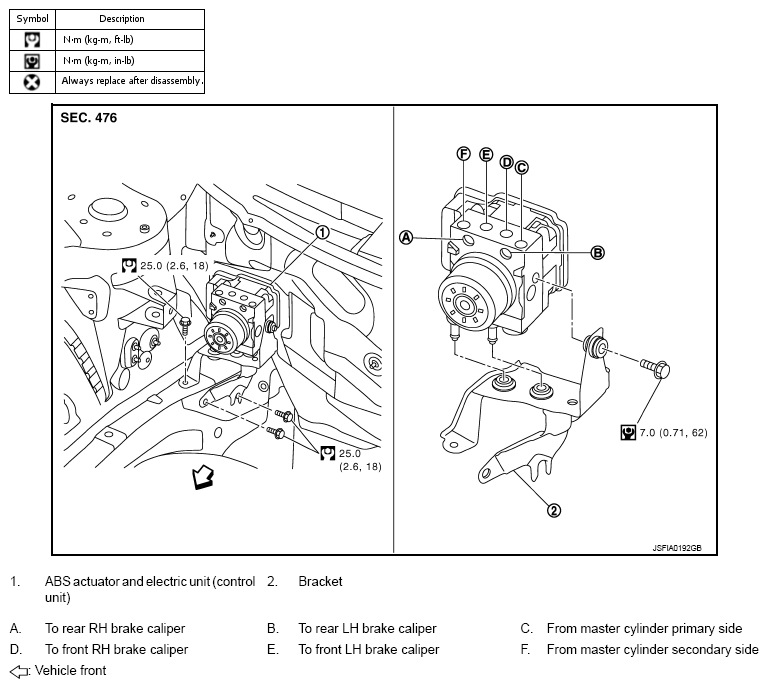

Fig 1: Exploded View Of ABS Actuator And Electric Unit With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to , "COMPONENTS " for symbol in the figure.
