Removal and Installation: Installation

Note the following, and install in the reverse order removal.

• Refer to the followings when installing output speed sensor.
  CAUTION:

  • Never subject it to impact by dropping or hitting it.
  • Never disassemble.
  • Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
  • Never place in an area affected by magnetism.
• Refer to the followings when installing rear extension assembly.
  • Apply recommended sealant to rear extension assembly as shown in the figure.

    Use Anaerobic Liquid Gasket or an equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    Sealant starting point and endpoint (A) : Start and finish point shall be in the center of two bolts.

    Overlap width of sealant starting point and endpoint (B) : 3 - 5 mm (0.12 - 0.20 in)

    Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)

    Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)

    CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

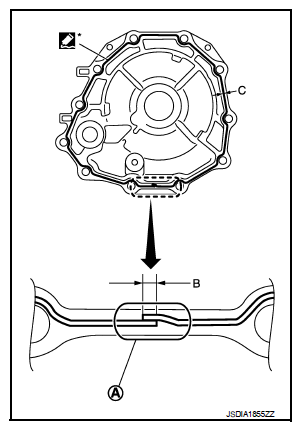

    Fig 1: Applying Sealant To Rear Extension Assembly

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Tighten rear extension assembly bolts to the specified torque.

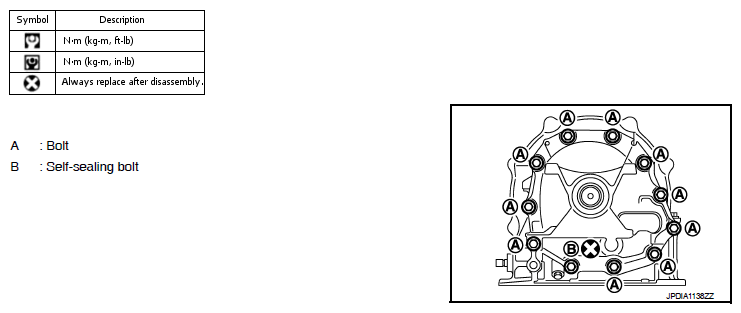

  Fig 2: Identifying Rear Extension Assembly Bolts

  Courtesy of NISSAN MOTOR CO., U.S.A.

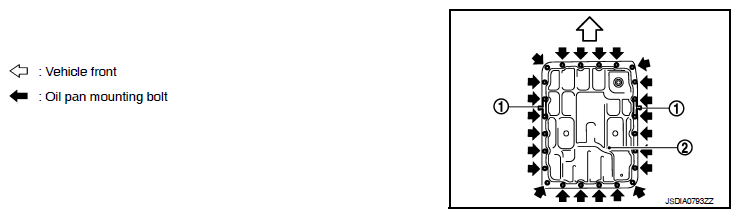

• Refer to the followings when installing oil pan (2) (with oil pan gasket) and clips (1) to transmission case.

Fig 3: Identifying Oil Pan Clips

Courtesy of NISSAN MOTOR CO., U.S.A.

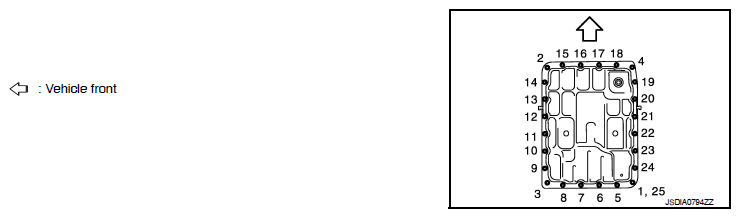

• Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque.

Fig 4: Identifying Oil Pan Mounting Bolts Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.
