Transfer Fluid: Refilling

Remove filler plug (1) and gasket. Then fill fluid up to mounting hole for the filler plug.
Fluid and viscosity : Refer to "FLUIDS AND LUBRICANTS ".

Fluid capacity : Refer to "GENERAL SPECIFICATIONS ".

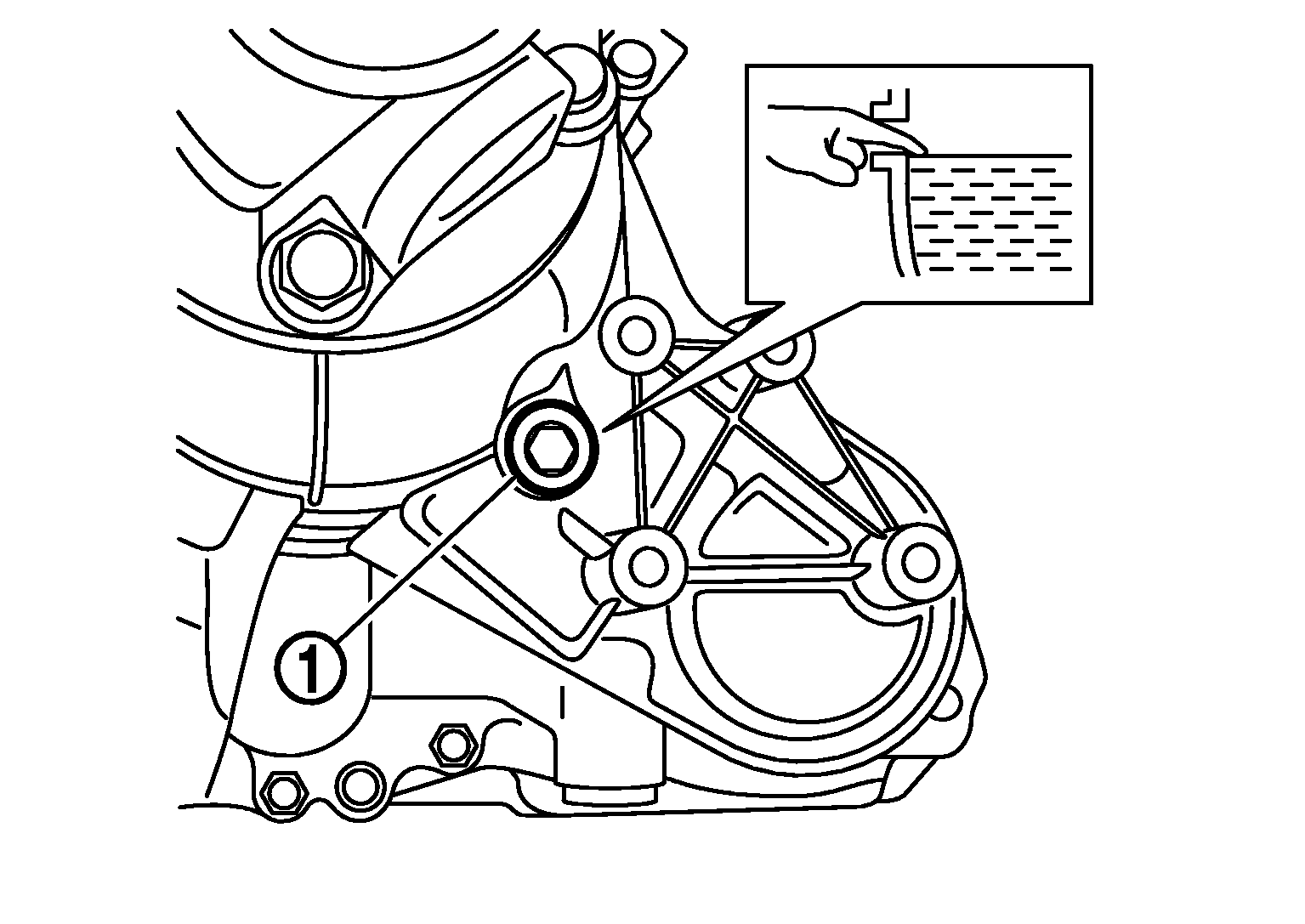

Fig 1: Checking Transfer Fluid Level From Mounting Hole
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Carefully fill the fluid. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque. Refer to "EXPLODED VIEW ".

CAUTION: Never reuse gasket.
