Front Drive Shaft And Drive Chain: Assembly

  1. Install plug to front drive shaft.
    CAUTION: Never reuse plug.
  2. Install front drive shaft front bearing with the drift (A) [SST: ST33200000 (J-26082)].

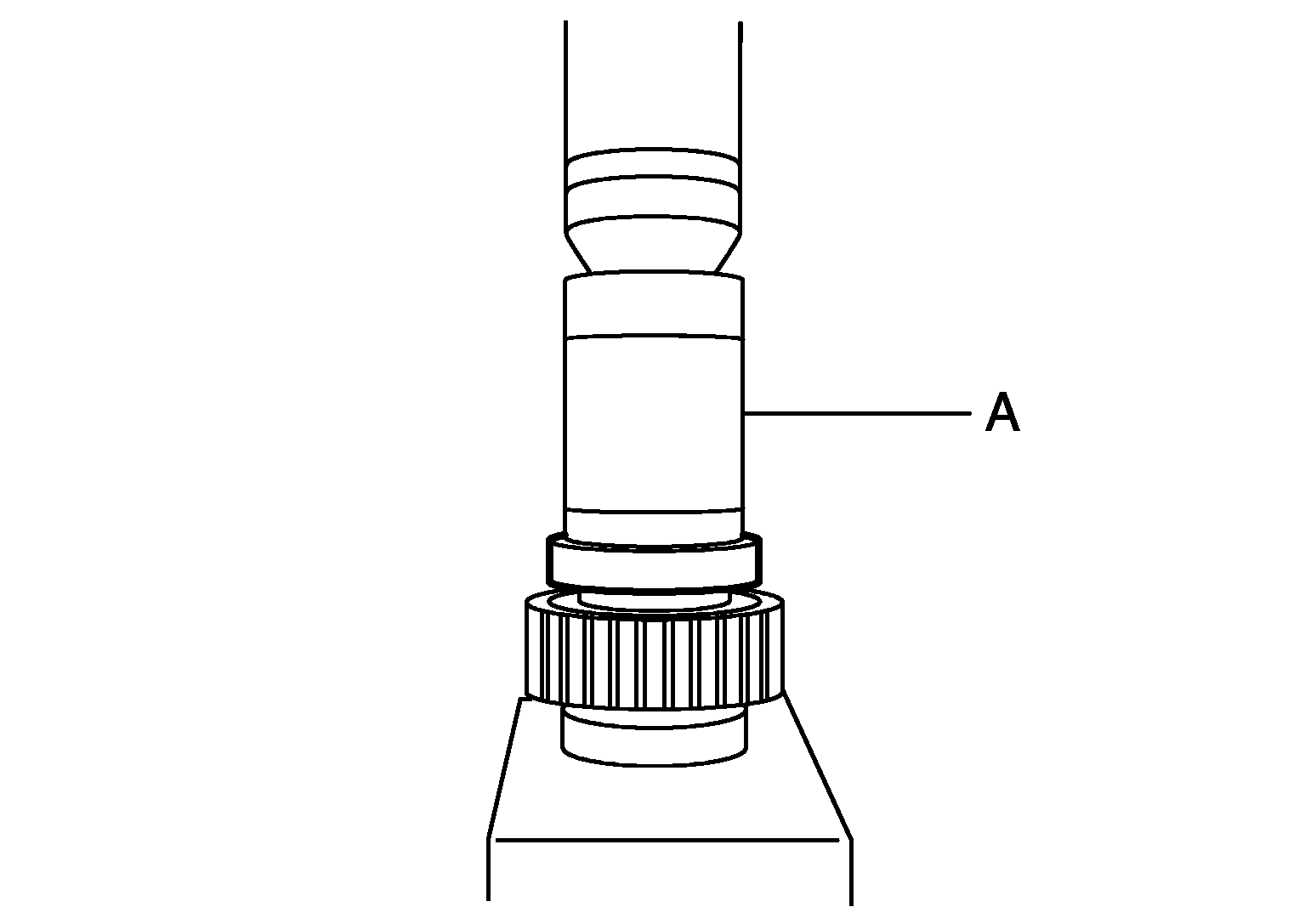

    Fig 1: Identifying Front Drive Shaft Front Bearing With SST
    G05979454Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install front drive shaft rear bearing with the drift (A) [SST: KV38104010 (-)].

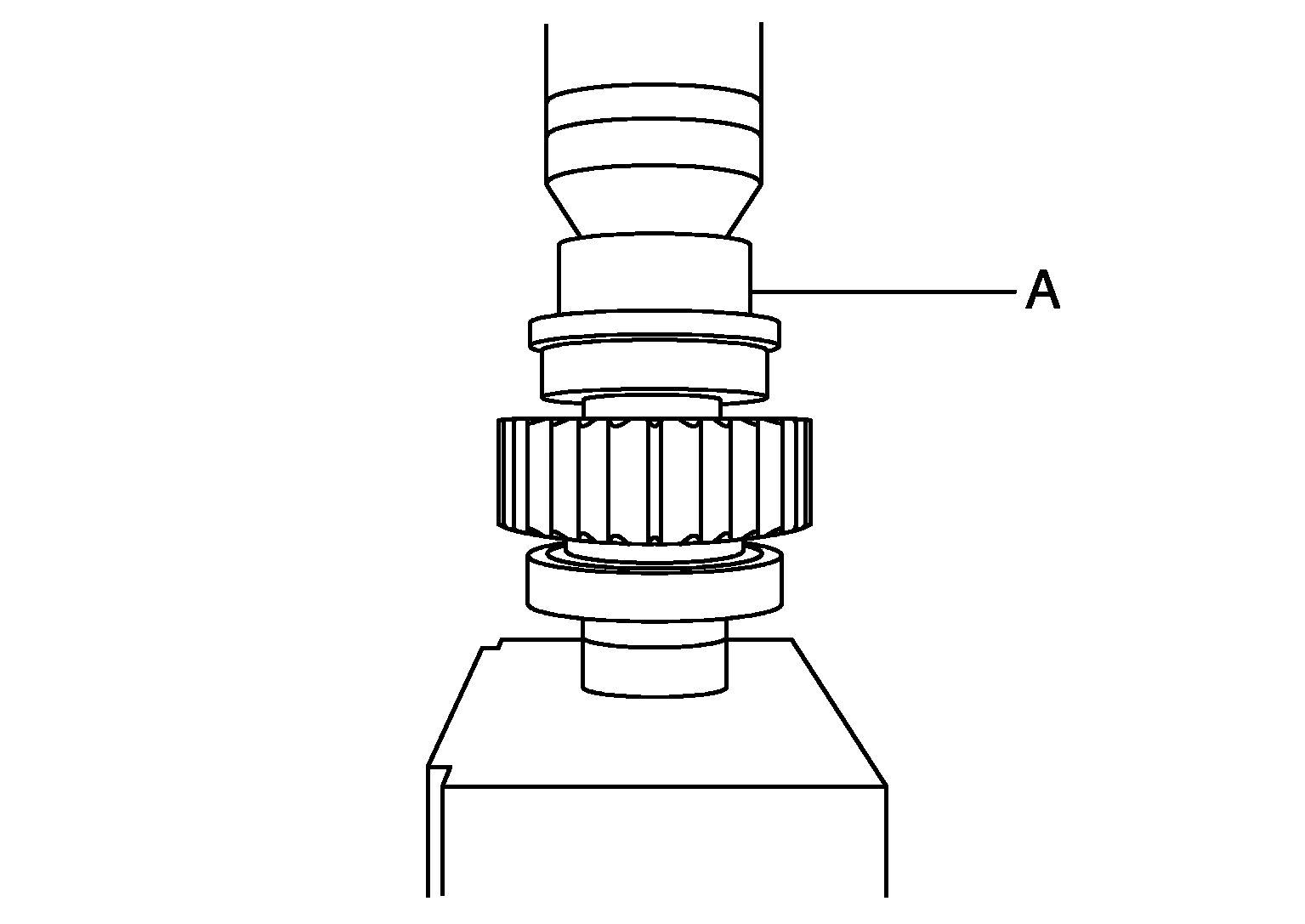

    Fig 2: Identifying Front Drive Shaft Rear Bearing With SST
    G05979455Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Set drive chain to front drive shaft.
    CAUTION: Identification mark (A) of drive chain should be in the side of front bearing (1) of front drive shaft.
  5. Install drive chain to main shaft, and then install front drive shaft.
    CAUTION: Never use tools. Always install by hand.
  6. Install front case to rear case. Refer to "ASSEMBLY ".
Fig 3: Identifying Drive Chain Identification Mark And Front Drive Shaft Front Bearing
G05727203Courtesy of NISSAN MOTOR CO., U.S.A.
