Front Drive Shaft And Drive Chain: Disassembly

  1. Separate front case and rear case. Refer to "DISASSEMBLY ".
  2. Remove drive chain and front drive shaft.
    CAUTION: Never use tools. Always remove by hand.
  3. Remove front drive shaft front bearing with the drift (A) and replacer (B).

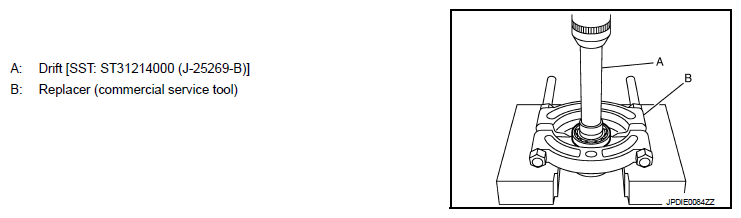

    Fig 1: Locating Front Drive Shaft Front Bearing Drift And Replacer
    G07167257Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove front drive shaft rear bearing with the drift (A) and replacer (B).
  5. Remove plug from front drive shaft.
  6. Perform inspection after disassembly. Refer to "INSPECTION ".

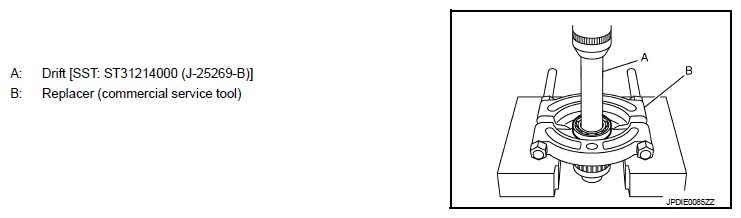

Fig 2: Locating Front Drive Shaft Front Bearing Drift And Replacer
G07167258Courtesy of NISSAN MOTOR CO., U.S.A.
