Removal and Installation

REMOVAL

CAUTION: When removing and installing, use shop cloths to protect parts from damage.
  1. Remove the driver seat (1). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the mounting bolts (A).
  3. Remove driver seat control unit (2).

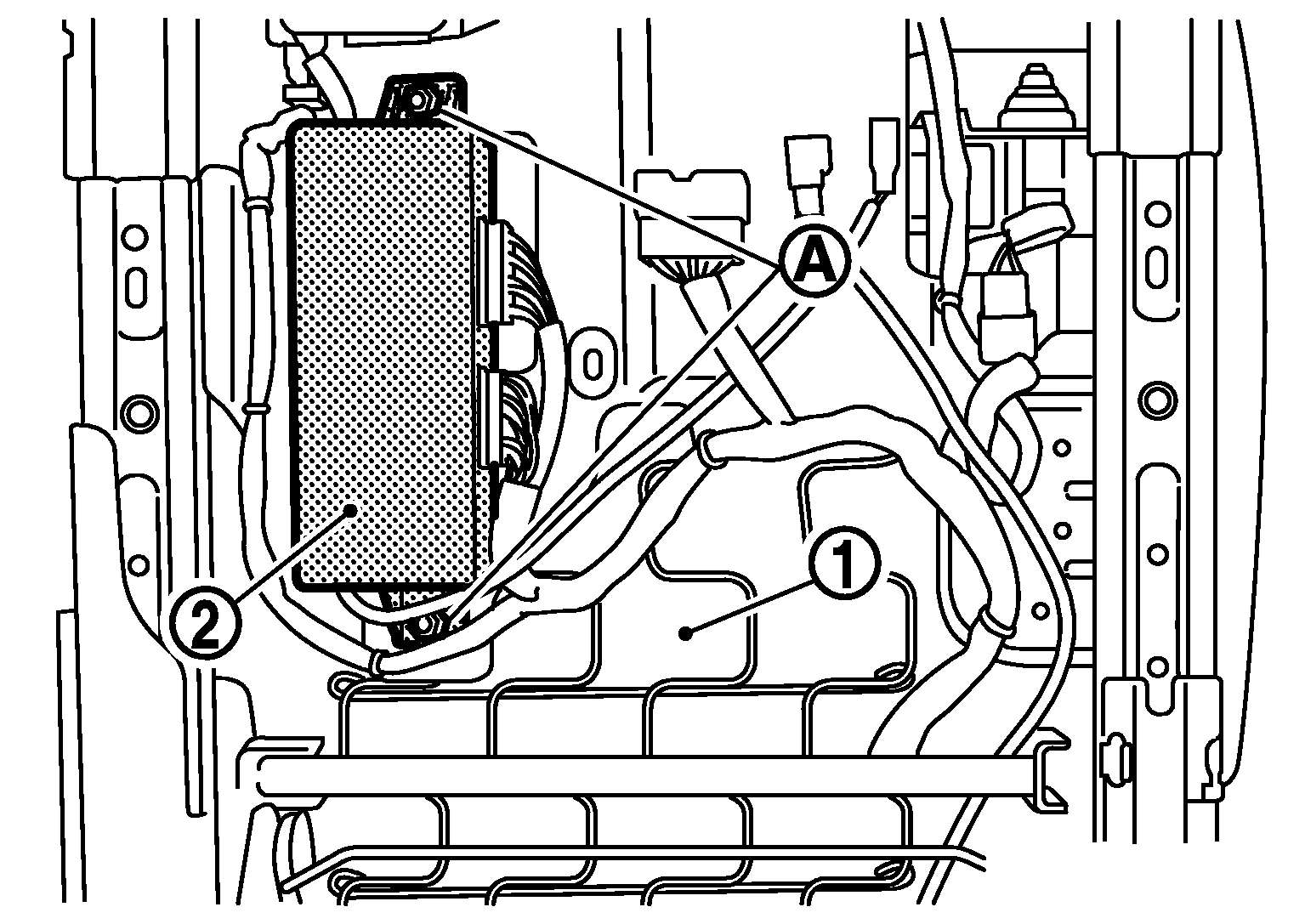

    Fig 1: Identifying Driver Seat Control Unit
    G05728108Courtesy of NISSAN MOTOR CO., U.S.A.
