Section 106 (Interior Lighting System (CROSSCABRIOLET))
>>
System Description
>>
System
>>
Illumination Control System
>>
ILLUMINATION CONTROL SYSTEM : System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ILLUMINATION CONTROL SYSTEM : System Diagram
WARNING:
This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

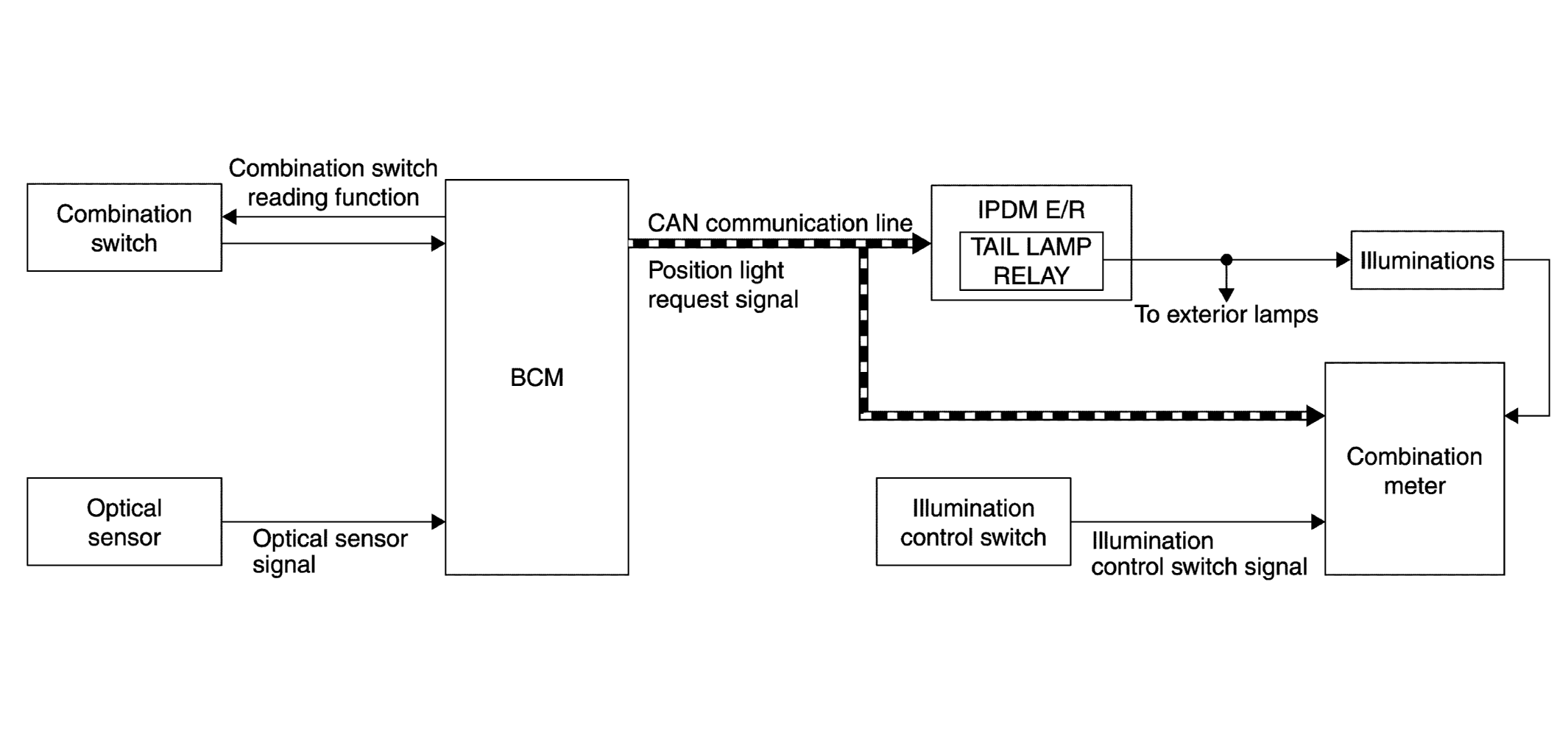

Fig 1: Illumination Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
