Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery cable from the negative terminal.
  2. Remove cowl top cover (RH). Refer to EXPLODED VIEW .
  3. Pull up the IPDM E/R assembly while pressing the pawl (A) on the back of the IPDM E/R cover B (1).

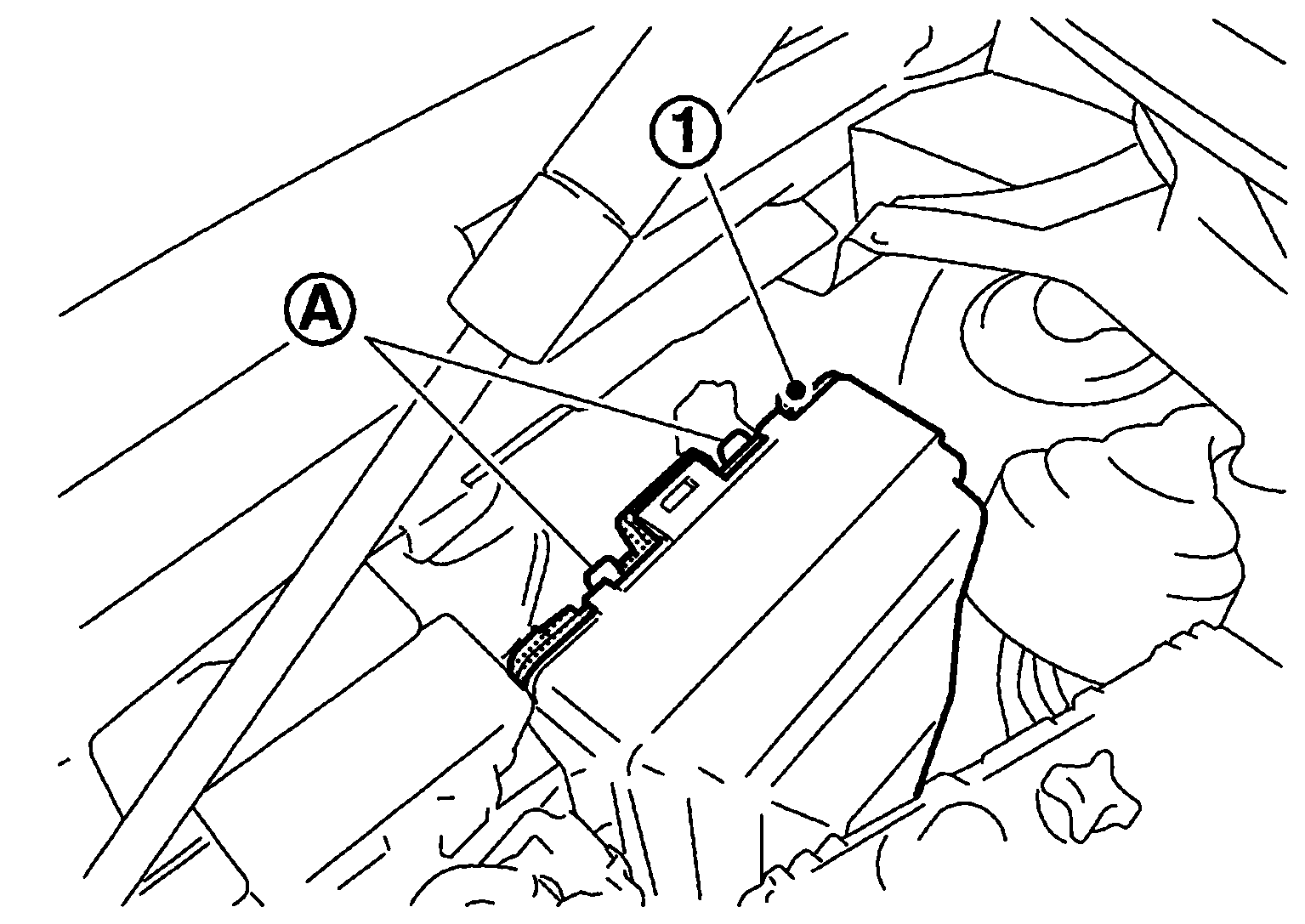

    Fig 1: Identifying Pawl On Back Of IPDM E/R Cover B
    G05730931Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the IPDM E/R cover A while pressing the pawl (A) at the lower end of the IPDM E/R cover A (1).
  5. Disconnect the harness connector and remove IPDM E/R (2).

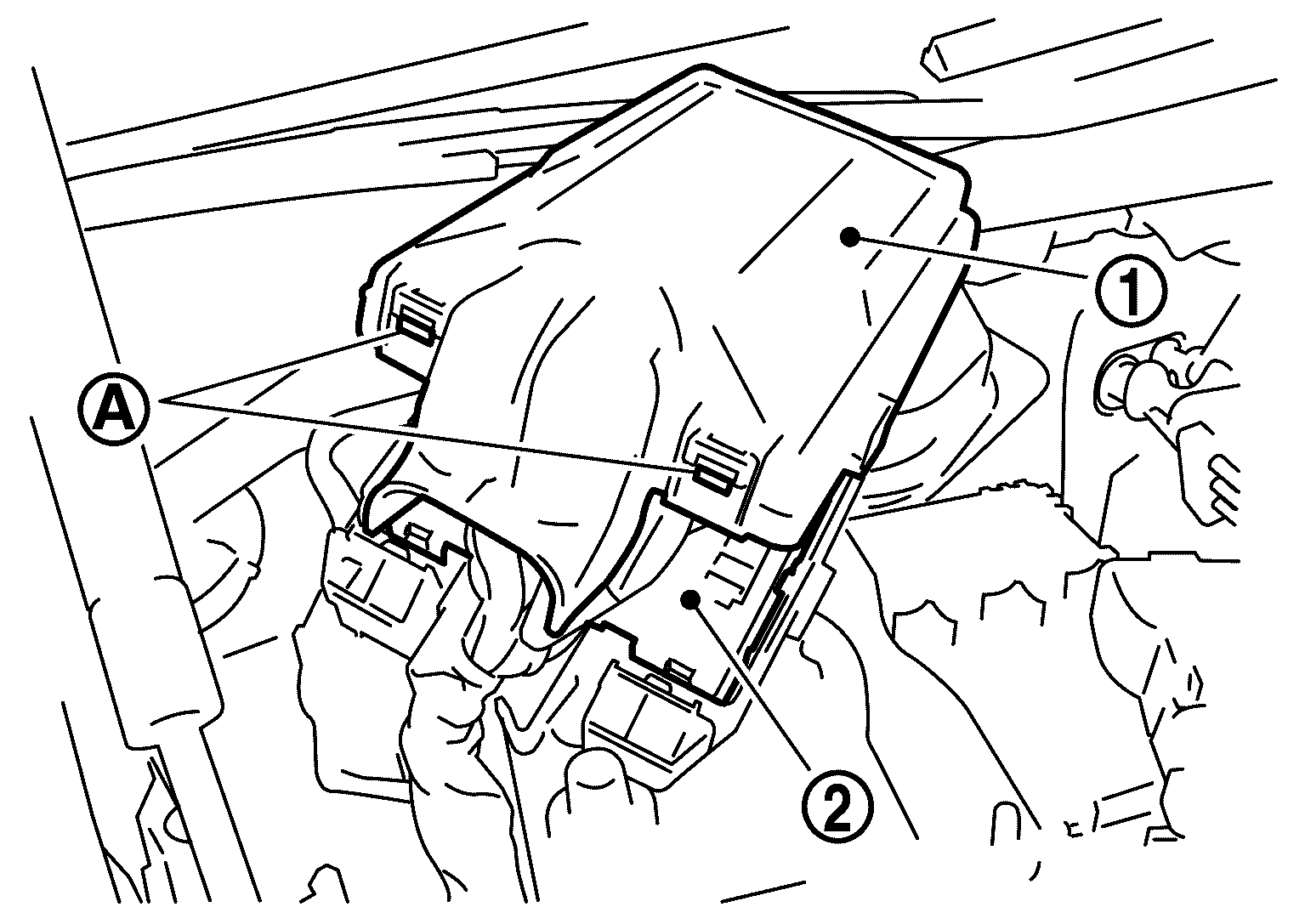

    Fig 2: Identifying Pawl At Lower End Of IPDM E/R Cover A
    G04889516Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the bolt (A) and remove the bracket (1) from the vehicle.
    Fig 3: Identifying IPDM E/R Bracket & Bolt
    G04889517Courtesy of NISSAN MOTOR CO., U.S.A.
