Component Parts Location

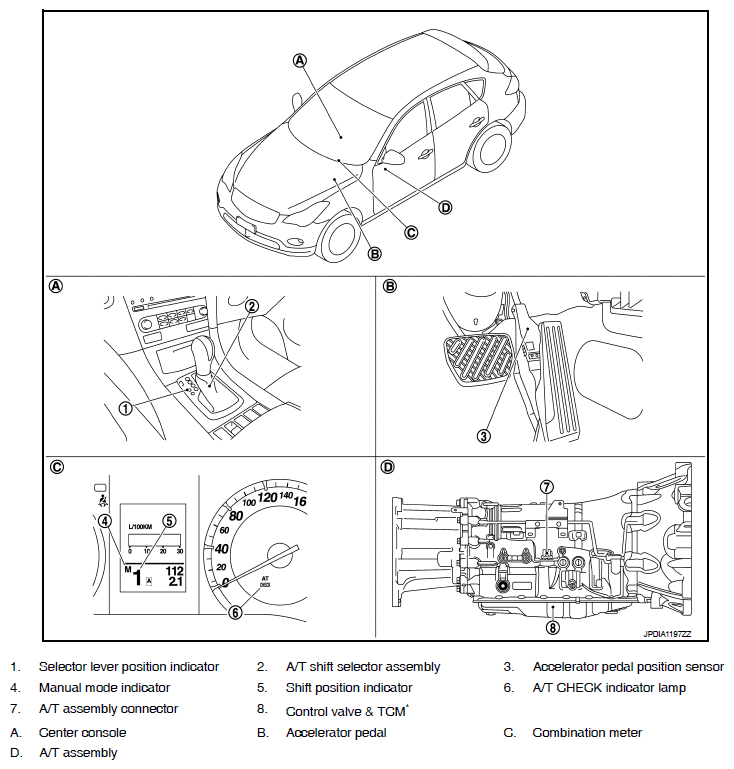

Fig 1: Identifying Line Pressure Control Components Location

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The following components are included in A/T shift selector assembly (2).
- Mode select switch
- Position select switch
- Shift position switch
The following components are included in control valve&TCM (8).
- TCM
- Input speed sensor 1, 2
- Output speed sensor
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
