Direct Clutch: Disassembly

  1. Remove snap rings from direct clutch drum using a flat-bladed screwdriver.
    CAUTION:
    • Be careful not to scratch direct clutch drum and direct clutch retaining plate.
    • Be careful not to damage snap ring.
  2. Remove direct clutch dish plate, direct clutch drive plates, direct clutch driven plates, and direct clutch retaining plate from direct clutch drum.

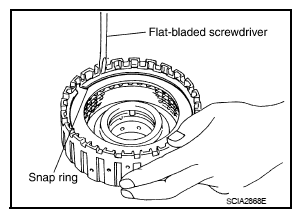

Fig 1: Identifying Snap Ring In High And Low Reverse Clutch Drum
G07165668Courtesy of NISSAN MOTOR CO., U.S.A.
