AWD models

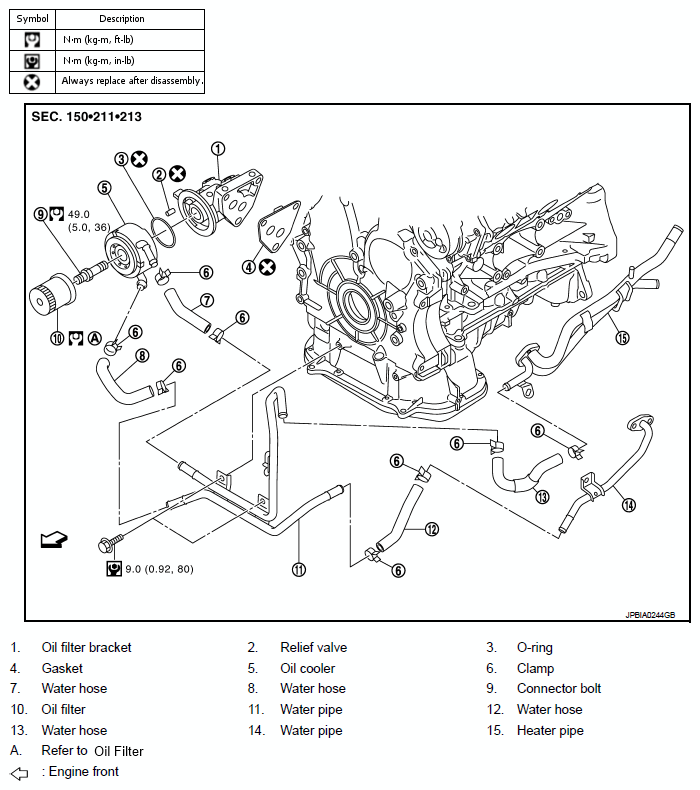

Fig 1: Exploded View Of Oil Cooler - AWD Models With Torque Specifications
G07233338Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
