Component Parts Location

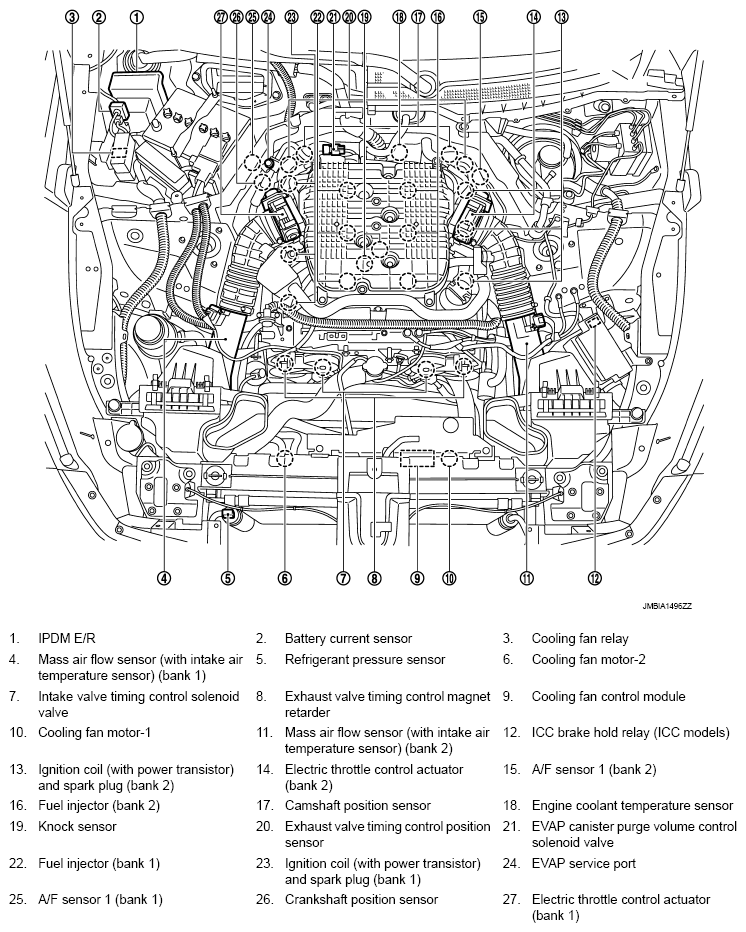

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 20)

G07239922

Courtesy of NISSAN MOTOR CO., U.S.A.

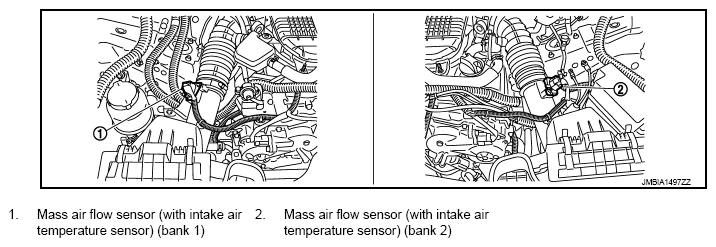

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 20)

G07239923

Courtesy of NISSAN MOTOR CO., U.S.A.

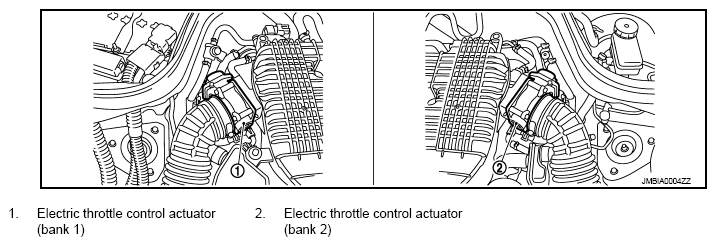

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 20)

G07239924

Courtesy of NISSAN MOTOR CO., U.S.A.

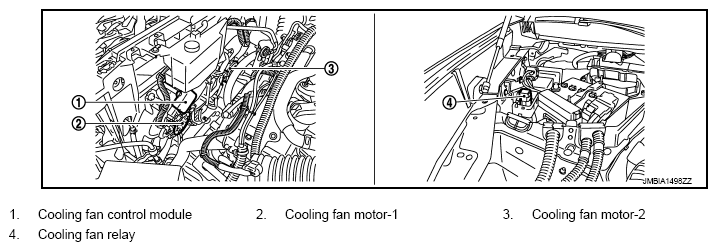

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 20)

G07239925

Courtesy of NISSAN MOTOR CO., U.S.A.

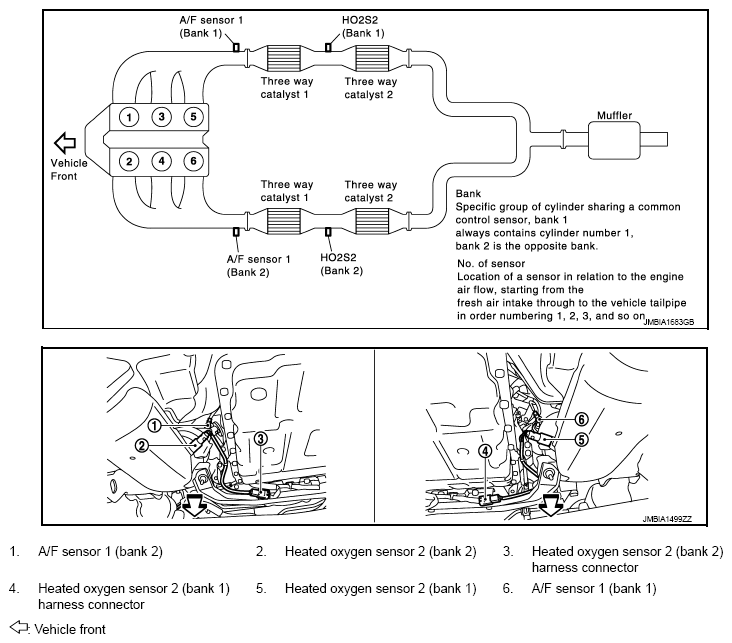

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 20)

G07239926

Courtesy of NISSAN MOTOR CO., U.S.A.

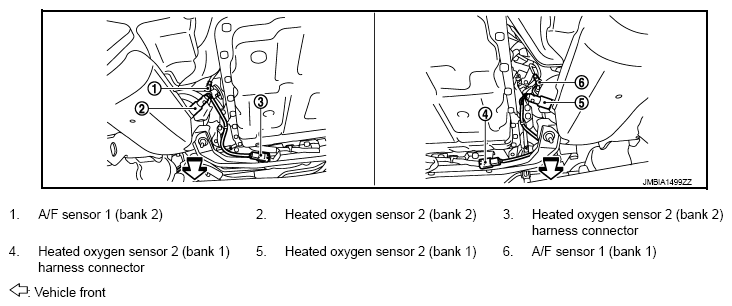

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 20)

G07272937

Courtesy of NISSAN MOTOR CO., U.S.A.

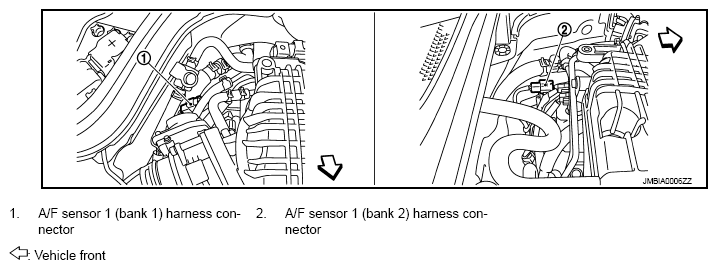

Fig 7: Identifying Air Conditioning Cut Control Component Parts Location (7 Of 20)

G07239927

Courtesy of NISSAN MOTOR CO., U.S.A.

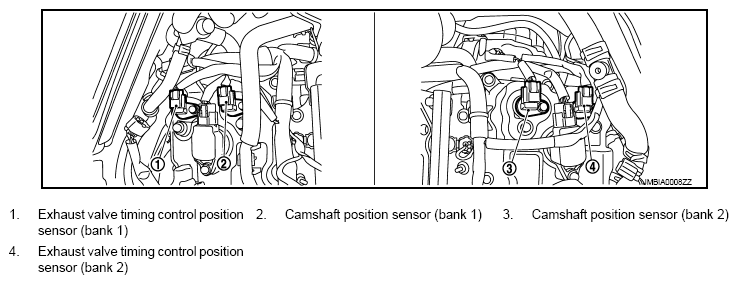

Fig 8: Identifying Air Conditioning Cut Control Component Parts Location (8 Of 20)

G07239928

Courtesy of NISSAN MOTOR CO., U.S.A.

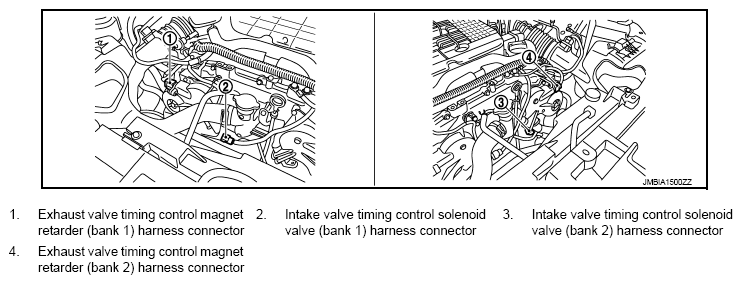

Fig 9: Identifying Air Conditioning Cut Control Component Parts Location (9 Of 20)

G07239929

Courtesy of NISSAN MOTOR CO., U.S.A.

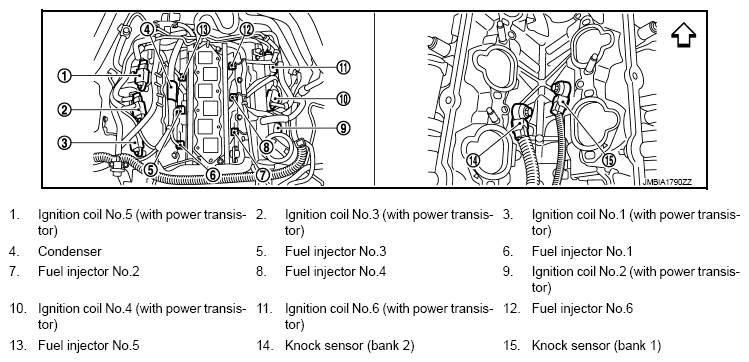

Fig 10: Identifying Air Conditioning Cut Control Component Parts Location (10 Of 20)

G07239930

Courtesy of NISSAN MOTOR CO., U.S.A.

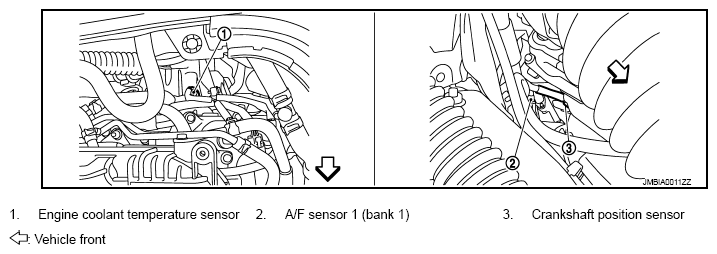

Fig 11: Identifying Air Conditioning Cut Control Component Parts Location (11 Of 20)

G07239931

Courtesy of NISSAN MOTOR CO., U.S.A.

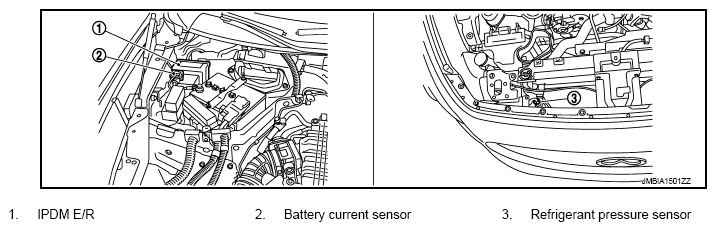

Fig 12: Identifying Air Conditioning Cut Control Component Parts Location (12 Of 20)

G07239932

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Air Conditioning Cut Control Component Parts Location (13 Of 20)

G07239933

Courtesy of NISSAN MOTOR CO., U.S.A.

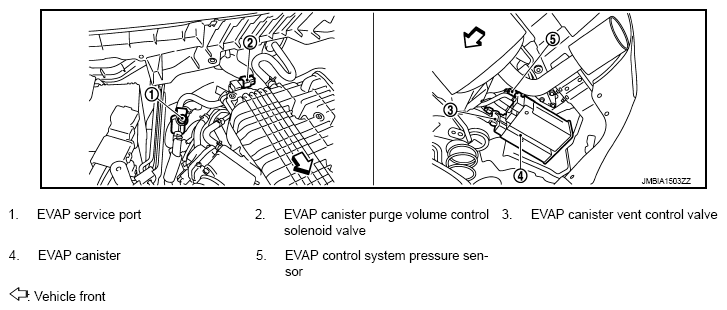

Fig 14: Identifying Air Conditioning Cut Control Component Parts Location (14 Of 20)

G07239934

Courtesy of NISSAN MOTOR CO., U.S.A.

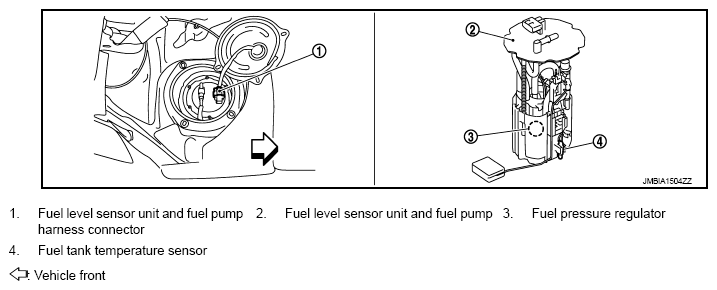

Fig 15: Identifying Air Conditioning Cut Control Component Parts Location (15 Of 20)

G07239935

Courtesy of NISSAN MOTOR CO., U.S.A.

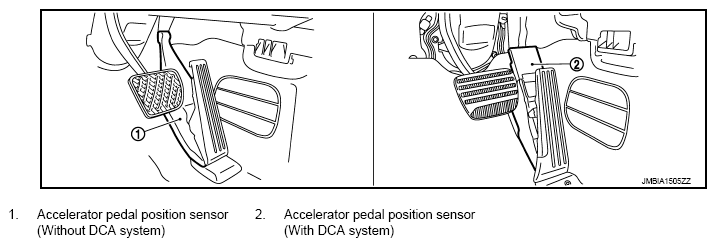

Fig 16: Identifying Air Conditioning Cut Control Component Parts Location (16 Of 20)

G07239936

Courtesy of NISSAN MOTOR CO., U.S.A.

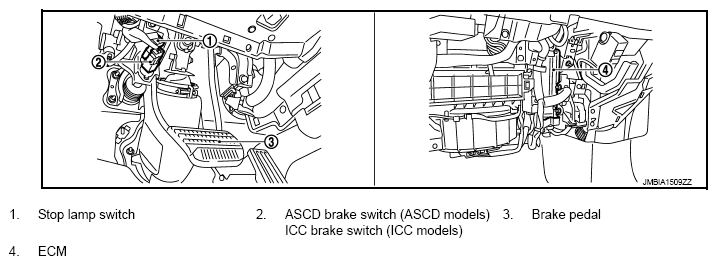

Fig 17: Identifying Air Conditioning Cut Control Component Parts Location (17 Of 20)

G07239937

Courtesy of NISSAN MOTOR CO., U.S.A.

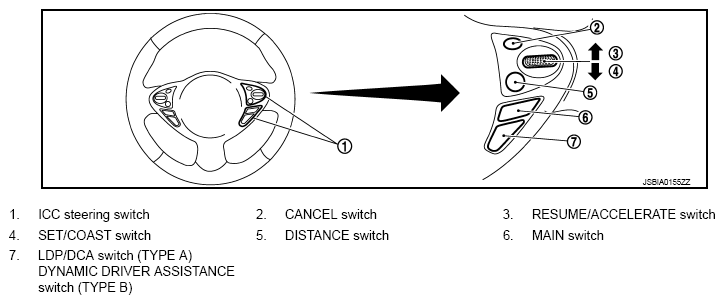

Fig 18: Identifying Air Conditioning Cut Control Component Parts Location (18 Of 20)

G07239938

Courtesy of NISSAN MOTOR CO., U.S.A.

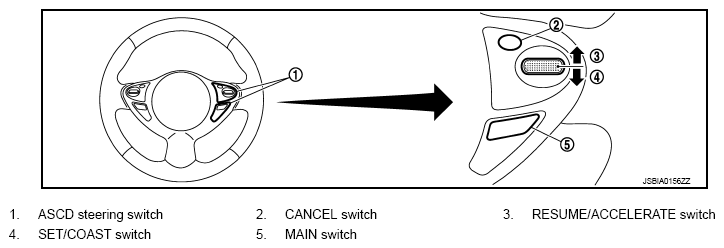

Fig 19: Identifying Air Conditioning Cut Control Component Parts Location (19 Of 20)

G07239939

Courtesy of NISSAN MOTOR CO., U.S.A.

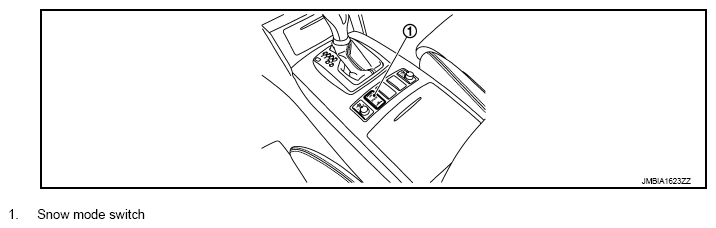

Fig 20: Identifying Air Conditioning Cut Control Component Parts Location (20 Of 20)

G07239940

Courtesy of NISSAN MOTOR CO., U.S.A.
