Component Parts Location

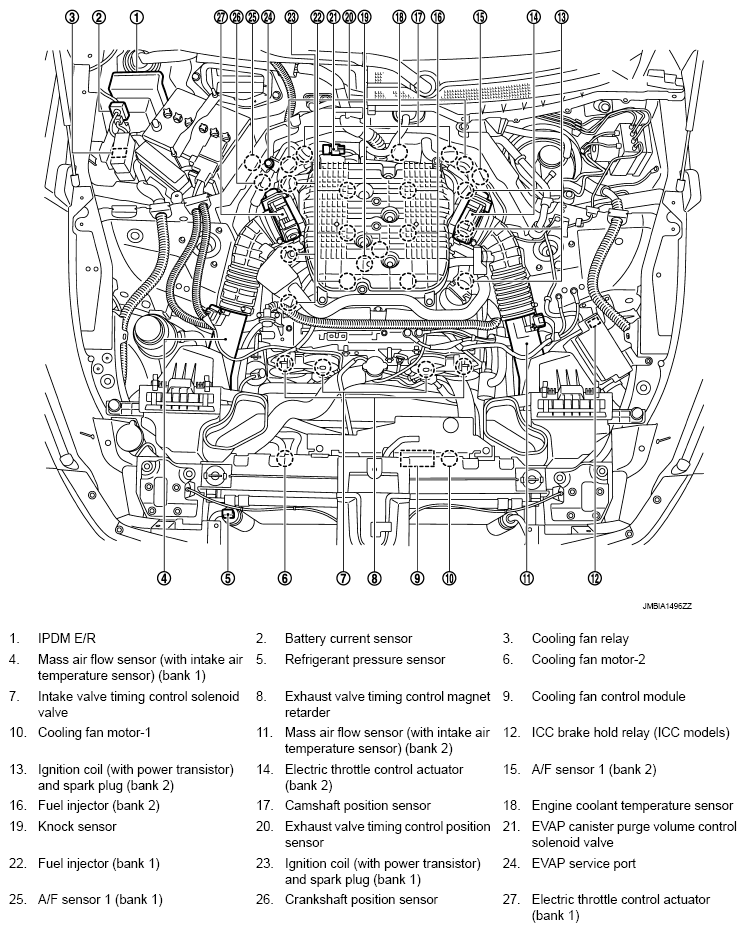

Fig 1: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (1 Of 20)

G07239942

Courtesy of NISSAN MOTOR CO., U.S.A.

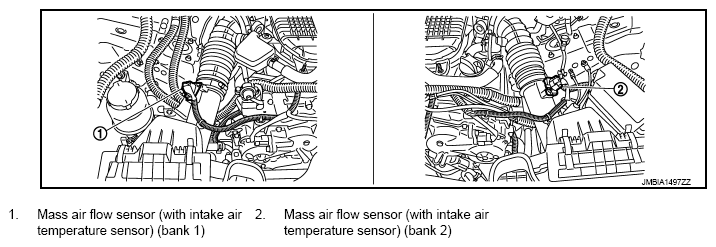

Fig 2: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (2 Of 20)

G07239943

Courtesy of NISSAN MOTOR CO., U.S.A.

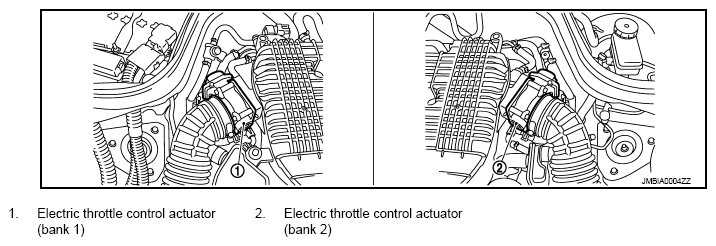

Fig 3: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (3 Of 20)

G07239944

Courtesy of NISSAN MOTOR CO., U.S.A.

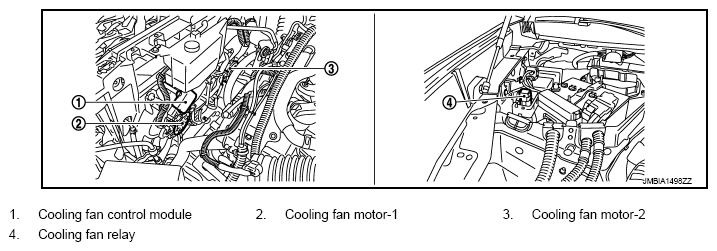

Fig 4: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (4 Of 20)

G07239945

Courtesy of NISSAN MOTOR CO., U.S.A.

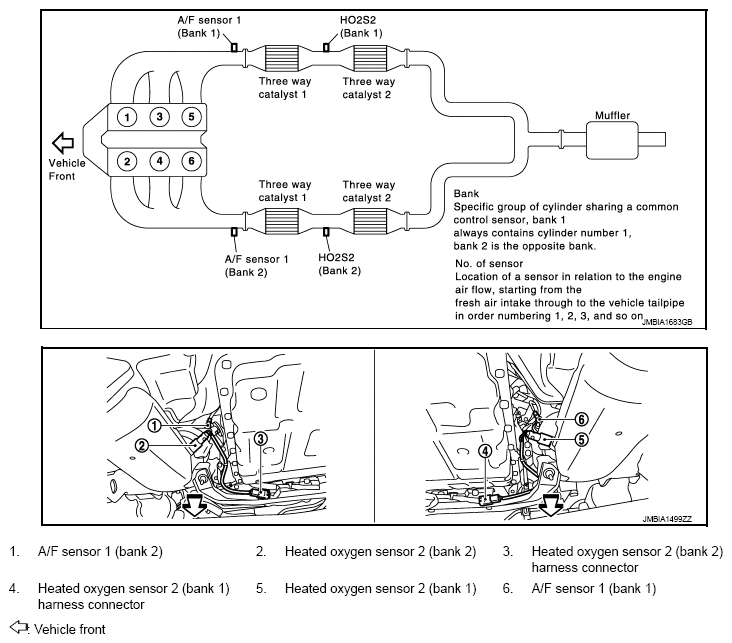

Fig 5: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (5 Of 20)

G07239946

Courtesy of NISSAN MOTOR CO., U.S.A.

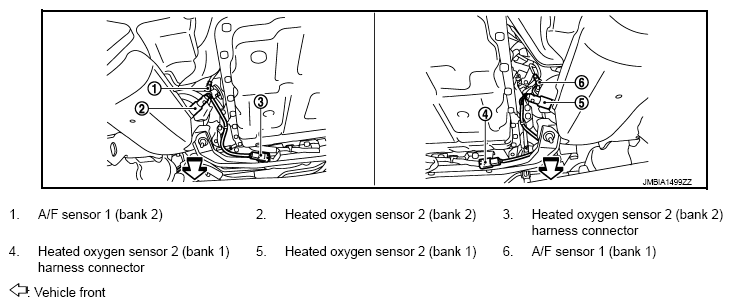

Fig 6: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (6 Of 20)

G07272938

Courtesy of NISSAN MOTOR CO., U.S.A.

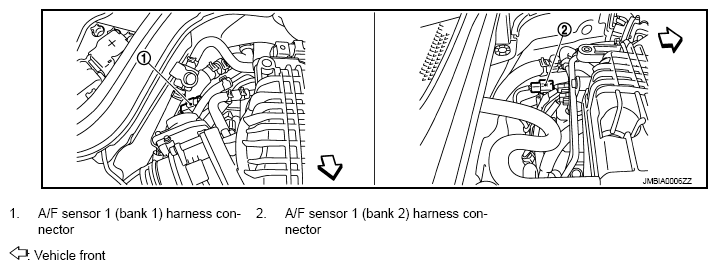

Fig 7: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (7 Of 20)

G07239947

Courtesy of NISSAN MOTOR CO., U.S.A.

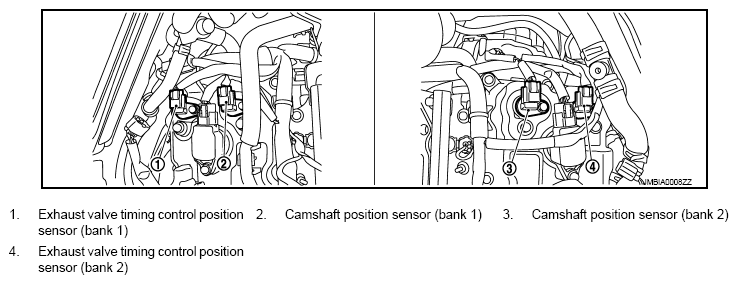

Fig 8: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (8 Of 20)

G07239948

Courtesy of NISSAN MOTOR CO., U.S.A.

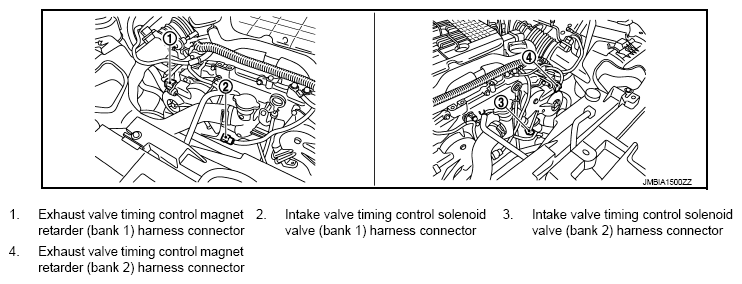

Fig 9: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (9 Of 20)

G07239949

Courtesy of NISSAN MOTOR CO., U.S.A.

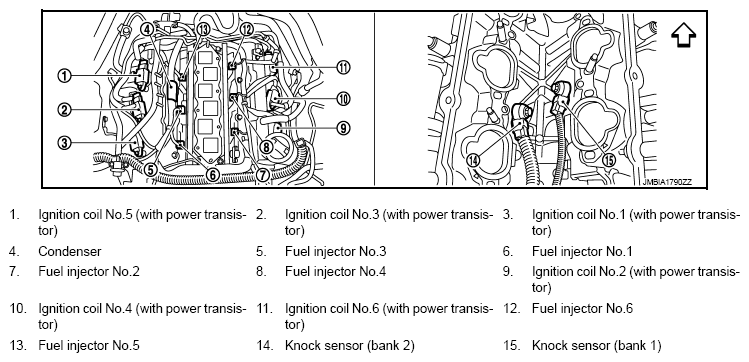

Fig 10: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (10 Of 20)

G07239950

Courtesy of NISSAN MOTOR CO., U.S.A.

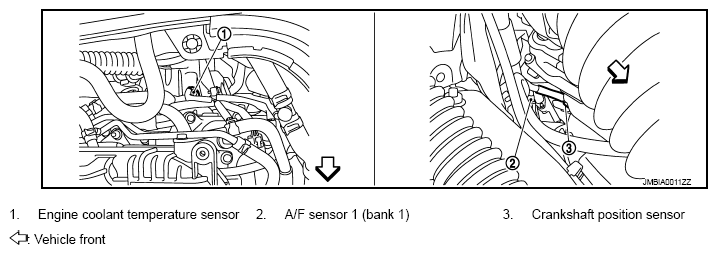

Fig 11: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (11 Of 20)

G07239951

Courtesy of NISSAN MOTOR CO., U.S.A.

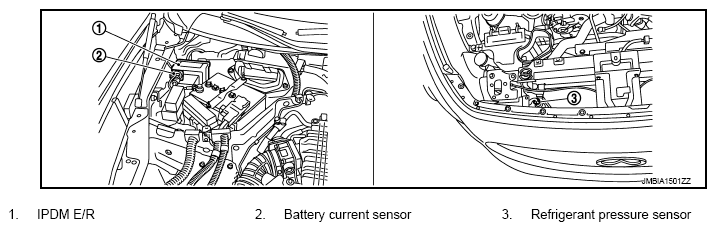

Fig 12: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (12 Of 20)

G07239952

Courtesy of NISSAN MOTOR CO., U.S.A.

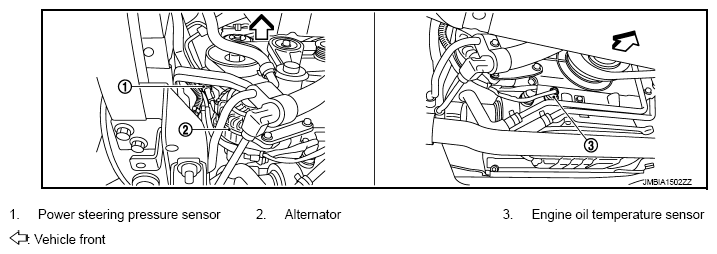

Fig 13: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (13 Of 20)

G07239953

Courtesy of NISSAN MOTOR CO., U.S.A.

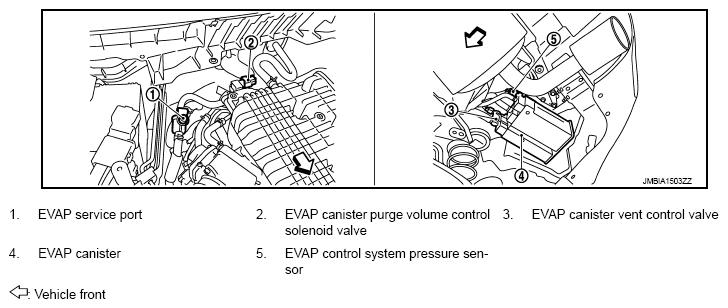

Fig 14: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (14 Of 20)

G07239954

Courtesy of NISSAN MOTOR CO., U.S.A.

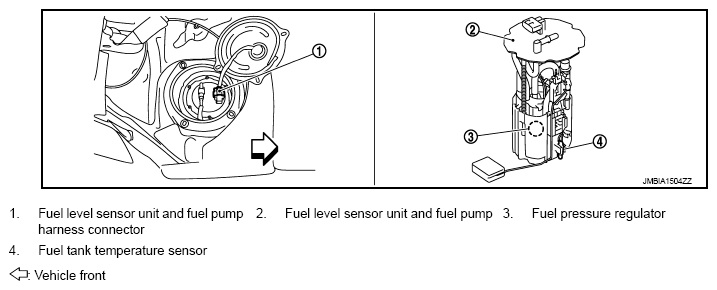

Fig 15: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (15 Of 20)

G07239955

Courtesy of NISSAN MOTOR CO., U.S.A.

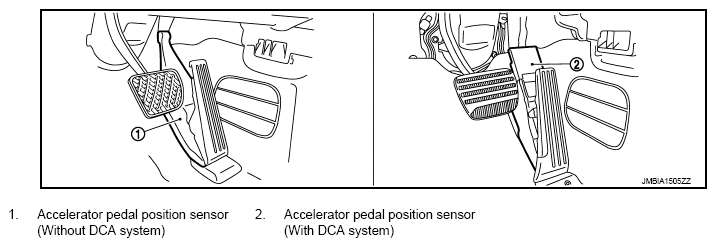

Fig 16: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (16 Of 20)

G07239956

Courtesy of NISSAN MOTOR CO., U.S.A.

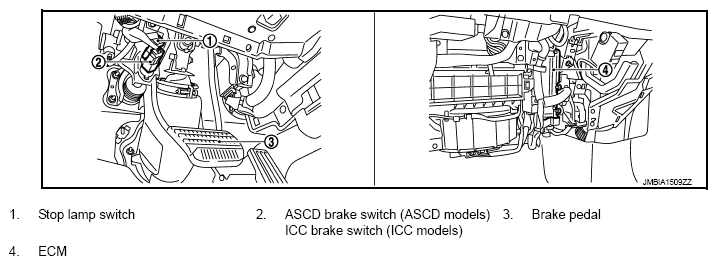

Fig 17: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (17 Of 20)

G07239957

Courtesy of NISSAN MOTOR CO., U.S.A.

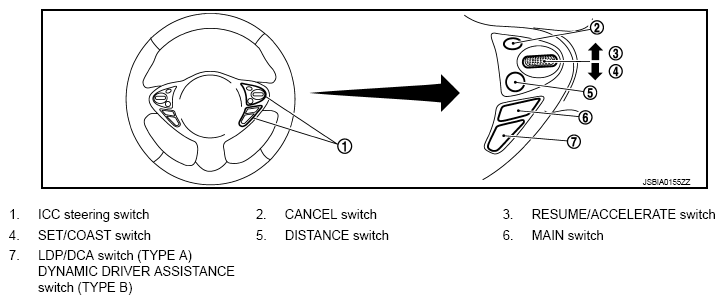

Fig 18: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (18 Of 20)

G07239958

Courtesy of NISSAN MOTOR CO., U.S.A.

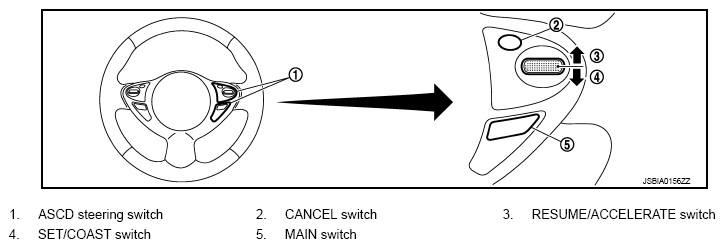

Fig 19: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (19 Of 20)

G07239959

Courtesy of NISSAN MOTOR CO., U.S.A.

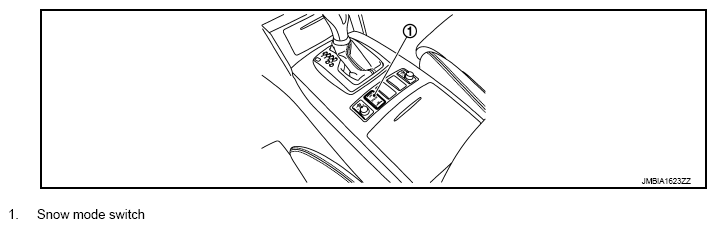

Fig 20: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (20 Of 20)

G07239960

Courtesy of NISSAN MOTOR CO., U.S.A.
