Component Parts Location

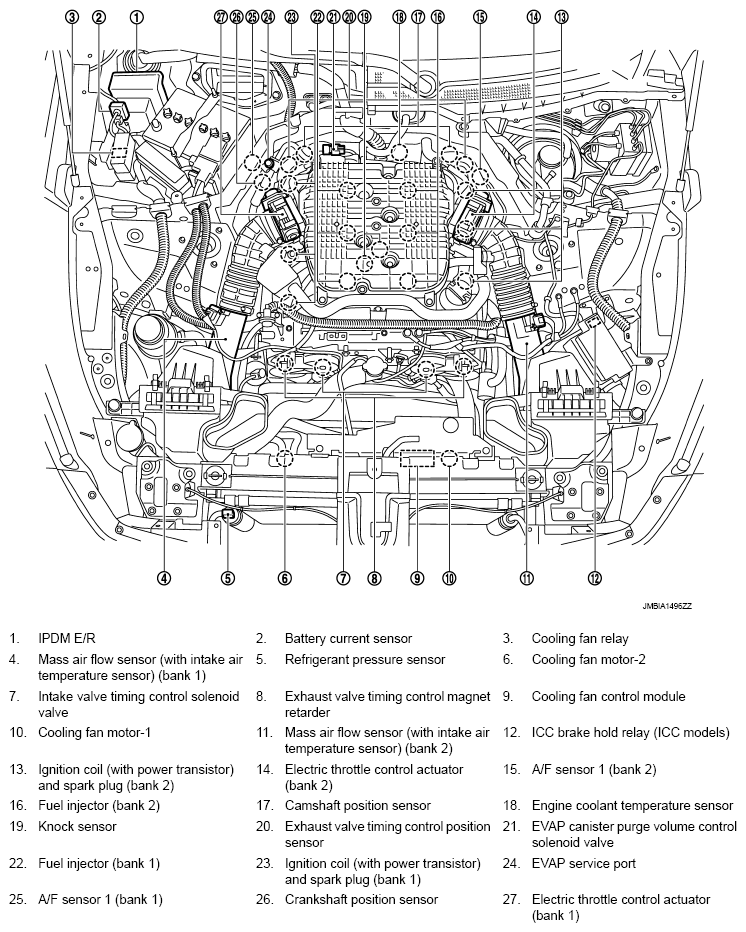

Fig 1: Identifying Cooling Fan Control Component Parts Location (1 Of 20)

G07239962

Courtesy of NISSAN MOTOR CO., U.S.A.

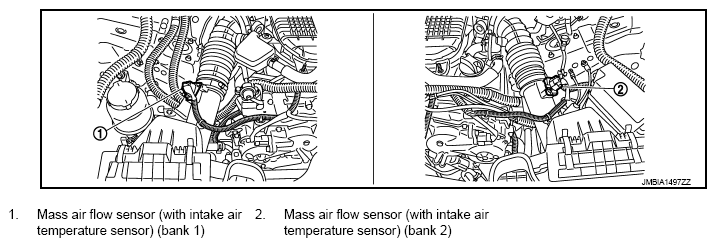

Fig 2: Identifying Cooling Fan Control Component Parts Location (2 Of 20)

G07239963

Courtesy of NISSAN MOTOR CO., U.S.A.

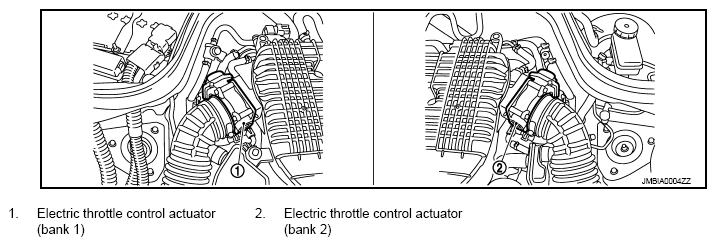

Fig 3: Identifying Cooling Fan Control Component Parts Location (3 Of 20)

G07239964

Courtesy of NISSAN MOTOR CO., U.S.A.

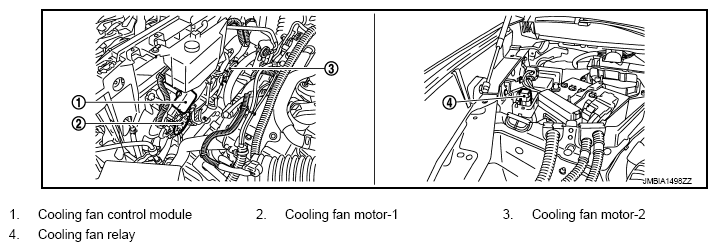

Fig 4: Identifying Cooling Fan Control Component Parts Location (4 Of 20)

G07239965

Courtesy of NISSAN MOTOR CO., U.S.A.

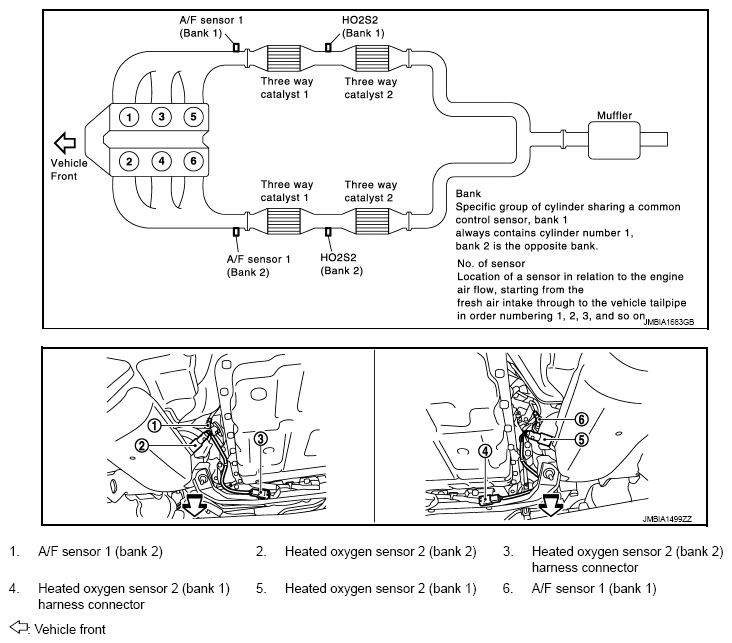

Fig 5: Identifying Cooling Fan Control Component Parts Location (5 Of 20)

G07239966

Courtesy of NISSAN MOTOR CO., U.S.A.

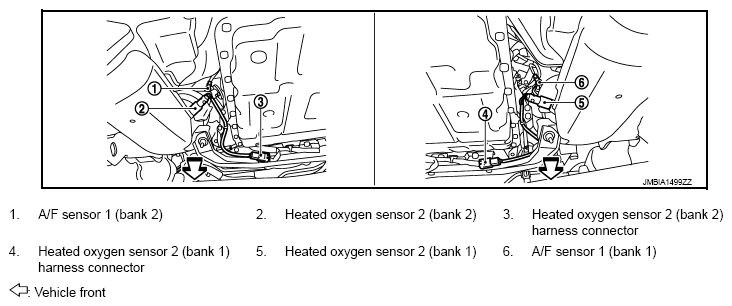

Fig 6: Identifying Cooling Fan Control Component Parts Location (6 Of 20)

G07272939

Courtesy of NISSAN MOTOR CO., U.S.A.

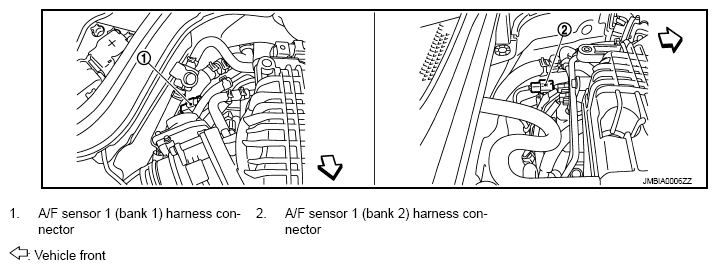

Fig 7: Identifying Cooling Fan Control Component Parts Location (7 Of 20)

G07239967

Courtesy of NISSAN MOTOR CO., U.S.A.

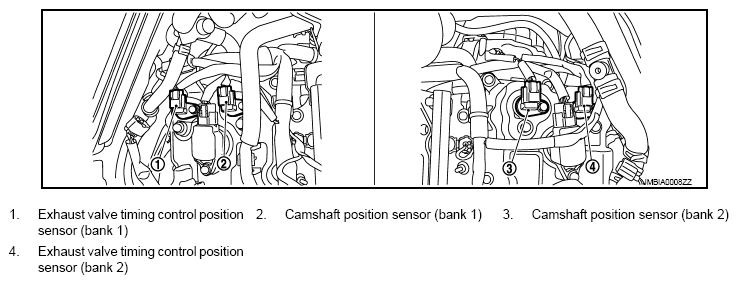

Fig 8: Identifying Cooling Fan Control Component Parts Location (8 Of 20)

G07239968

Courtesy of NISSAN MOTOR CO., U.S.A.

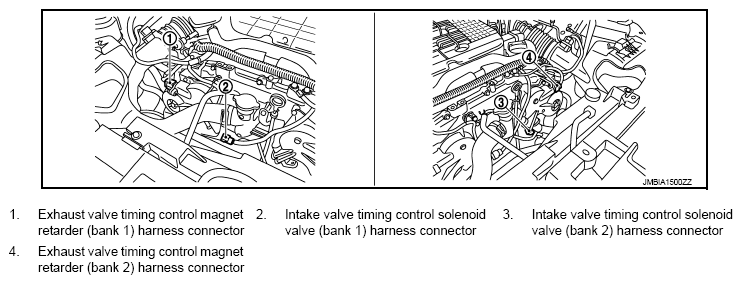

Fig 9: Identifying Cooling Fan Control Component Parts Location (9 Of 20)

G07239969

Courtesy of NISSAN MOTOR CO., U.S.A.

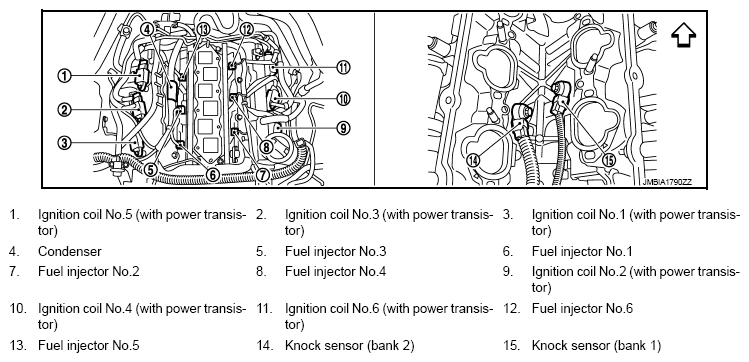

Fig 10: Identifying Cooling Fan Control Component Parts Location (10 Of 20)

G07239970

Courtesy of NISSAN MOTOR CO., U.S.A.

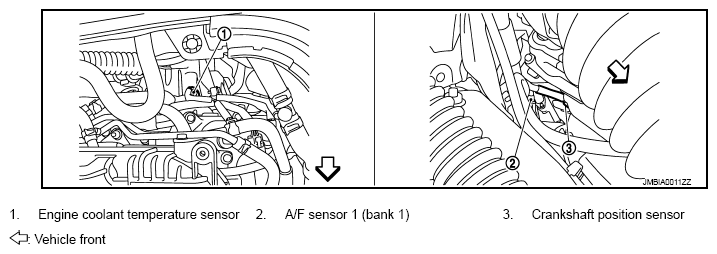

Fig 11: Identifying Cooling Fan Control Component Parts Location (11 Of 20)

G07239971

Courtesy of NISSAN MOTOR CO., U.S.A.

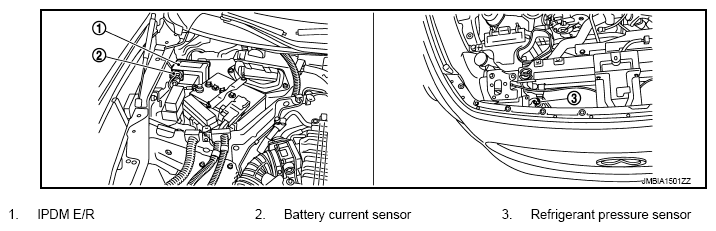

Fig 12: Identifying Cooling Fan Control Component Parts Location (12 Of 20)

G07239972

Courtesy of NISSAN MOTOR CO., U.S.A.

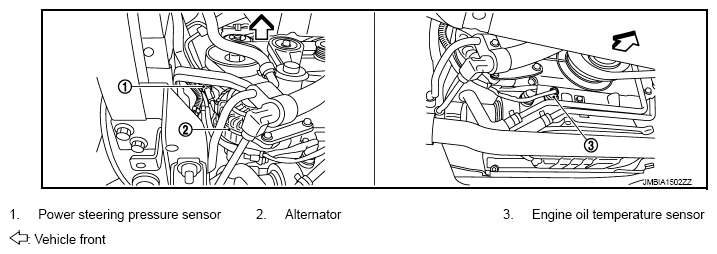

Fig 13: Identifying Cooling Fan Control Component Parts Location (13 Of 20)

G07239973

Courtesy of NISSAN MOTOR CO., U.S.A.

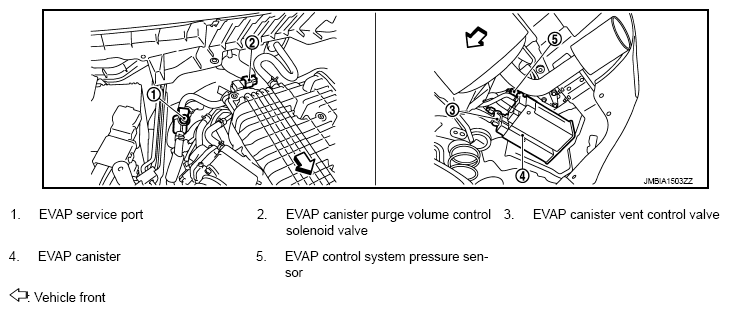

Fig 14: Identifying Cooling Fan Control Component Parts Location (14 Of 20)

G07239974

Courtesy of NISSAN MOTOR CO., U.S.A.

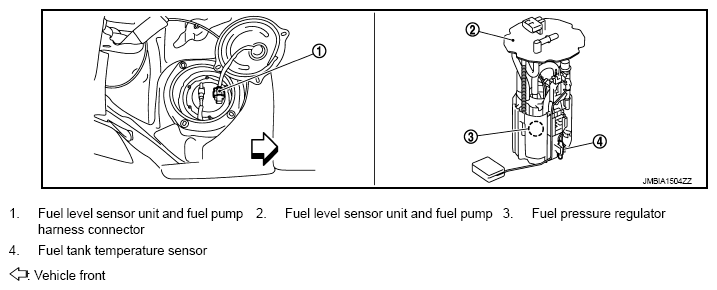

Fig 15: Identifying Cooling Fan Control Component Parts Location (15 Of 20)

G07239975

Courtesy of NISSAN MOTOR CO., U.S.A.

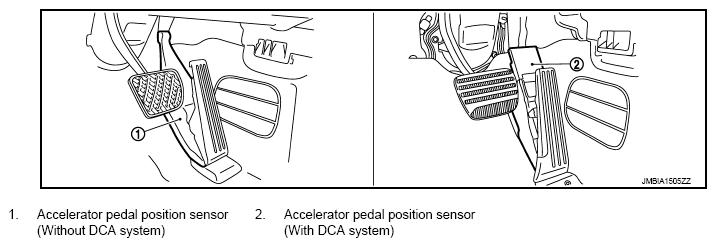

Fig 16: Identifying Cooling Fan Control Component Parts Location (16 Of 20)

G07239976

Courtesy of NISSAN MOTOR CO., U.S.A.

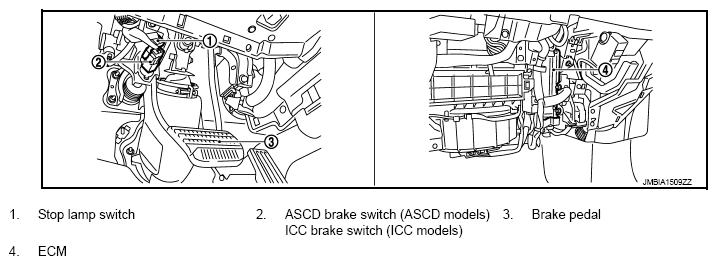

Fig 17: Identifying Cooling Fan Control Component Parts Location (17 Of 20)

G07239977

Courtesy of NISSAN MOTOR CO., U.S.A.

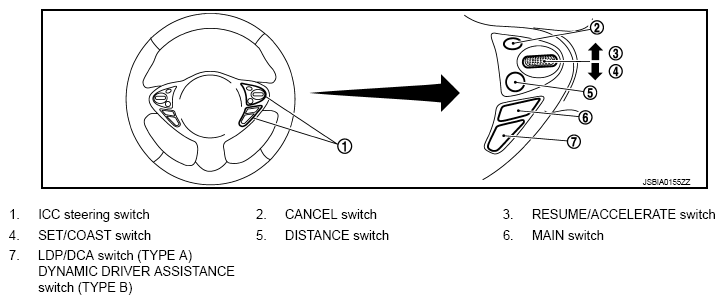

Fig 18: Identifying Cooling Fan Control Component Parts Location (18 Of 20)

G07239978

Courtesy of NISSAN MOTOR CO., U.S.A.

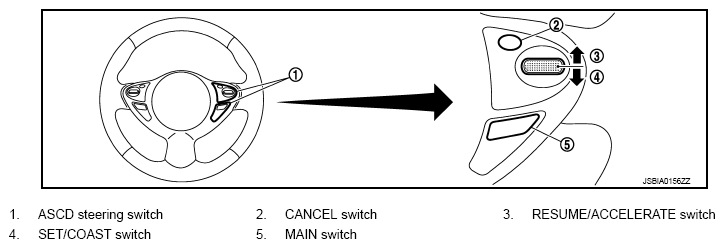

Fig 19: Identifying Cooling Fan Control Component Parts Location (19 Of 20)

G07239979

Courtesy of NISSAN MOTOR CO., U.S.A.

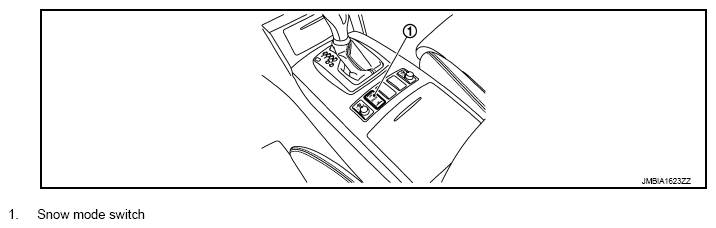

Fig 20: Identifying Cooling Fan Control Component Parts Location (20 Of 20)

G07239980

Courtesy of NISSAN MOTOR CO., U.S.A.
