Component Parts Location

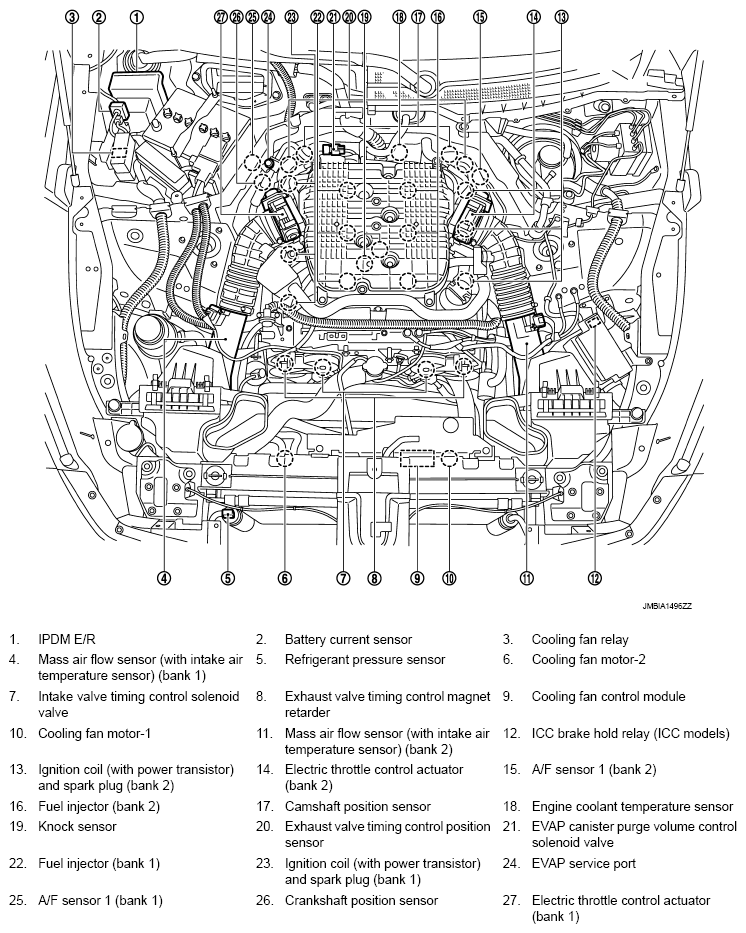

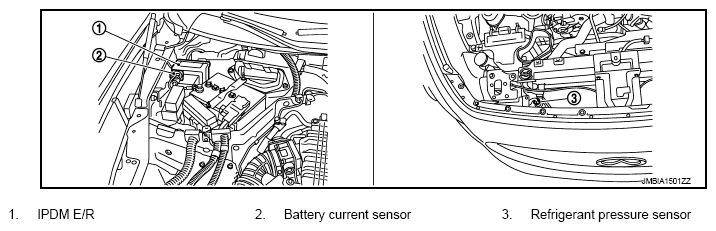

Fig 1: Identifying Electric Ignition System Component Parts Location (1 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

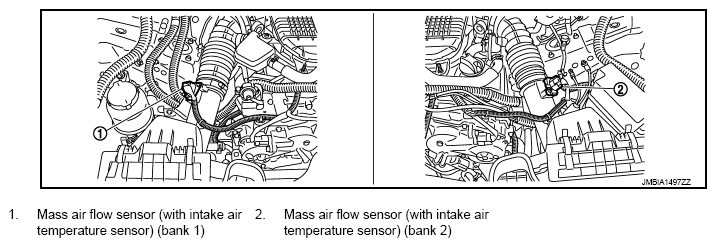

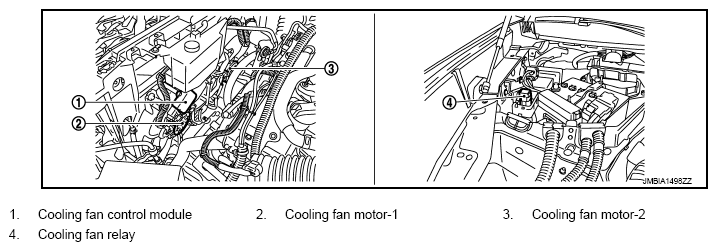

Fig 2: Identifying Electric Ignition System Component Parts Location (2 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

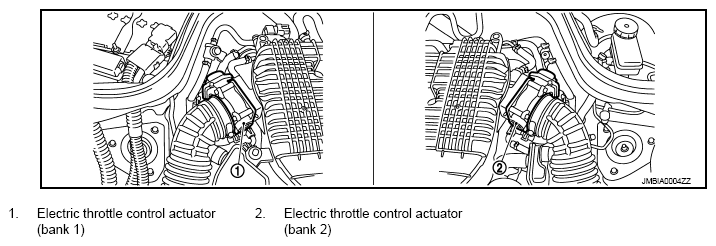

Fig 3: Identifying Electric Ignition System Component Parts Location (3 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Electric Ignition System Component Parts Location (4 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Electric Ignition System Component Parts Location (5 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

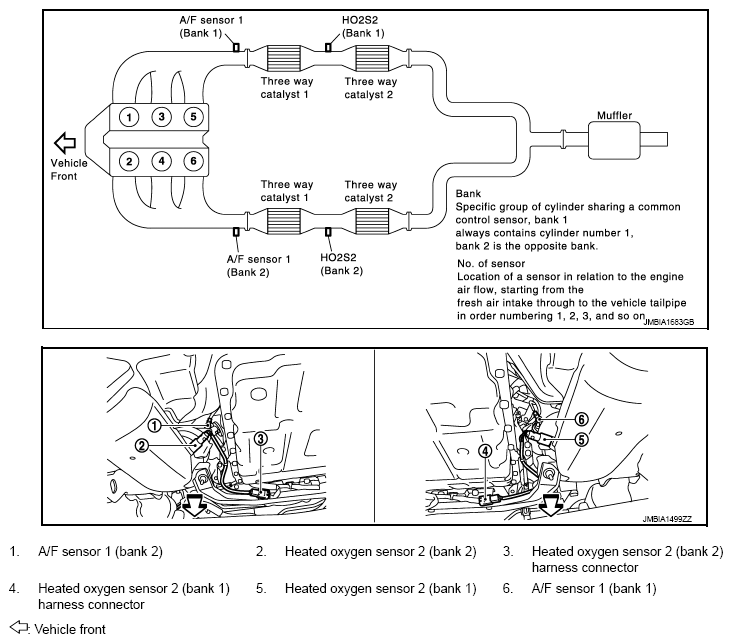

Fig 6: Identifying Electric Ignition System Component Parts Location (6 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

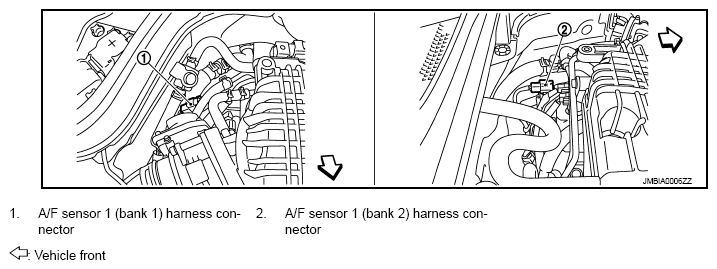

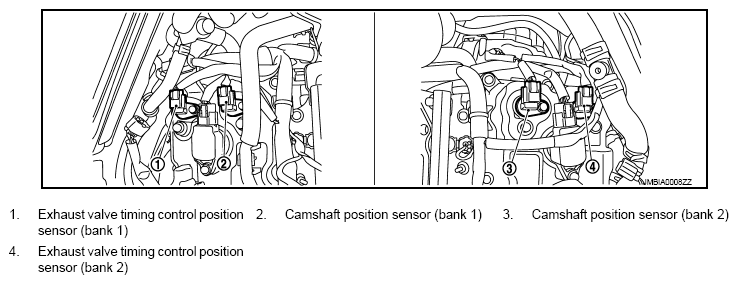

Fig 7: Identifying Electric Ignition System Component Parts Location (7 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

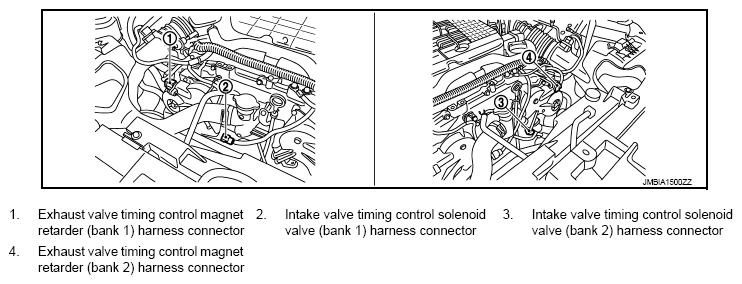

Fig 8: Identifying Electric Ignition System Component Parts Location (8 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

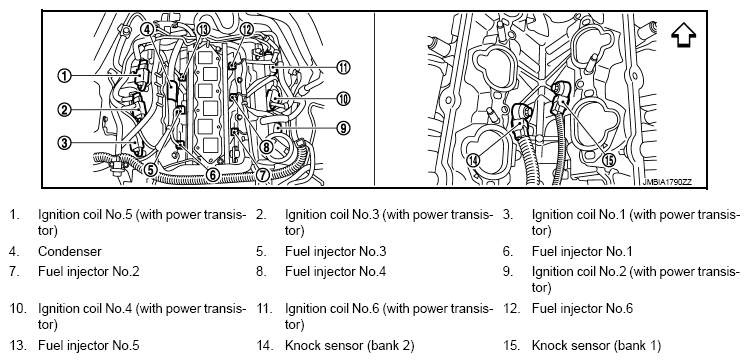

Fig 9: Identifying Electric Ignition System Component Parts Location (9 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Electric Ignition System Component Parts Location (10 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

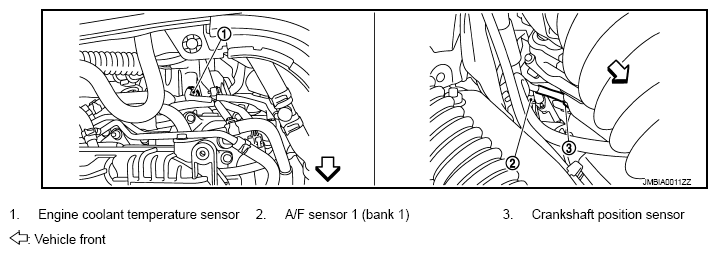

Fig 11: Identifying Electric Ignition System Component Parts Location (11 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

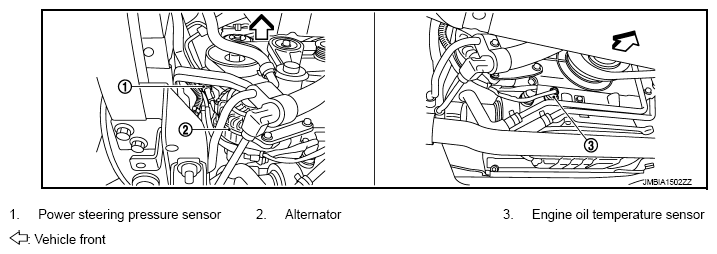

Fig 12: Identifying Electric Ignition System Component Parts Location (12 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Electric Ignition System Component Parts Location (13 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

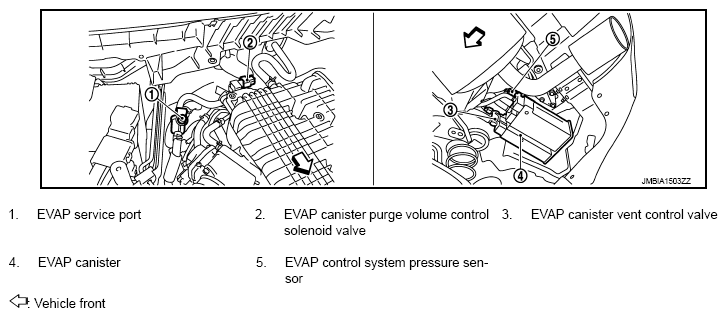

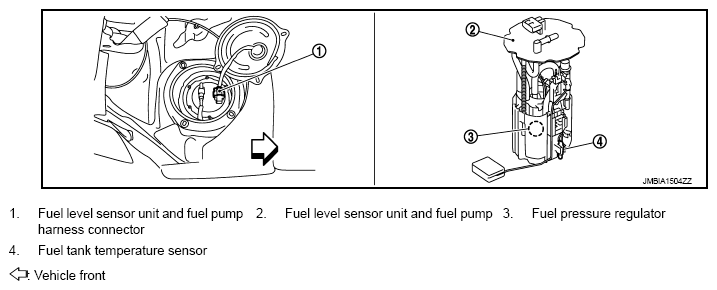

Fig 14: Identifying Electric Ignition System Component Parts Location (14 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Electric Ignition System Component Parts Location (15 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

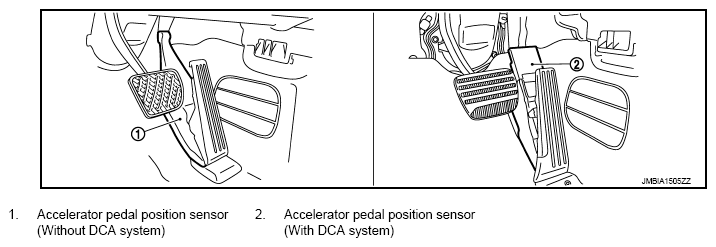

Fig 16: Identifying Electric Ignition System Component Parts Location (16 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

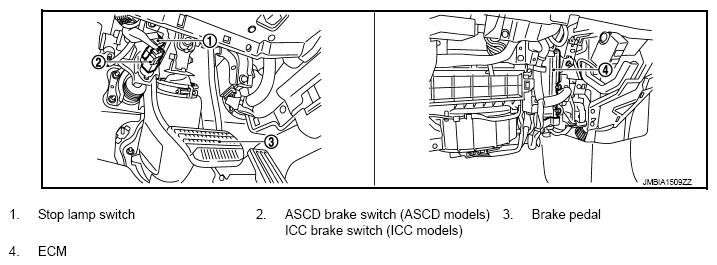

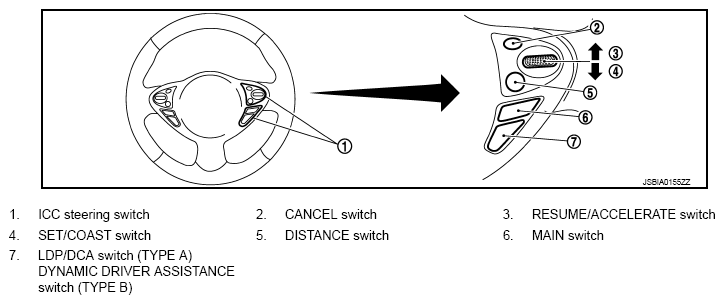

Fig 17: Identifying Electric Ignition System Component Parts Location (17 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Electric Ignition System Component Parts Location (18 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

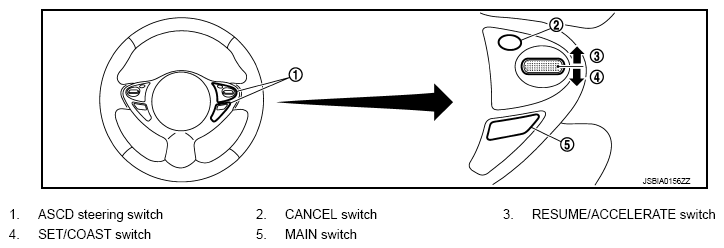

Fig 19: Identifying Electric Ignition System Component Parts Location (19 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

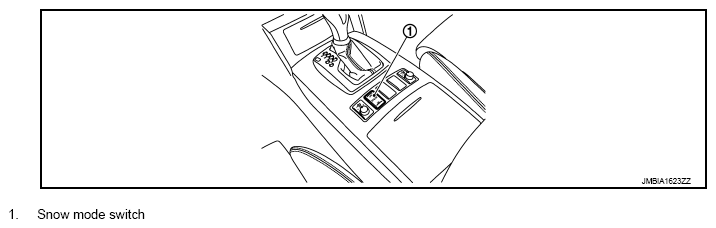

Fig 20: Identifying Electric Ignition System Component Parts Location (20 Of 20)

Courtesy of NISSAN MOTOR CO., U.S.A.

COMPONENT REFERENCE CHART

Component	Reference
Accelerator pedal position sensor	"DESCRIPTION "
Camshaft position sensor	"DESCRIPTION "
Crankshaft position sensor	"DESCRIPTION "
Engine coolant temperature sensor	"DESCRIPTION "
Knock sensor	"DESCRIPTION "
Mass air flow sensor	"TYPE A: DESCRIPTION "
Throttle position sensor	"DESCRIPTION "
