Component Parts Location

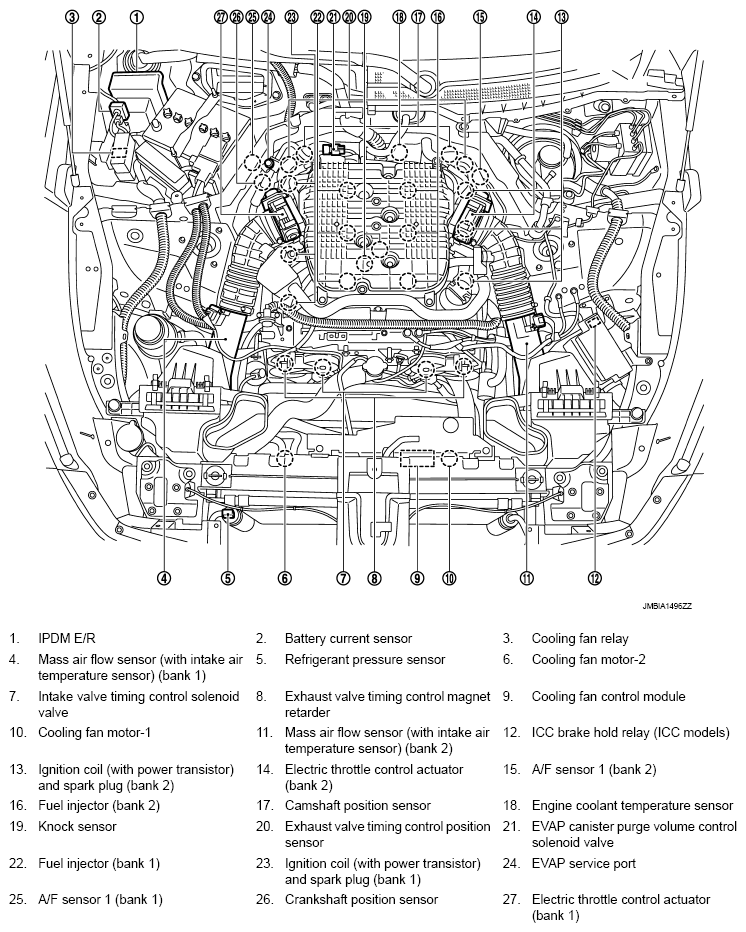

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 20)

G07239860

Courtesy of NISSAN MOTOR CO., U.S.A.

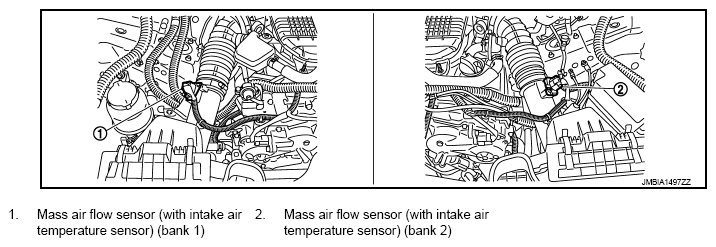

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 20)

G07239861

Courtesy of NISSAN MOTOR CO., U.S.A.

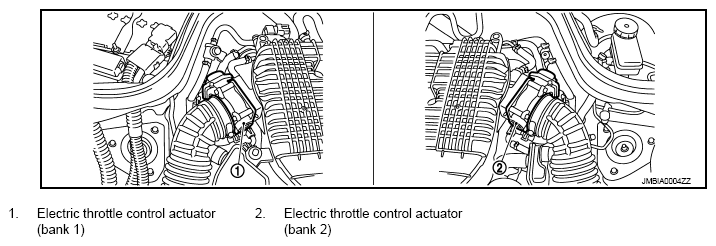

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 20)

G07239862

Courtesy of NISSAN MOTOR CO., U.S.A.

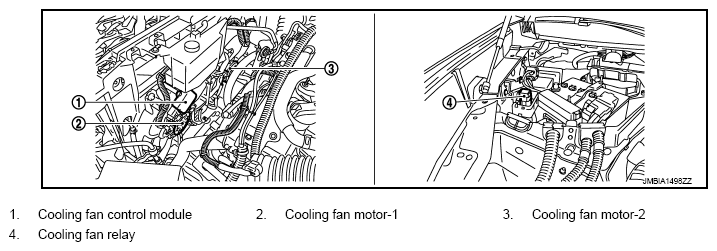

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 20)

G07239863

Courtesy of NISSAN MOTOR CO., U.S.A.

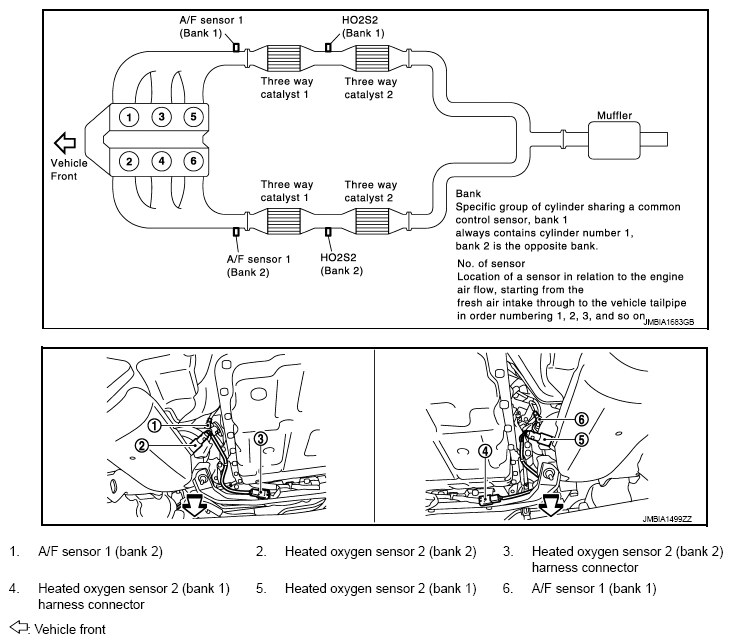

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 20)

G07239864

Courtesy of NISSAN MOTOR CO., U.S.A.

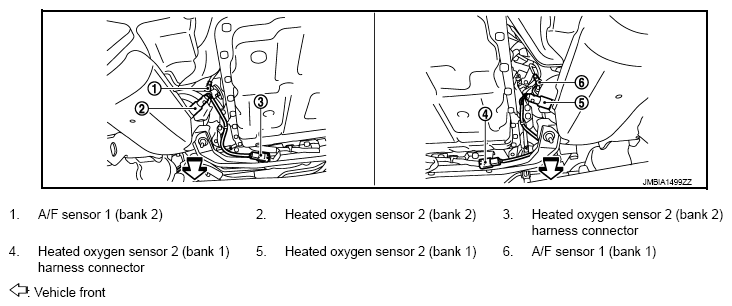

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 20)

G07272934

Courtesy of NISSAN MOTOR CO., U.S.A.

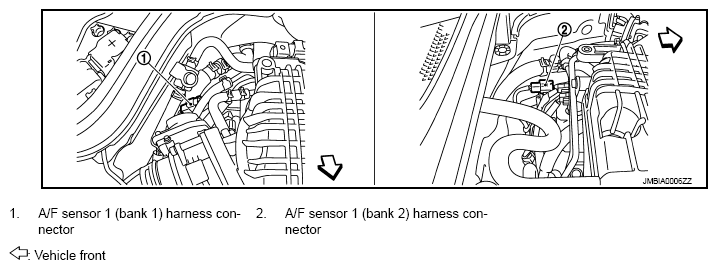

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 20)

G07239865

Courtesy of NISSAN MOTOR CO., U.S.A.

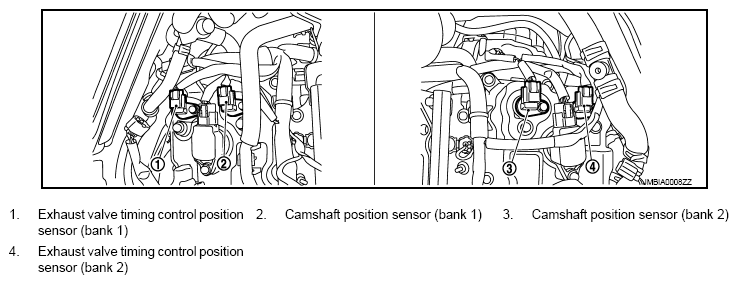

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 20)

G07239866

Courtesy of NISSAN MOTOR CO., U.S.A.

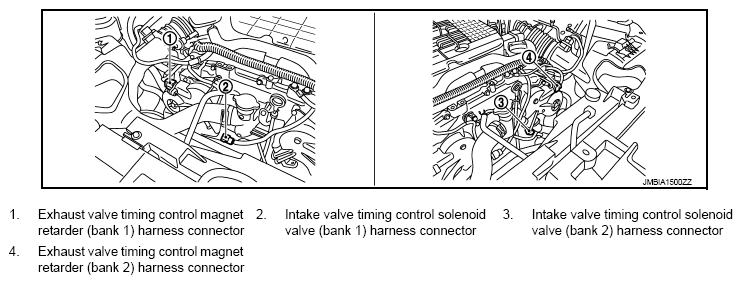

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 20)

G07239867

Courtesy of NISSAN MOTOR CO., U.S.A.

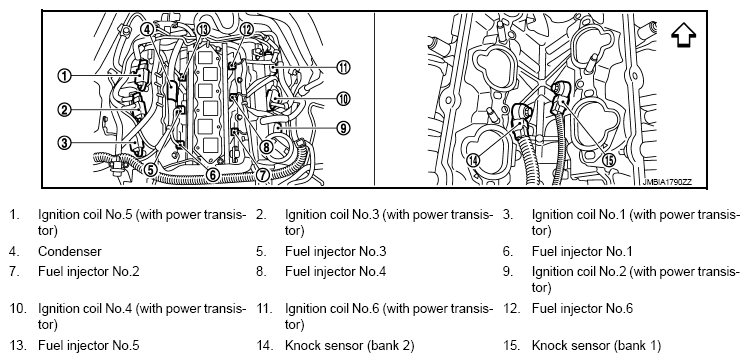

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 20)

G07239868

Courtesy of NISSAN MOTOR CO., U.S.A.

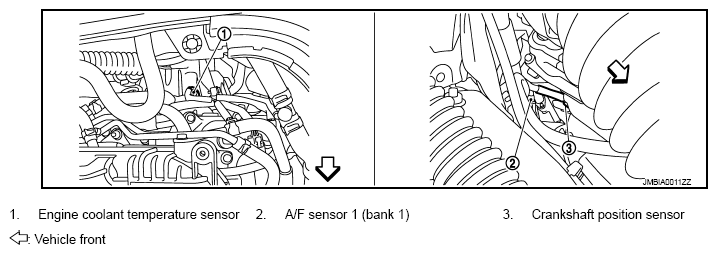

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 20)

G07239869

Courtesy of NISSAN MOTOR CO., U.S.A.

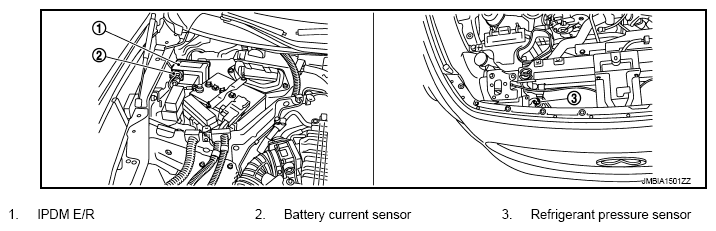

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 20)

G07239870

Courtesy of NISSAN MOTOR CO., U.S.A.

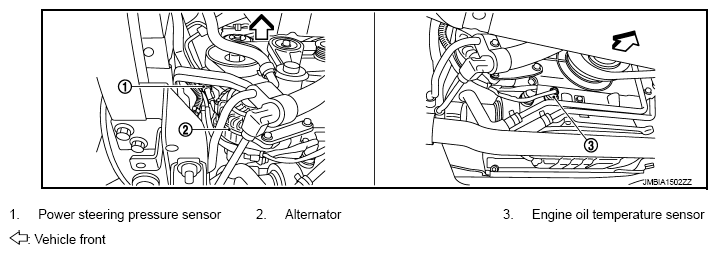

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 20)

G07239871

Courtesy of NISSAN MOTOR CO., U.S.A.

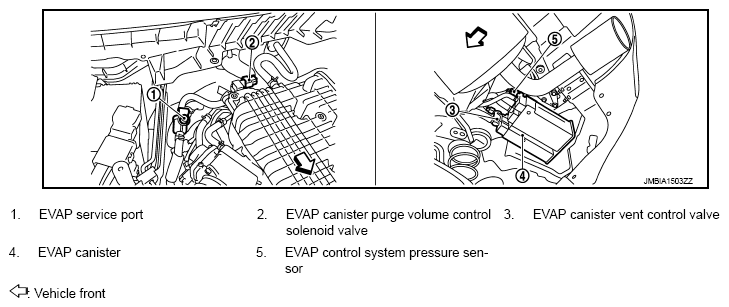

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 20)

G07239872

Courtesy of NISSAN MOTOR CO., U.S.A.

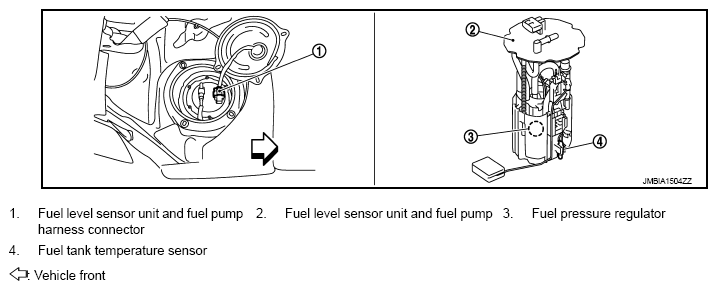

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 20)

G07239873

Courtesy of NISSAN MOTOR CO., U.S.A.

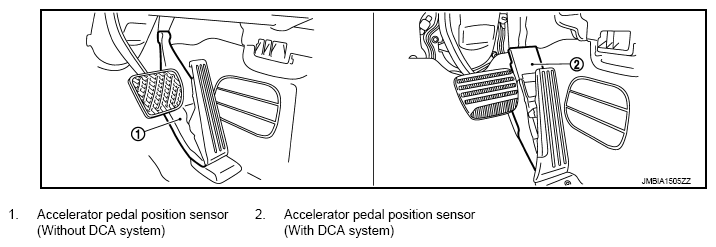

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 20)

G07239874

Courtesy of NISSAN MOTOR CO., U.S.A.

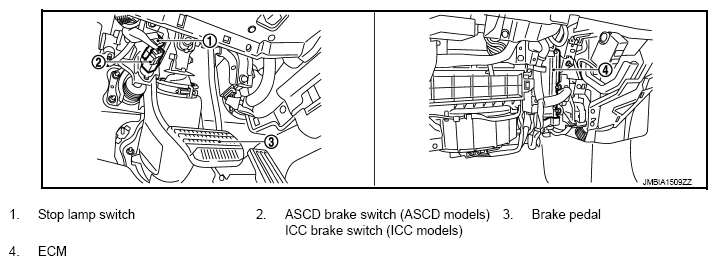

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 20)

G07239875

Courtesy of NISSAN MOTOR CO., U.S.A.

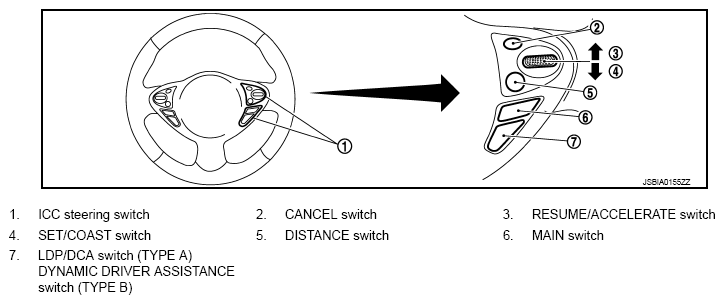

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 20)

G07239876

Courtesy of NISSAN MOTOR CO., U.S.A.

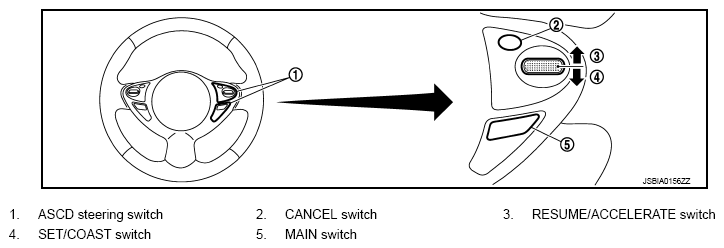

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 20)

G07239877

Courtesy of NISSAN MOTOR CO., U.S.A.

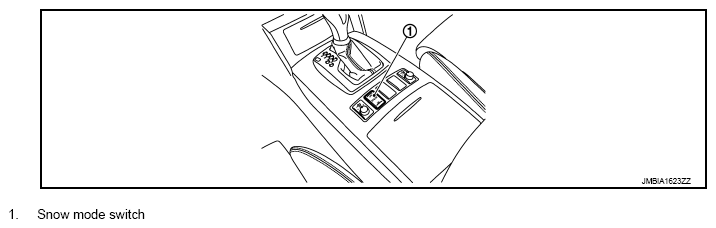

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 20)

G07239878

Courtesy of NISSAN MOTOR CO., U.S.A.
