Component Parts Location

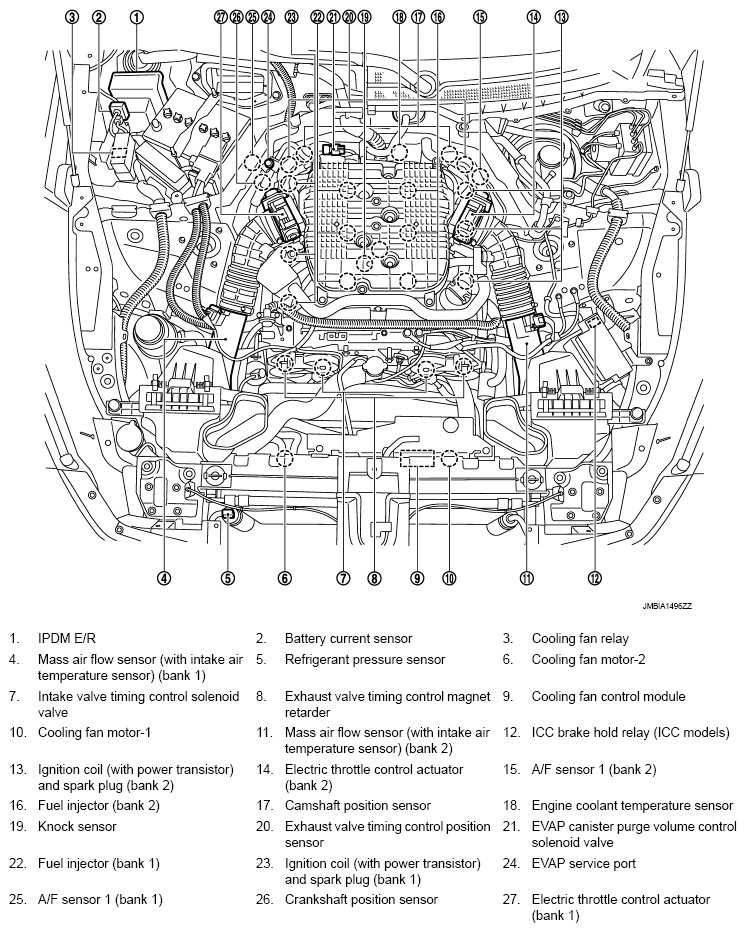

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 20)

G07240027

Courtesy of NISSAN MOTOR CO., U.S.A.

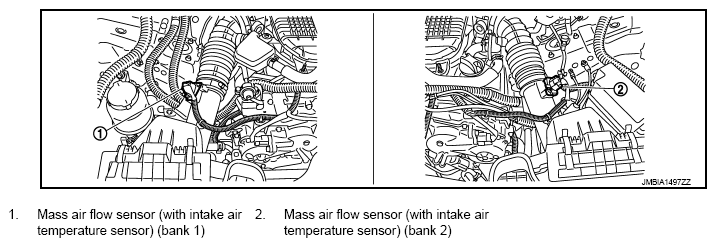

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 20)

G07240028

Courtesy of NISSAN MOTOR CO., U.S.A.

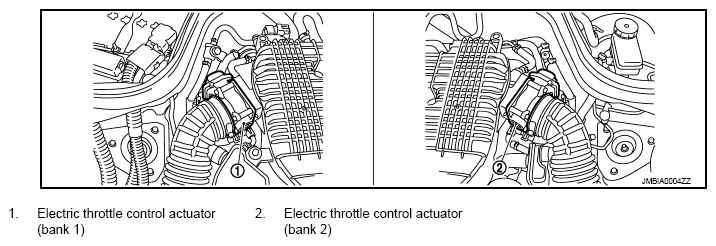

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 20)

G07240029

Courtesy of NISSAN MOTOR CO., U.S.A.

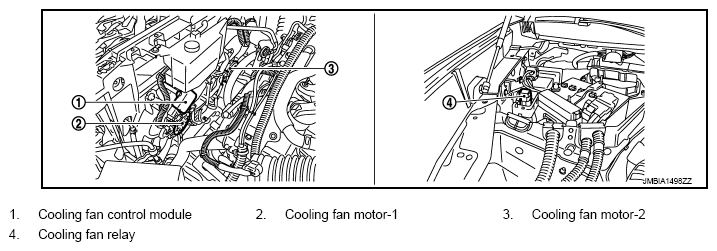

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 20)

G07240030

Courtesy of NISSAN MOTOR CO., U.S.A.

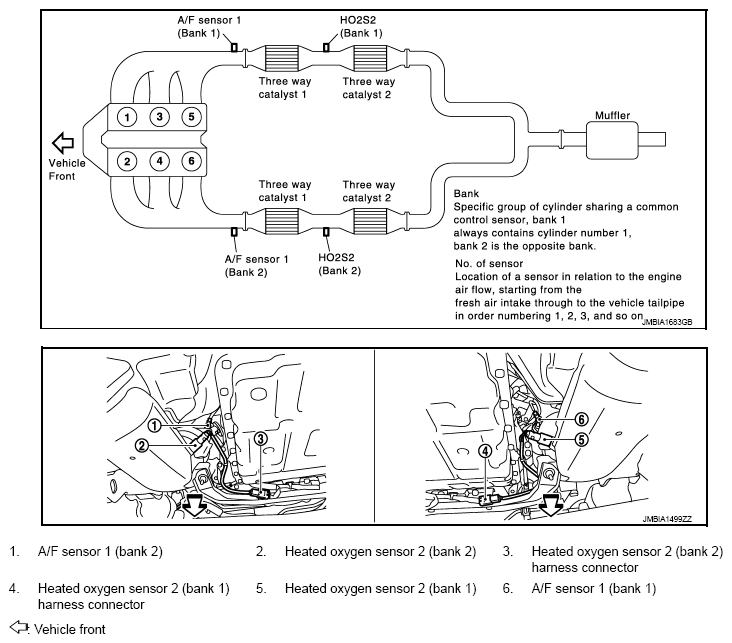

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 20)

G07240031

Courtesy of NISSAN MOTOR CO., U.S.A.

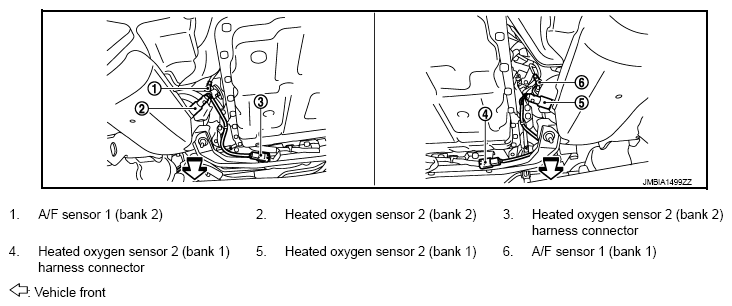

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 20)

G07272942

Courtesy of NISSAN MOTOR CO., U.S.A.

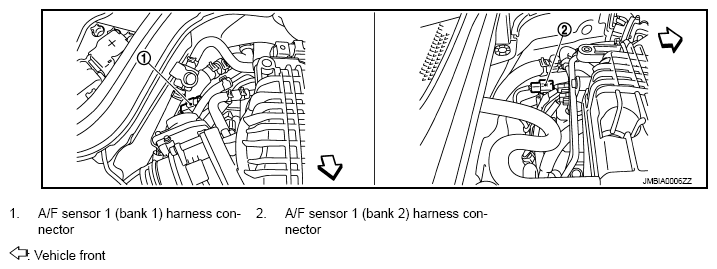

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 20)

G07240032

Courtesy of NISSAN MOTOR CO., U.S.A.

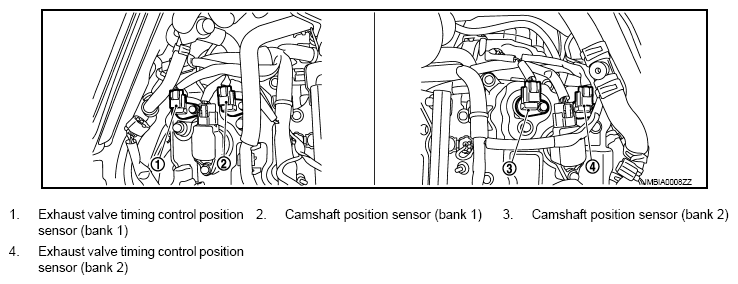

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 20)

G07240033

Courtesy of NISSAN MOTOR CO., U.S.A.

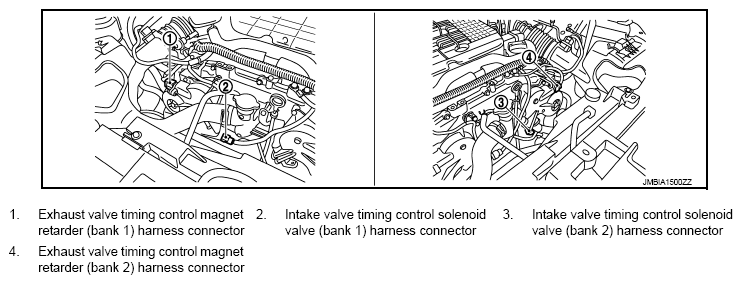

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 20)

G07240034

Courtesy of NISSAN MOTOR CO., U.S.A.

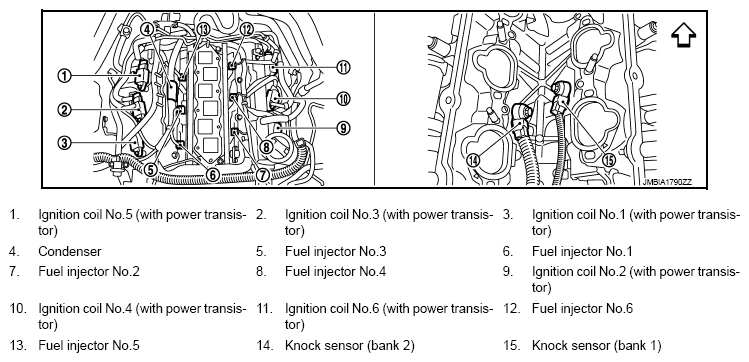

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 20)

G07240035

Courtesy of NISSAN MOTOR CO., U.S.A.

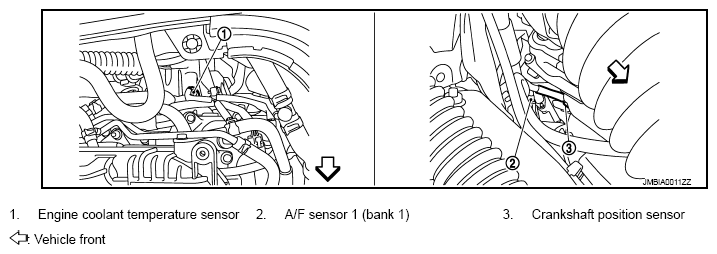

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 20)

G07240036

Courtesy of NISSAN MOTOR CO., U.S.A.

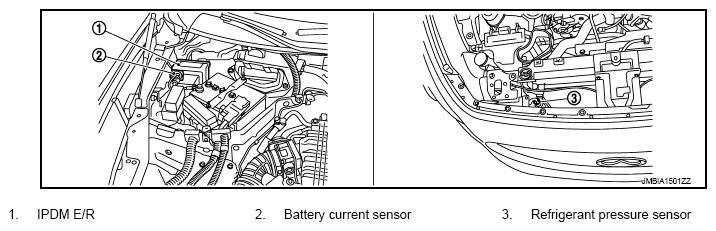

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 20)

G07240037

Courtesy of NISSAN MOTOR CO., U.S.A.

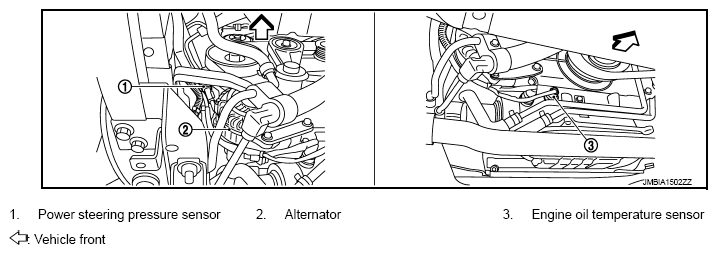

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 20)

G07240038

Courtesy of NISSAN MOTOR CO., U.S.A.

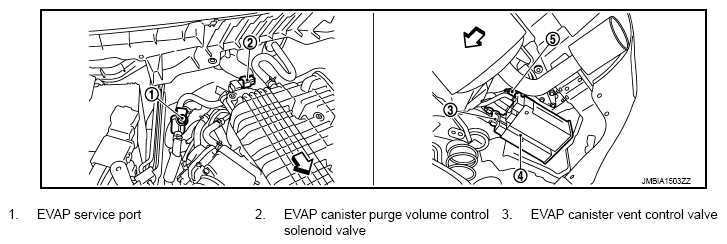

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 20)

G07240039

Courtesy of NISSAN MOTOR CO., U.S.A.

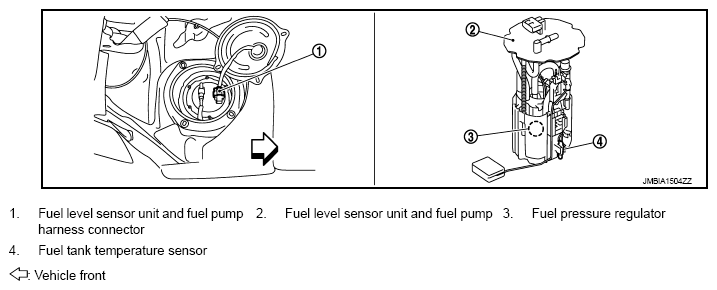

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 20)

G07240040

Courtesy of NISSAN MOTOR CO., U.S.A.

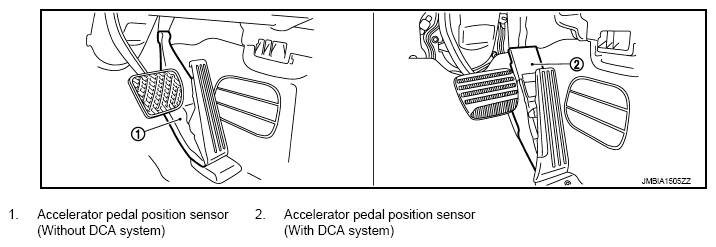

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 20)

G07240041

Courtesy of NISSAN MOTOR CO., U.S.A.

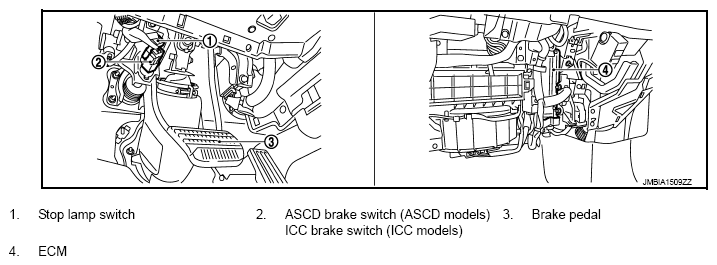

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 20)

G07240042

Courtesy of NISSAN MOTOR CO., U.S.A.

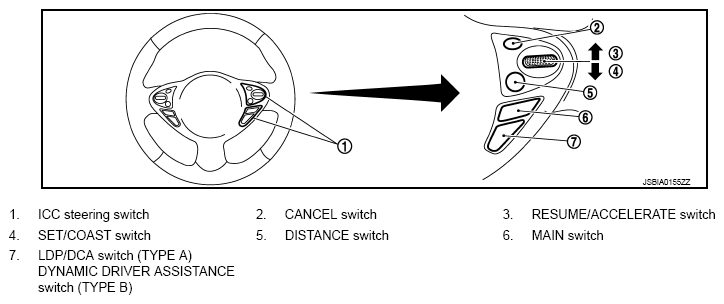

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 20)

G07240043

Courtesy of NISSAN MOTOR CO., U.S.A.

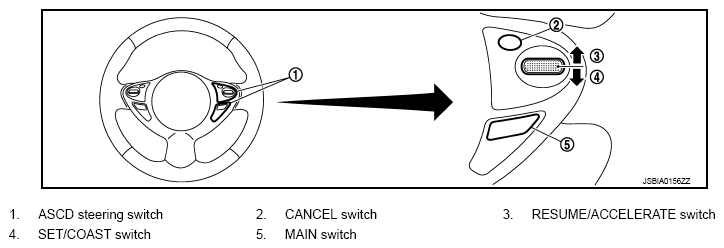

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 20)

G07240044

Courtesy of NISSAN MOTOR CO., U.S.A.

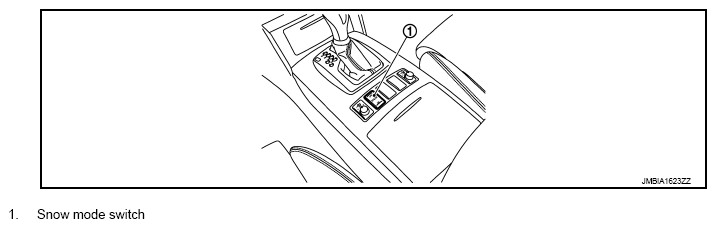

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 20)

G07240045

Courtesy of NISSAN MOTOR CO., U.S.A.
