Component Parts Location

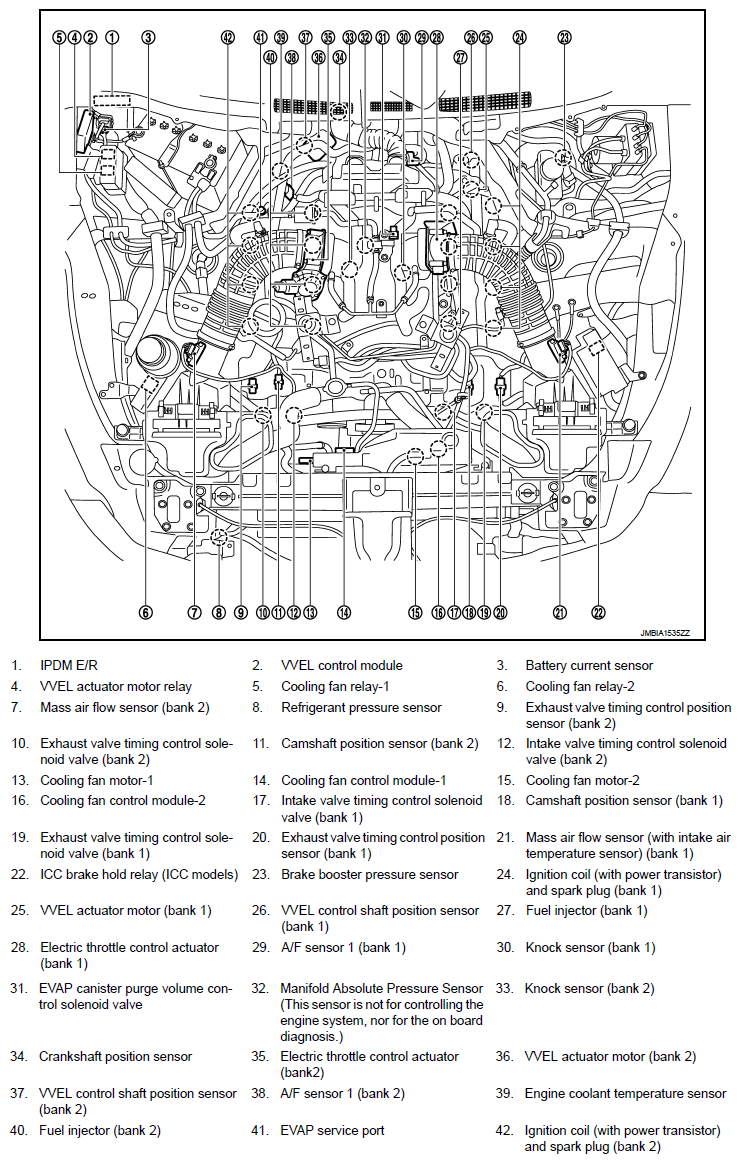

Fig 1: Identifying Engine Control System Parts Location (1 Of 25)

G07227160

Courtesy of NISSAN MOTOR CO., U.S.A.

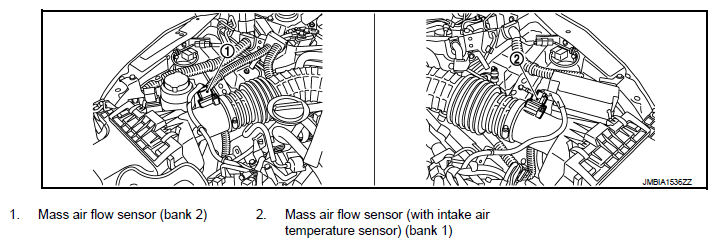

Fig 2: Identifying Engine Control System Parts Location (2 Of 25)

G07227161

Courtesy of NISSAN MOTOR CO., U.S.A.

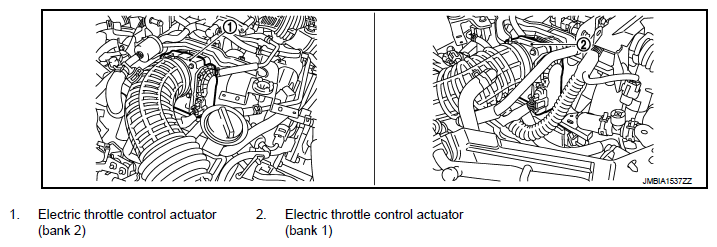

Fig 3: Identifying Engine Control System Parts Location (3 Of 25)

G07227162

Courtesy of NISSAN MOTOR CO., U.S.A.

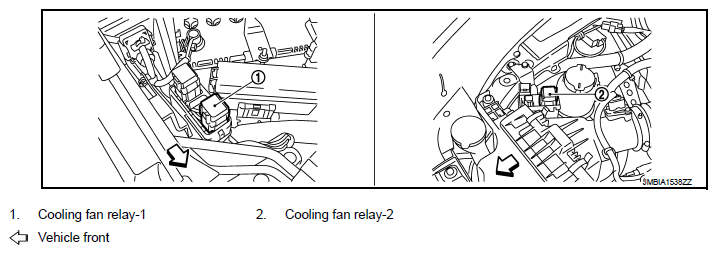

Fig 4: Identifying Engine Control System Parts Location (4 Of 25)

G07227163

Courtesy of NISSAN MOTOR CO., U.S.A.

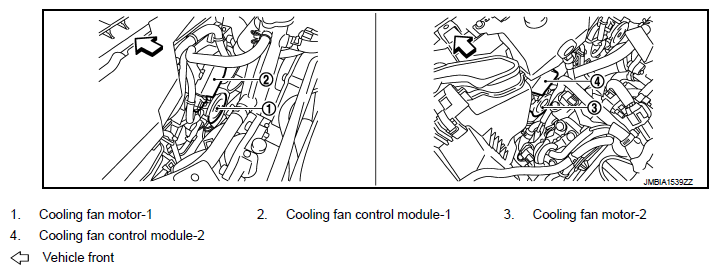

Fig 5: Identifying Engine Control System Parts Location (5 Of 25)

G07227164

Courtesy of NISSAN MOTOR CO., U.S.A.

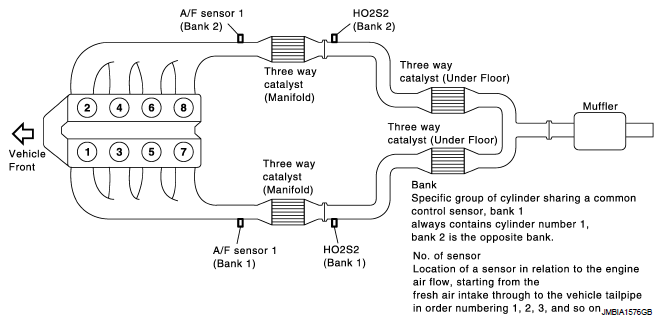

Fig 6: Identifying Engine Control System Parts Location (6 Of 25)

G07227165

Courtesy of NISSAN MOTOR CO., U.S.A.

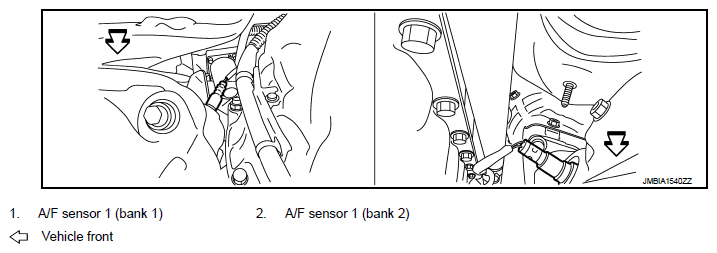

Fig 7: Identifying Engine Control System Parts Location (7 Of 25)

G07227166

Courtesy of NISSAN MOTOR CO., U.S.A.

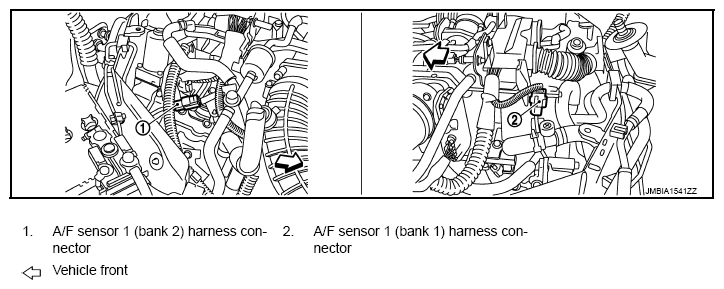

Fig 8: Identifying Engine Control System Parts Location (8 Of 25)

G07238355

Courtesy of NISSAN MOTOR CO., U.S.A.

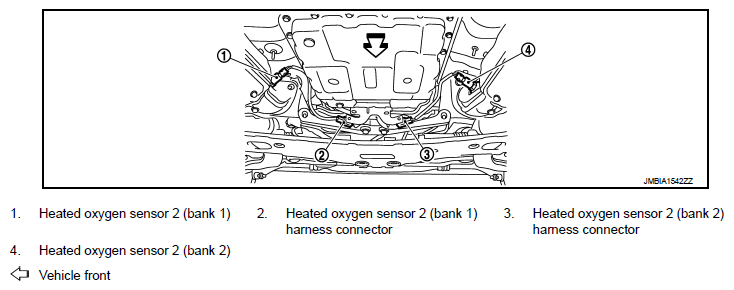

Fig 9: Identifying Engine Control System Parts Location (9 Of 25)

G07227167

Courtesy of NISSAN MOTOR CO., U.S.A.

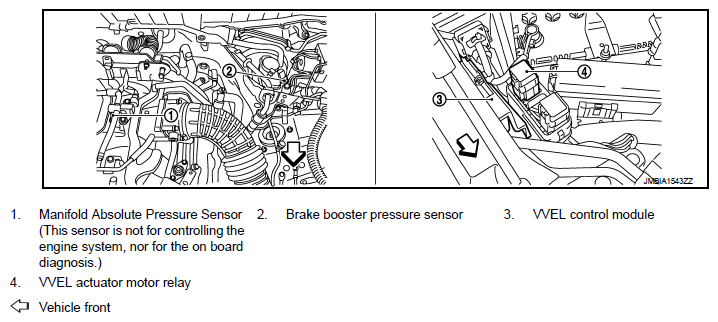

Fig 10: Identifying Engine Control System Parts Location (10 Of 25)

G07227168

Courtesy of NISSAN MOTOR CO., U.S.A.

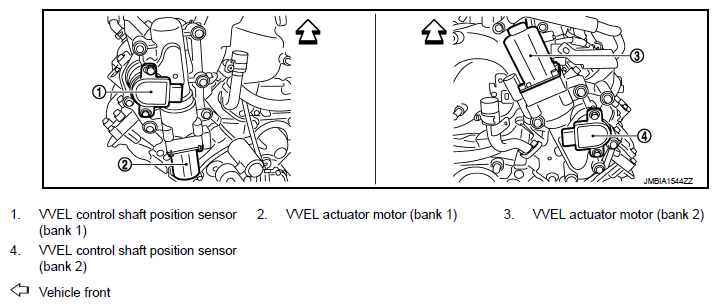

Fig 11: Identifying Engine Control System Parts Location (11 Of 25)

G07227169

Courtesy of NISSAN MOTOR CO., U.S.A.

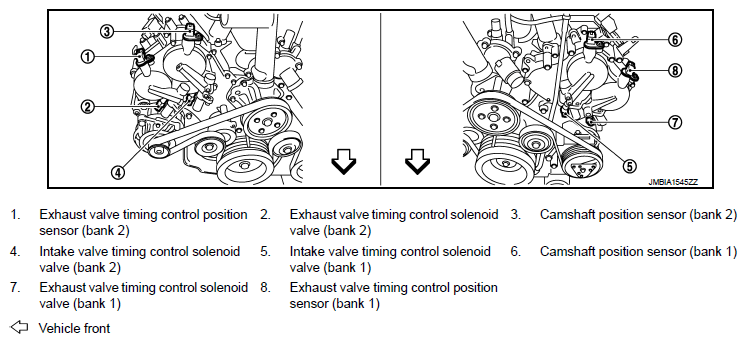

Fig 12: Identifying Engine Control System Parts Location (12 Of 25)

G07227170

Courtesy of NISSAN MOTOR CO., U.S.A.

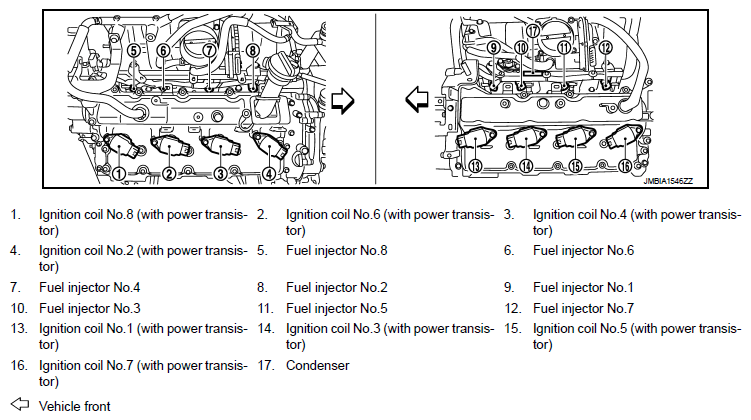

Fig 13: Identifying Engine Control System Parts Location (13 Of 25)

G07227171

Courtesy of NISSAN MOTOR CO., U.S.A.

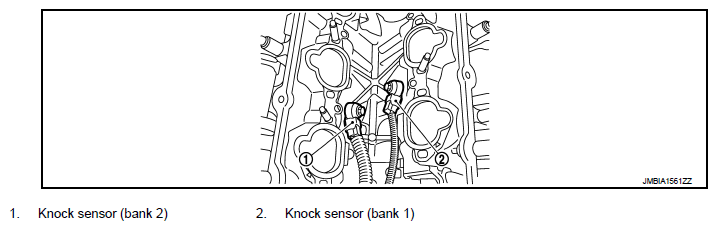

Fig 14: Identifying Engine Control System Parts Location (14 Of 25)

G07227172

Courtesy of NISSAN MOTOR CO., U.S.A.

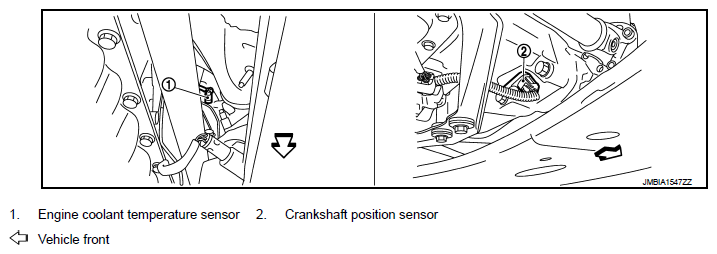

Fig 15: Identifying Engine Control System Parts Location (15 Of 25)

G07227173

Courtesy of NISSAN MOTOR CO., U.S.A.

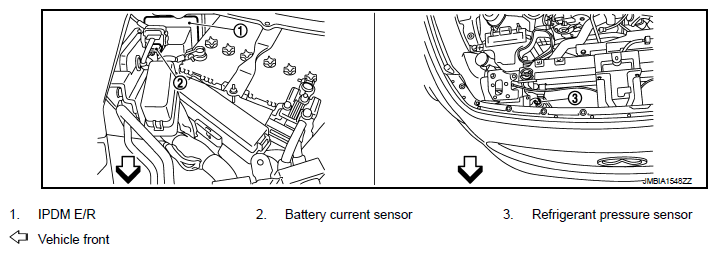

Fig 16: Identifying Engine Control System Parts Location (16 Of 25)

G07227174

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Parts Location (17 Of 25)

G07227175

Courtesy of NISSAN MOTOR CO., U.S.A.

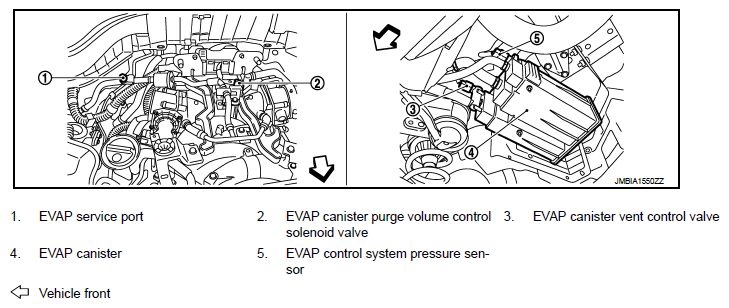

Fig 18: Identifying Engine Control System Parts Location (18 Of 25)

G07227176

Courtesy of NISSAN MOTOR CO., U.S.A.

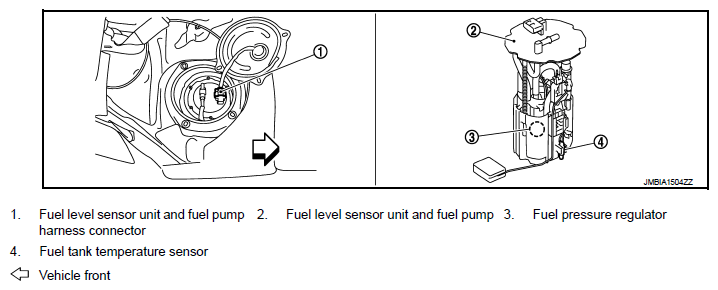

Fig 19: Identifying Engine Control System Parts Location (19 Of 25)

G07227177

Courtesy of NISSAN MOTOR CO., U.S.A.

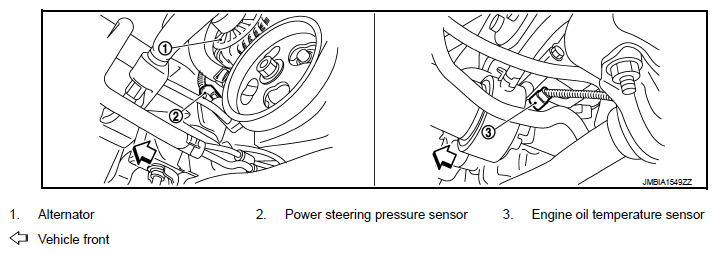

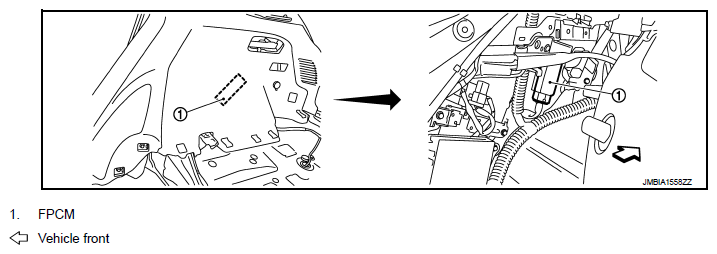

Fig 20: Identifying Engine Control System Parts Location (20 Of 25)

G07227178

Courtesy of NISSAN MOTOR CO., U.S.A.

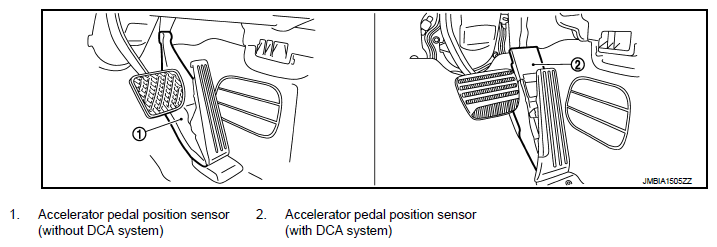

Fig 21: Identifying Engine Control System Parts Location (21 Of 25)

G07227179

Courtesy of NISSAN MOTOR CO., U.S.A.

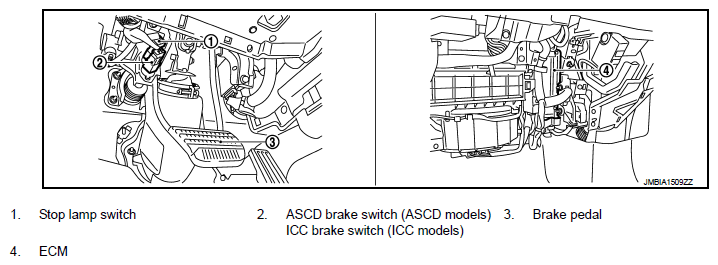

Fig 22: Identifying Engine Control System Parts Location (22 Of 25)

G07227180

Courtesy of NISSAN MOTOR CO., U.S.A.

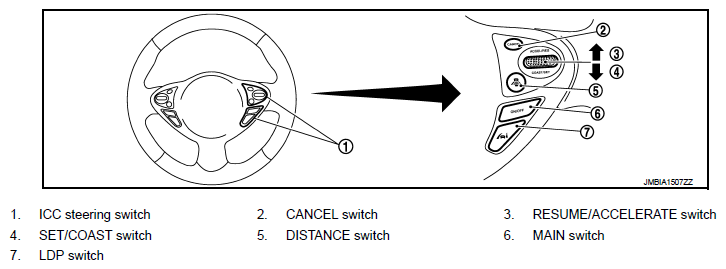

Fig 23: Identifying Engine Control System Parts Location (23 Of 25)

G07227181

Courtesy of NISSAN MOTOR CO., U.S.A.

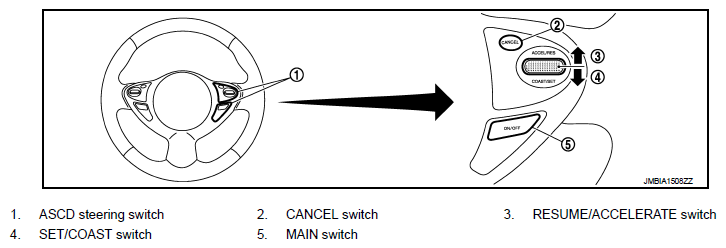

Fig 24: Identifying Engine Control System Parts Location (24 Of 25)

G07227182

Courtesy of NISSAN MOTOR CO., U.S.A.

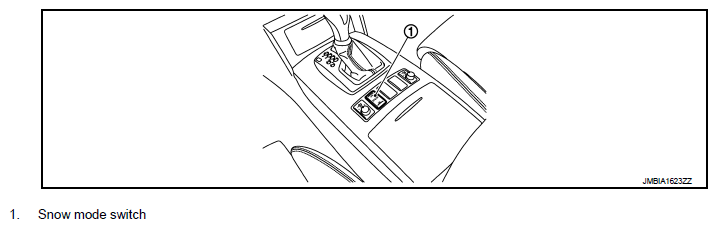

Fig 25: Identifying Engine Control System Parts Location (25 Of 25)

G07227183

Courtesy of NISSAN MOTOR CO., U.S.A.
