Component Parts Location

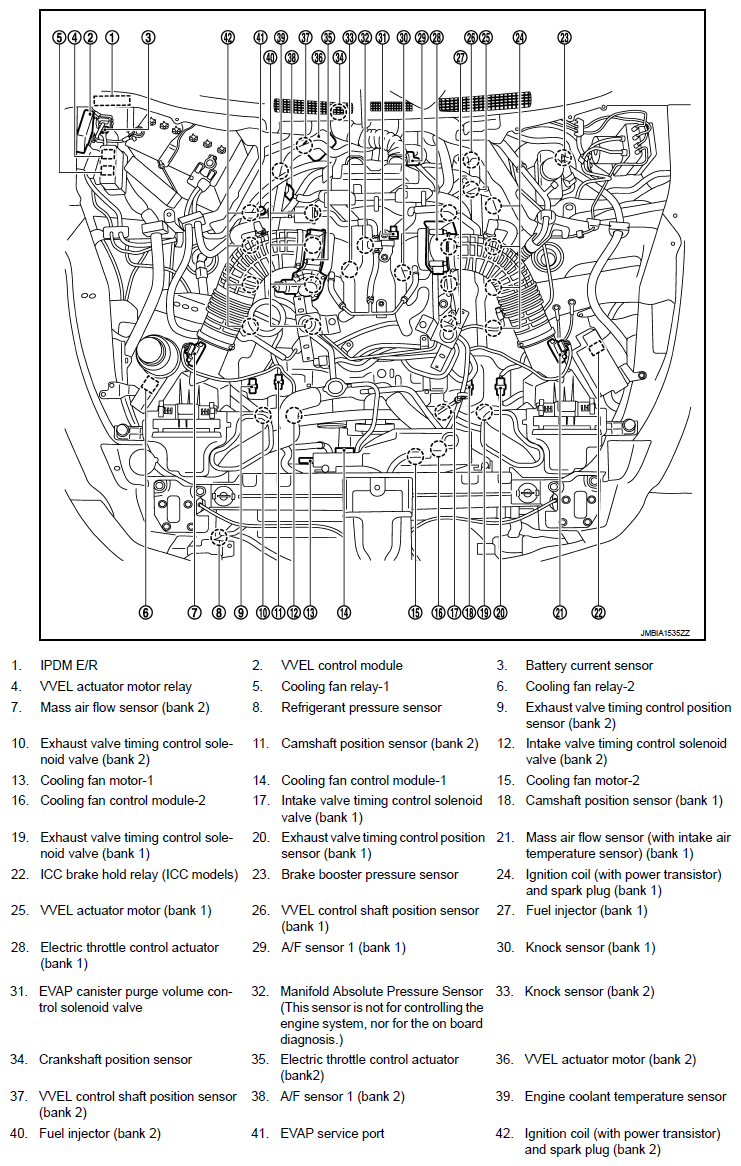

Fig 1: Identifying Intake Valve Timing Control System Parts Location (1 Of 25)

G07227398

Courtesy of NISSAN MOTOR CO., U.S.A.

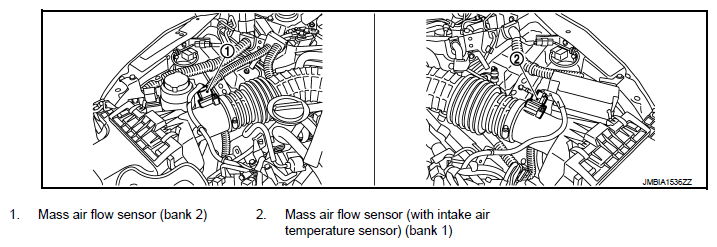

Fig 2: Identifying Intake Valve Timing Control System Parts Location (2 Of 25)

G07227399

Courtesy of NISSAN MOTOR CO., U.S.A.

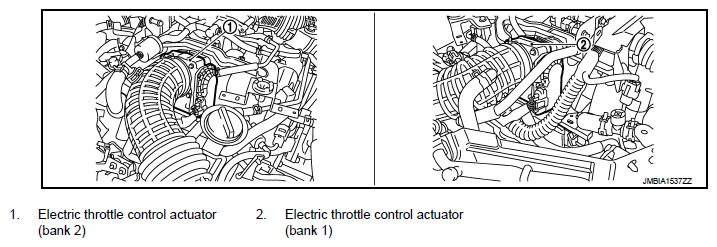

Fig 3: Identifying Intake Valve Timing Control System Parts Location (3 Of 25)

G07227400

Courtesy of NISSAN MOTOR CO., U.S.A.

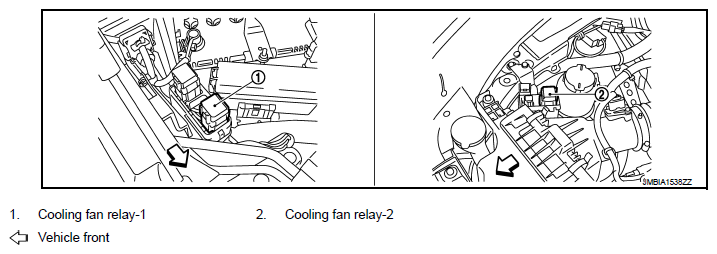

Fig 4: Identifying Intake Valve Timing Control System Parts Location (4 Of 25)

G07227401

Courtesy of NISSAN MOTOR CO., U.S.A.

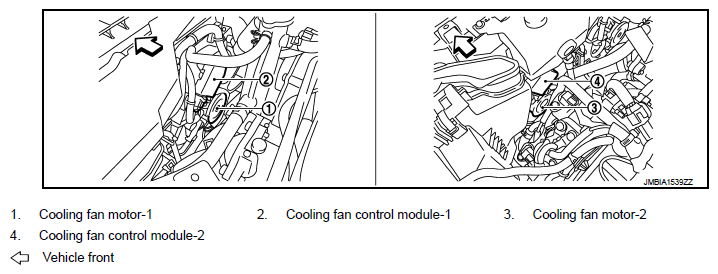

Fig 5: Identifying Intake Valve Timing Control System Parts Location (5 Of 25)

G07227402

Courtesy of NISSAN MOTOR CO., U.S.A.

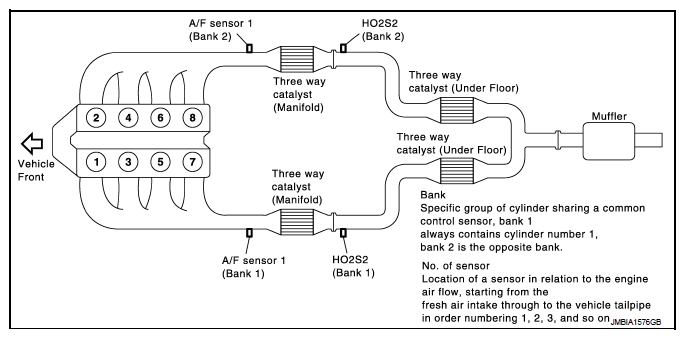

Fig 6: Identifying Intake Valve Timing Control System Parts Location (6 Of 25)

G07227403

Courtesy of NISSAN MOTOR CO., U.S.A.

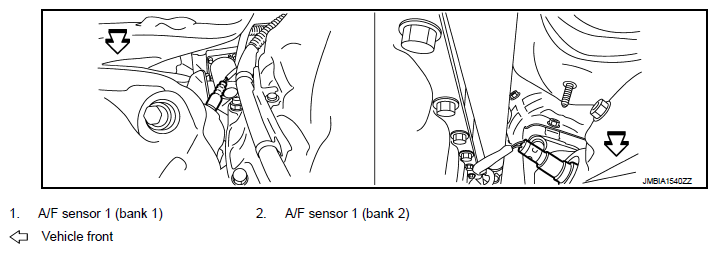

Fig 7: Identifying Intake Valve Timing Control System Parts Location (7 Of 25)

G07227404

Courtesy of NISSAN MOTOR CO., U.S.A.

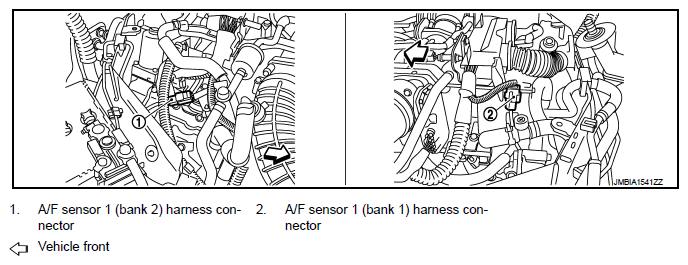

Fig 8: Identifying Intake Valve Timing Control System Parts Location (8 Of 25)

G07227405

Courtesy of NISSAN MOTOR CO., U.S.A.

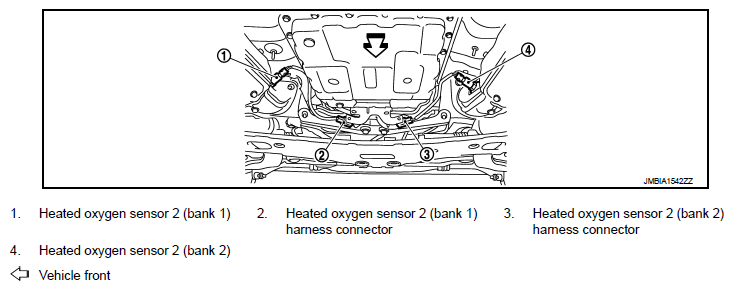

Fig 9: Identifying Intake Valve Timing Control System Parts Location (9 Of 25)

G07227406

Courtesy of NISSAN MOTOR CO., U.S.A.

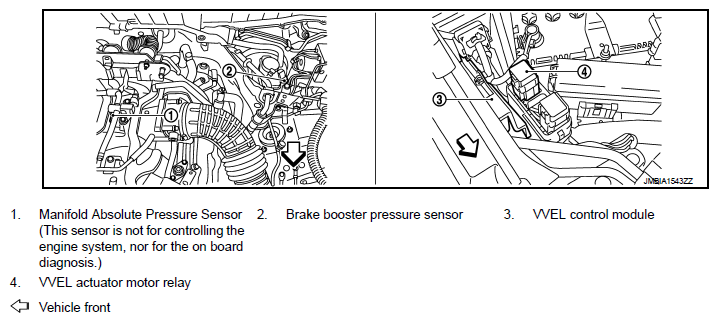

Fig 10: Identifying Intake Valve Timing Control System Parts Location (10 Of 25)

G07227407

Courtesy of NISSAN MOTOR CO., U.S.A.

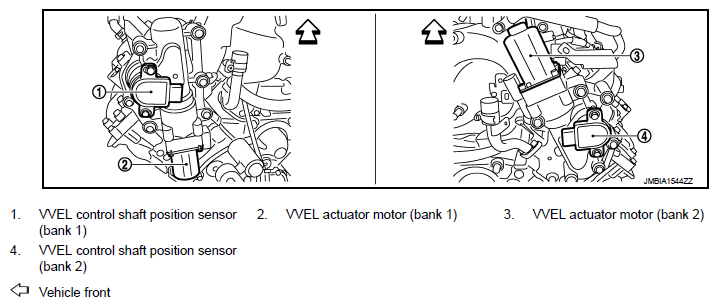

Fig 11: Identifying Intake Valve Timing Control System Parts Location (11 Of 25)

G07227408

Courtesy of NISSAN MOTOR CO., U.S.A.

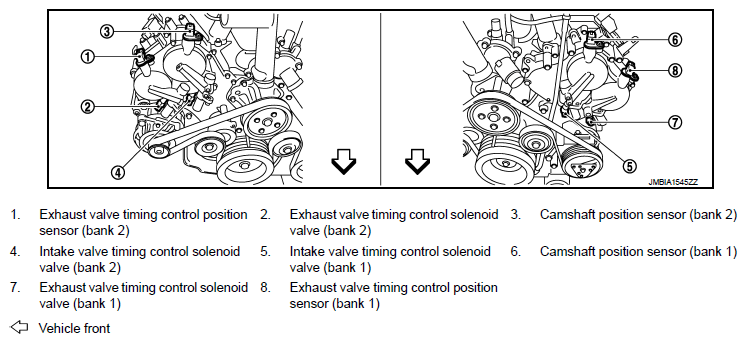

Fig 12: Identifying Intake Valve Timing Control System Parts Location (12 Of 25)

G07227409

Courtesy of NISSAN MOTOR CO., U.S.A.

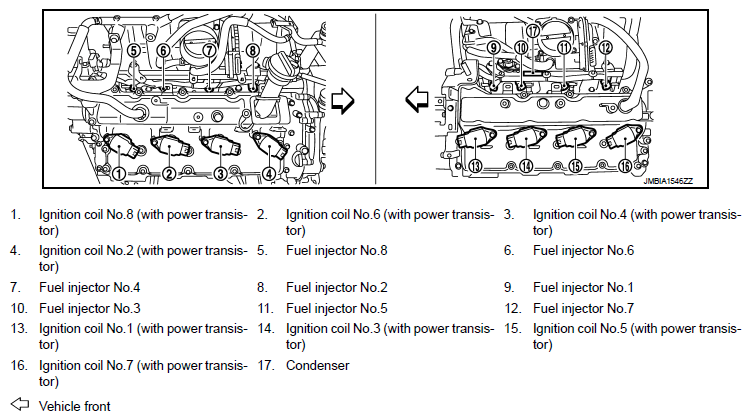

Fig 13: Identifying Intake Valve Timing Control System Parts Location (13 Of 25)

G07227410

Courtesy of NISSAN MOTOR CO., U.S.A.

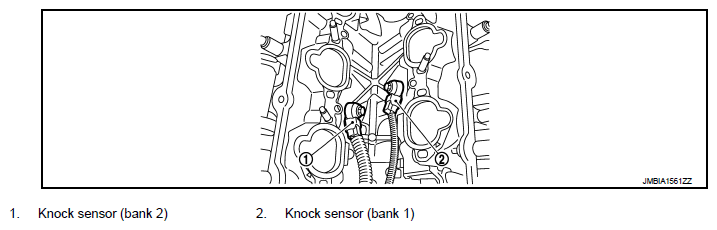

Fig 14: Identifying Intake Valve Timing Control System Parts Location (14 Of 25)

G07227411

Courtesy of NISSAN MOTOR CO., U.S.A.

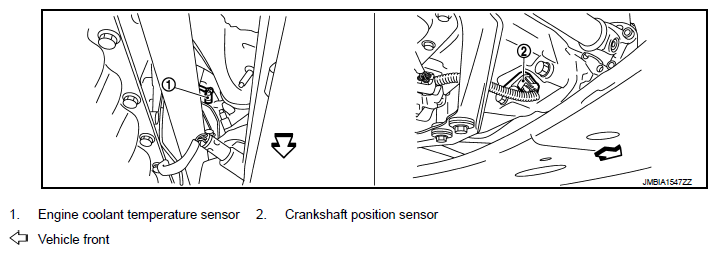

Fig 15: Identifying Intake Valve Timing Control System Parts Location (15 Of 25)

G07227412

Courtesy of NISSAN MOTOR CO., U.S.A.

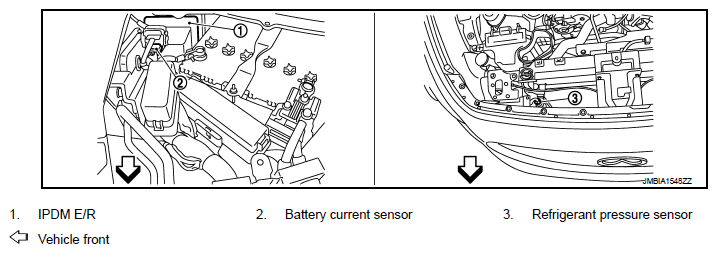

Fig 16: Identifying Intake Valve Timing Control System Parts Location (16 Of 25)

G07227413

Courtesy of NISSAN MOTOR CO., U.S.A.

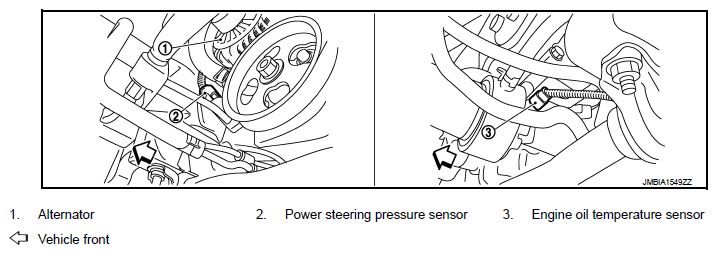

Fig 17: Identifying Intake Valve Timing Control System Parts Location (17 Of 25)

G07227414

Courtesy of NISSAN MOTOR CO., U.S.A.

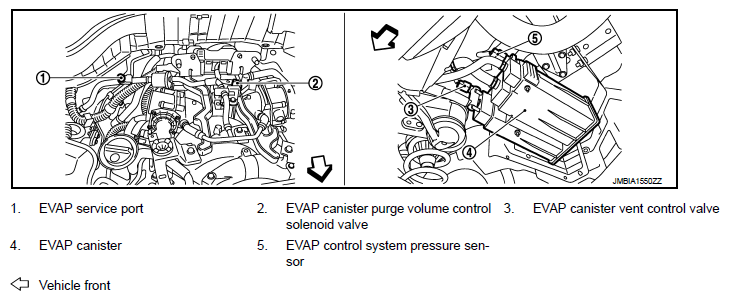

Fig 18: Identifying Intake Valve Timing Control System Parts Location (18 Of 25)

G07227415

Courtesy of NISSAN MOTOR CO., U.S.A.

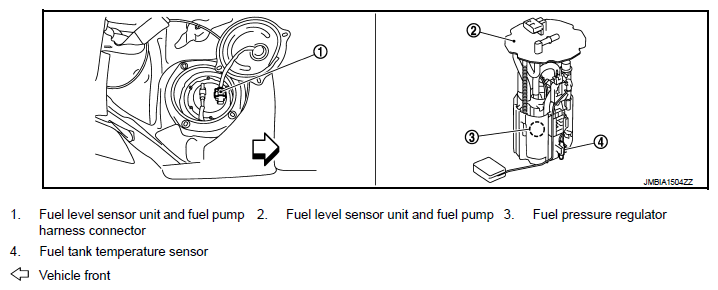

Fig 19: Identifying Intake Valve Timing Control System Parts Location (19 Of 25)

G07227416

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control System Parts Location (20 Of 25)

G07227417

Courtesy of NISSAN MOTOR CO., U.S.A.

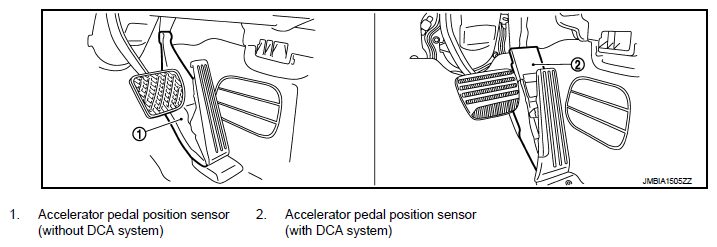

Fig 21: Identifying Intake Valve Timing Control System Parts Location (21 Of 25)

G07227418

Courtesy of NISSAN MOTOR CO., U.S.A.

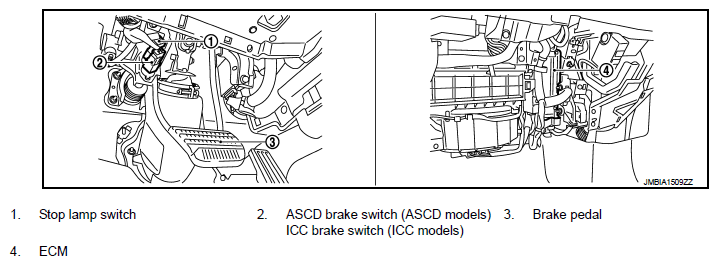

Fig 22: Identifying Intake Valve Timing Control System Parts Location (22 Of 25)

G07227419

Courtesy of NISSAN MOTOR CO., U.S.A.

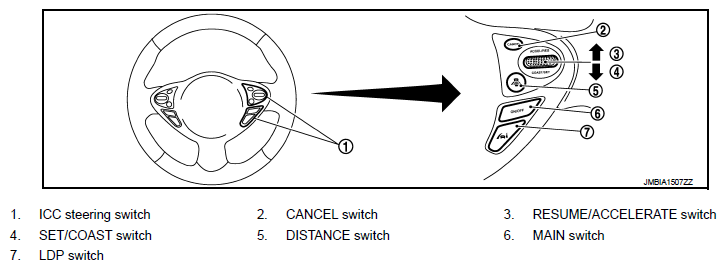

Fig 23: Identifying Intake Valve Timing Control System Parts Location (23 Of 25)

G07227420

Courtesy of NISSAN MOTOR CO., U.S.A.

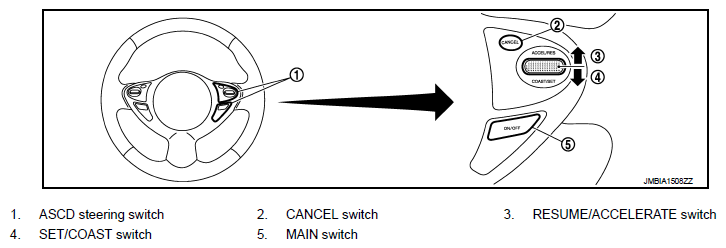

Fig 24: Identifying Intake Valve Timing Control System Parts Location (24 Of 25)

G07227421

Courtesy of NISSAN MOTOR CO., U.S.A.

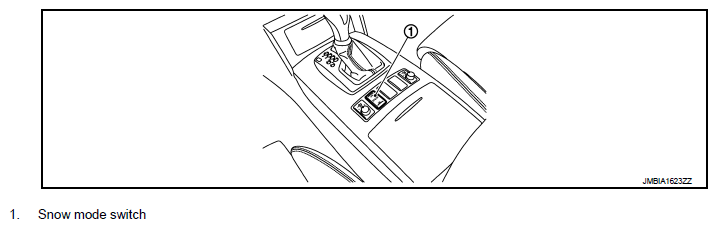

Fig 25: Identifying Intake Valve Timing Control System Parts Location (25 Of 25)

G07227422

Courtesy of NISSAN MOTOR CO., U.S.A.
