Component Parts Location

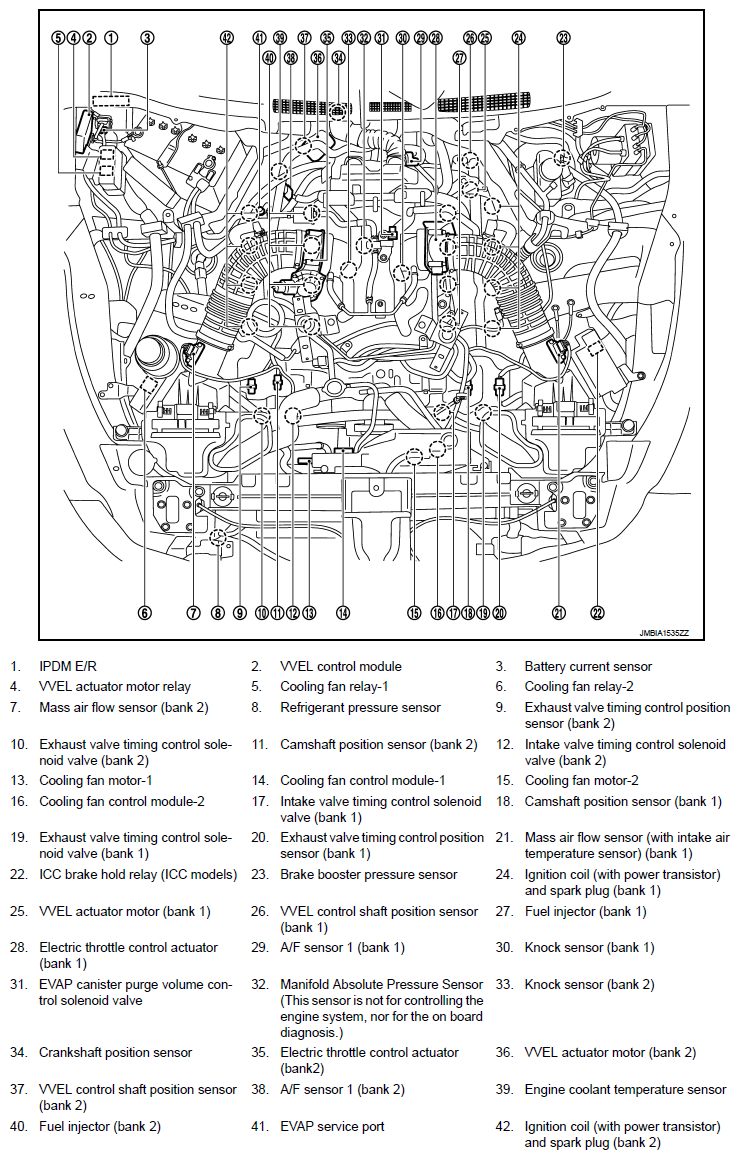

Fig 1: Identifying VVEL System Parts Location (1 Of 25)

G07227425

Courtesy of NISSAN MOTOR CO., U.S.A.

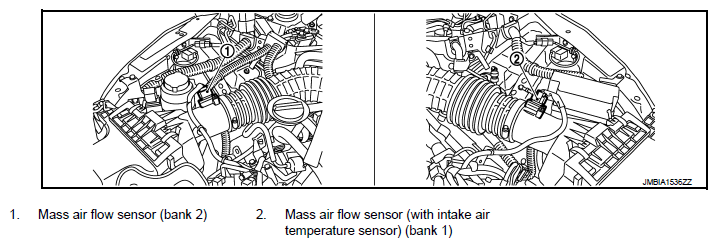

Fig 2: Identifying VVEL System Parts Location (2 Of 25)

G07227426

Courtesy of NISSAN MOTOR CO., U.S.A.

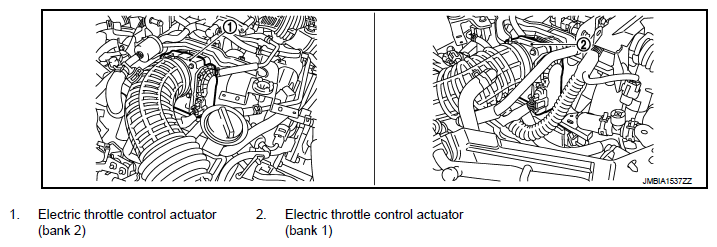

Fig 3: Identifying VVEL System Parts Location (3 Of 25)

G07227427

Courtesy of NISSAN MOTOR CO., U.S.A.

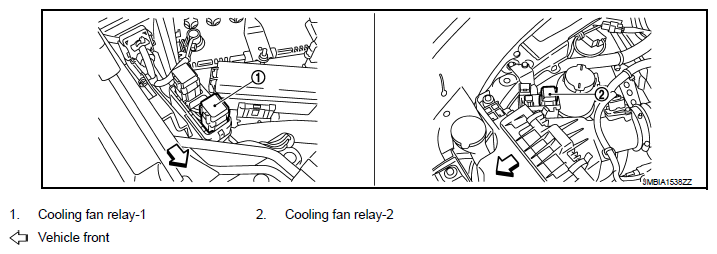

Fig 4: Identifying VVEL System Parts Location (4 Of 25)

G07227428

Courtesy of NISSAN MOTOR CO., U.S.A.

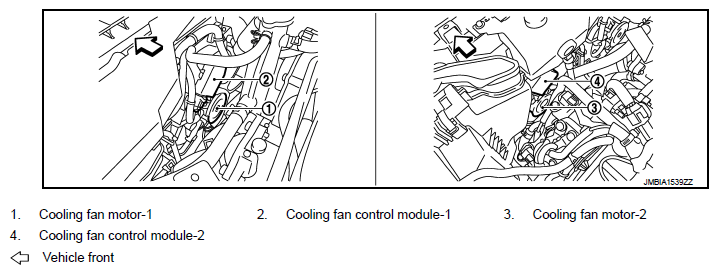

Fig 5: Identifying VVEL System Parts Location (5 Of 25)

G07227429

Courtesy of NISSAN MOTOR CO., U.S.A.

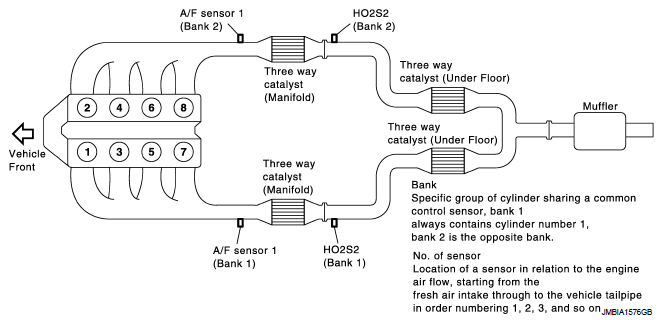

Fig 6: Identifying VVEL System Parts Location (6 Of 25)

G07227430

Courtesy of NISSAN MOTOR CO., U.S.A.

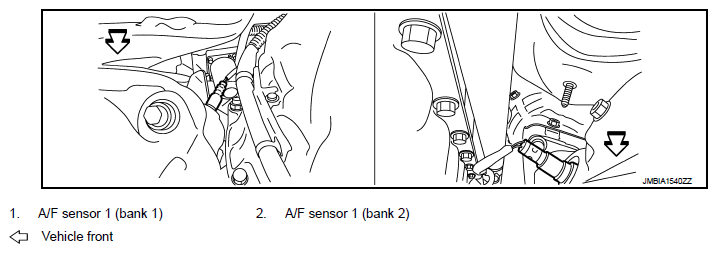

Fig 7: Identifying VVEL System Parts Location (7 Of 25)

G07227431

Courtesy of NISSAN MOTOR CO., U.S.A.

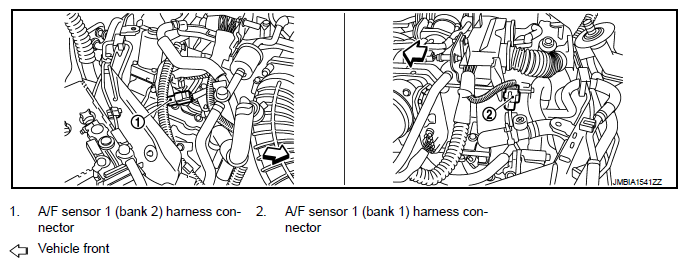

Fig 8: Identifying VVEL System Parts Location (8 Of 25)

G07227432

Courtesy of NISSAN MOTOR CO., U.S.A.

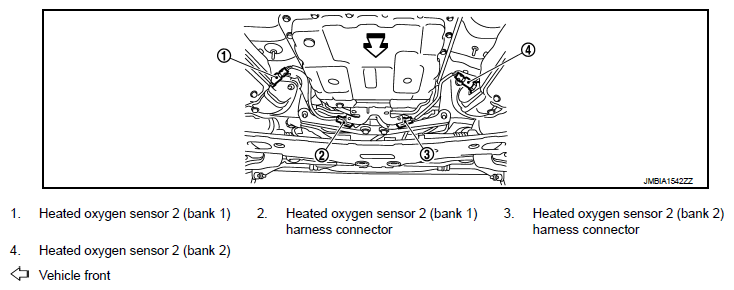

Fig 9: Identifying VVEL System Parts Location (9 Of 25)

G07227433

Courtesy of NISSAN MOTOR CO., U.S.A.

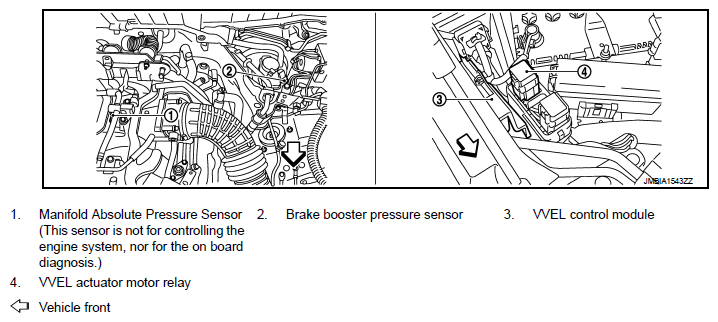

Fig 10: Identifying VVEL System Parts Location (10 Of 25)

G07227434

Courtesy of NISSAN MOTOR CO., U.S.A.

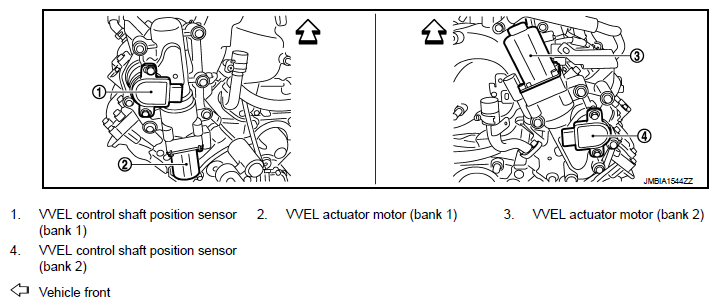

Fig 11: Identifying VVEL System Parts Location (11 Of 25)

G07227435

Courtesy of NISSAN MOTOR CO., U.S.A.

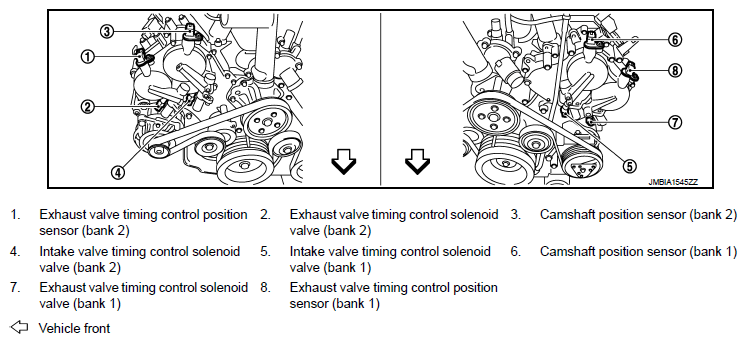

Fig 12: Identifying VVEL System Parts Location (12 Of 25)

G07227436

Courtesy of NISSAN MOTOR CO., U.S.A.

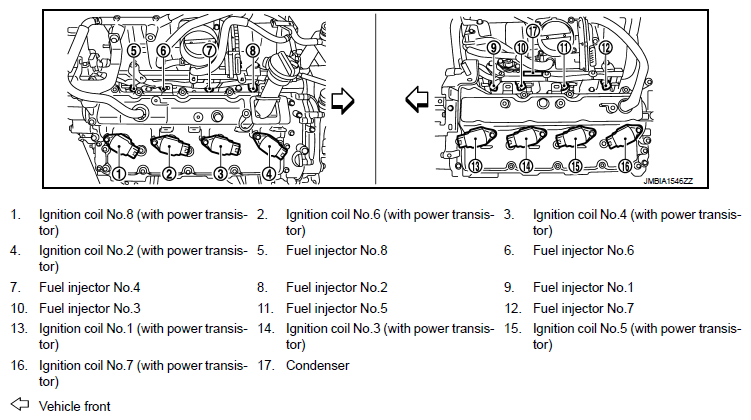

Fig 13: Identifying VVEL System Parts Location (13 Of 25)

G07227437

Courtesy of NISSAN MOTOR CO., U.S.A.

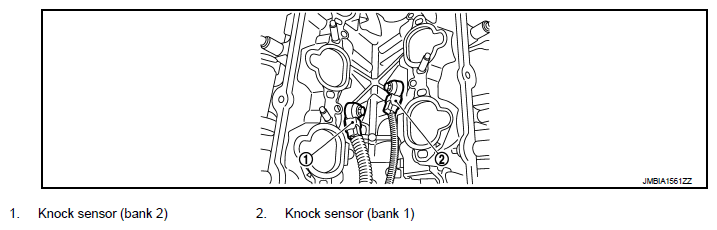

Fig 14: Identifying VVEL System Parts Location (14 Of 25)

G07227438

Courtesy of NISSAN MOTOR CO., U.S.A.

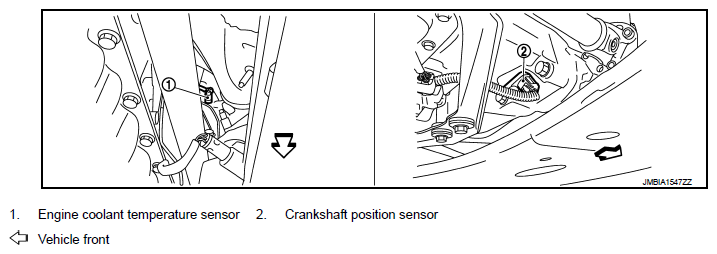

Fig 15: Identifying VVEL System Parts Location (15 Of 25)

G07227439

Courtesy of NISSAN MOTOR CO., U.S.A.

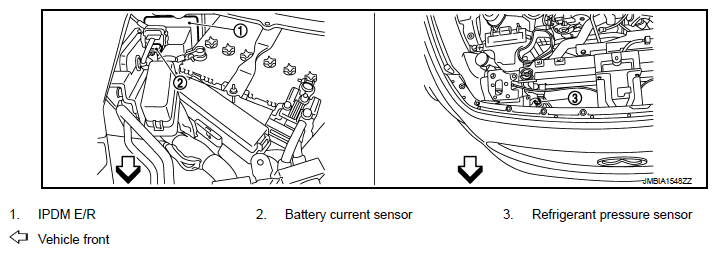

Fig 16: Identifying VVEL System Parts Location (16 Of 25)

G07227440

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying VVEL System Parts Location (17 Of 25)

G07227441

Courtesy of NISSAN MOTOR CO., U.S.A.

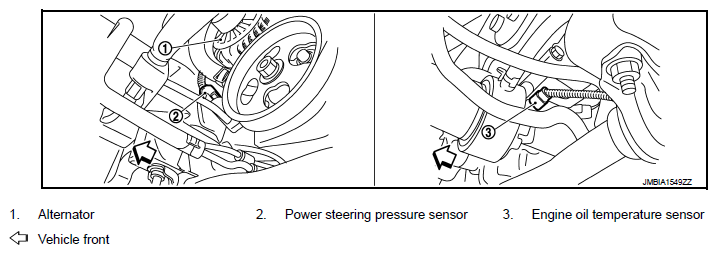

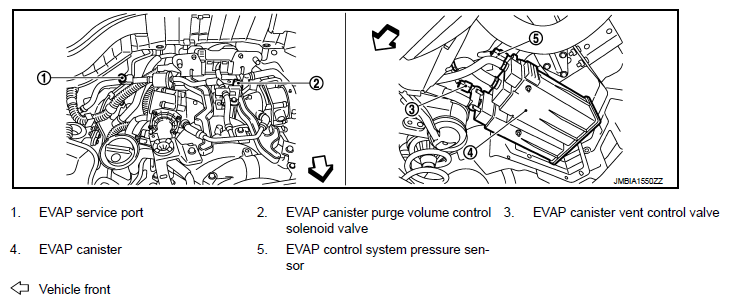

Fig 18: Identifying VVEL System Parts Location (18 Of 25)

G07227442

Courtesy of NISSAN MOTOR CO., U.S.A.

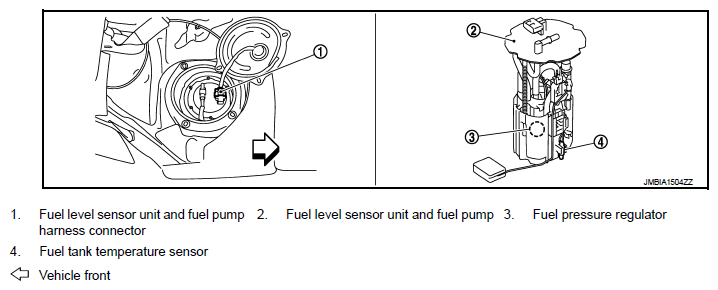

Fig 19: Identifying VVEL System Parts Location (19 Of 25)

G07227443

Courtesy of NISSAN MOTOR CO., U.S.A.

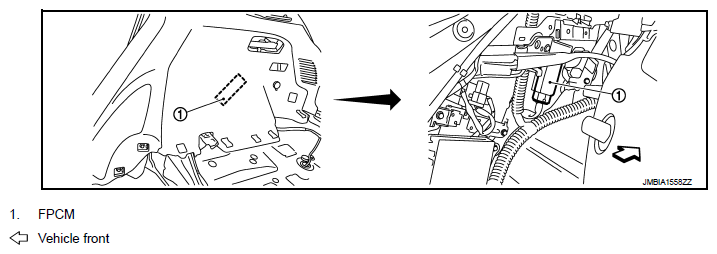

Fig 20: Identifying VVEL System Parts Location (20 Of 25)

G07227444

Courtesy of NISSAN MOTOR CO., U.S.A.

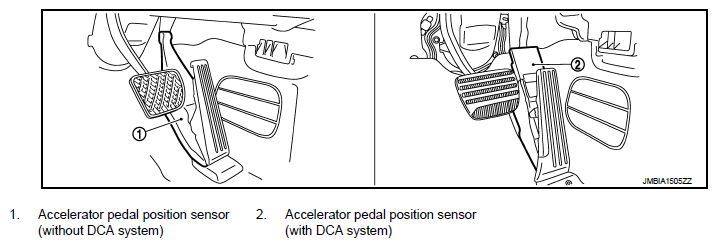

Fig 21: Identifying VVEL System Parts Location (21 Of 25)

G07227445

Courtesy of NISSAN MOTOR CO., U.S.A.

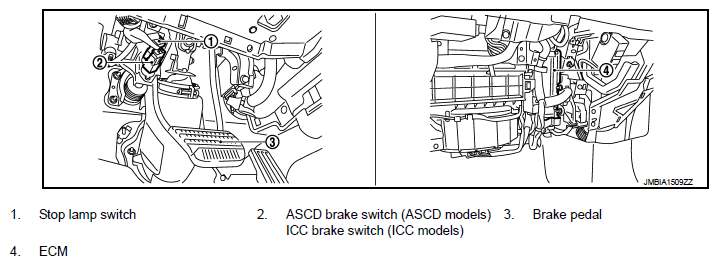

Fig 22: Identifying VVEL System Parts Location (22 Of 25)

G07227446

Courtesy of NISSAN MOTOR CO., U.S.A.

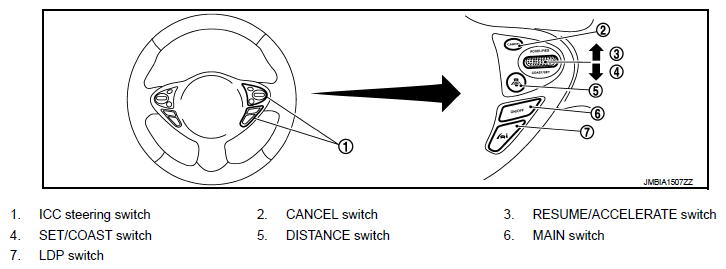

Fig 23: Identifying VVEL System Parts Location (23 Of 25)

G07227447

Courtesy of NISSAN MOTOR CO., U.S.A.

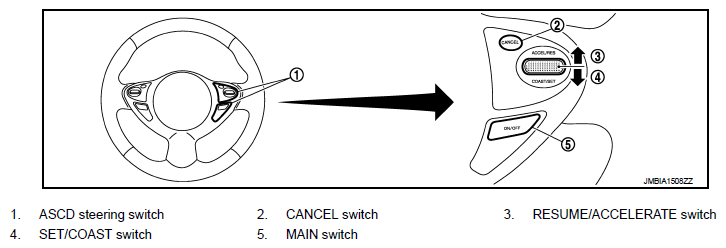

Fig 24: Identifying VVEL System Parts Location (24 Of 25)

G07227448

Courtesy of NISSAN MOTOR CO., U.S.A.

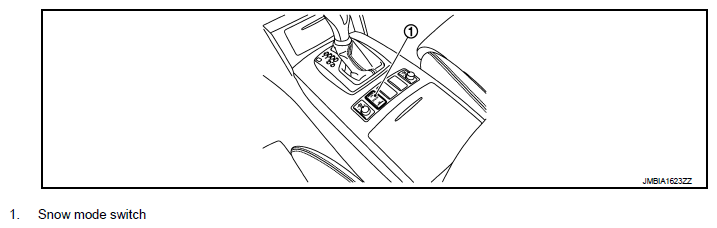

Fig 25: Identifying VVEL System Parts Location (25 Of 25)

G07227449

Courtesy of NISSAN MOTOR CO., U.S.A.
