Worksheet Sample

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

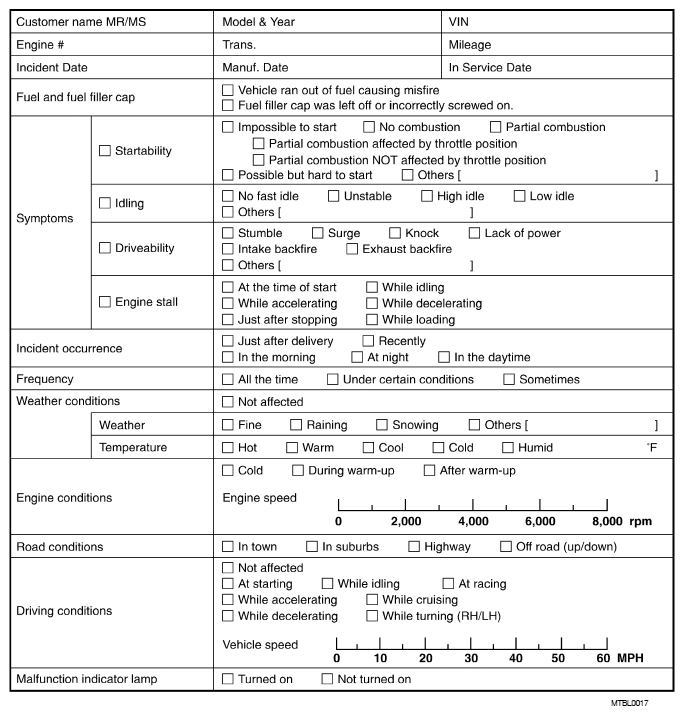

Fig 1: Identifying Worksheet Sample
G07164739Courtesy of NISSAN MOTOR CO., U.S.A.
