Combination Switch Matrix
WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

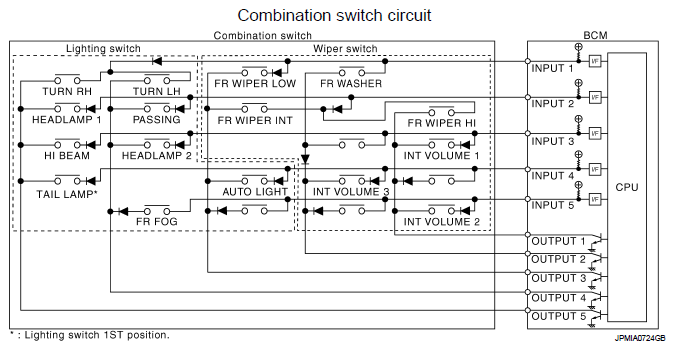

Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH INPUT-OUTPUT SYSTEM CHART
| System | OUTPUT 1 | OUTPUT 2 | OUTPUT 3 | OUTPUT 4 | OUTPUT 5 |
|---|---|---|---|---|---|
| INPUT 1 | - | FR WASHER | FR WIPER LOW | TURN LH | TURN RH |
| INPUT 2 | FR WIPER HI | - | FR WIPER INT | PASSING | HEADLAMP 1 |
| INPUT 3 | INT VOLUME 1 | RR WASHER | - | HEADLAMP 2 | HI BEAM |
| INPUT 4 | RR WIPER INT | INT VOLUME 3 | AUTO LIGHT | - | TAIL LAMP |
| INPUT 5 | INT VOLUME 2 | RR WIPER ON | - | FR FOG | - |
|
NOTE:
Headlamp has a dual system switch.
|
|||||
