Overall Sequence

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

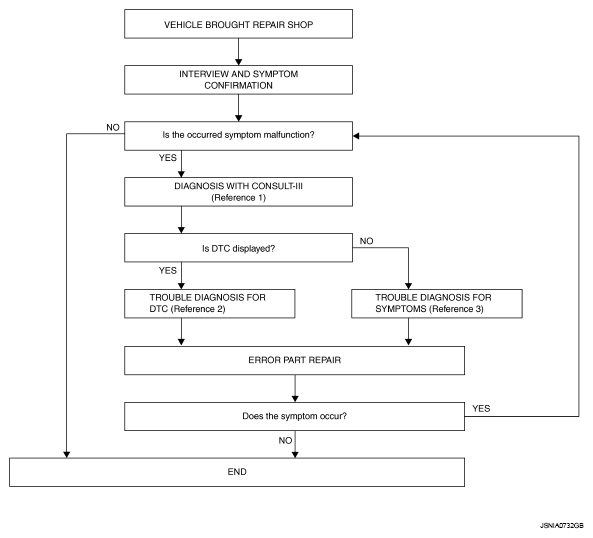

Fig 1: Diagnosis And Repair Work Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Reference 1... Refer to "CONSULT FUNCTION ".
Reference 2... Refer to "DTC INDEX ".
Reference 3... Refer to "SYMPTOM TABLE ".
