Confirmation/Adjustment Mode
WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

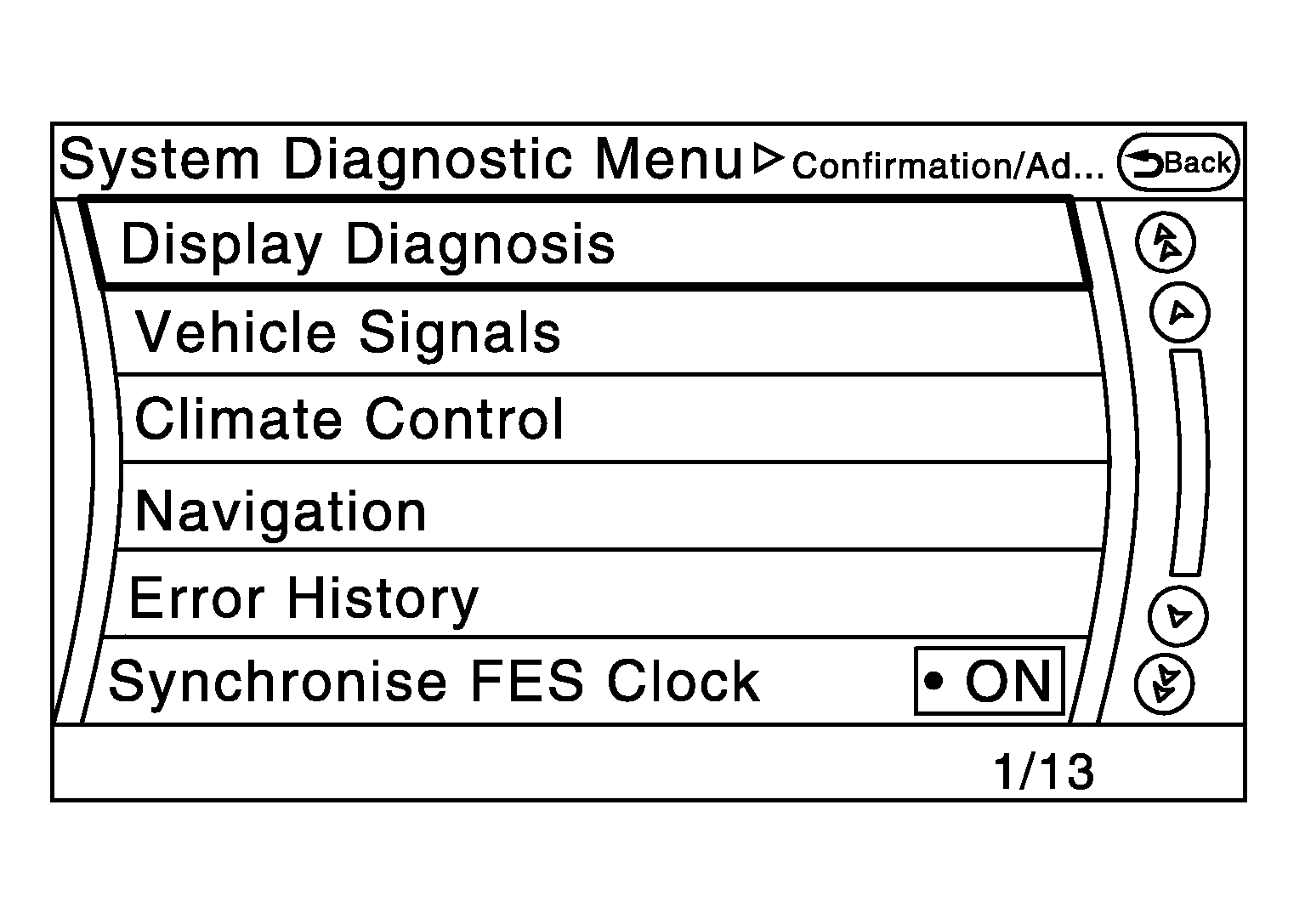

- Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
- Select each switch on the "Confirmation/Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "Back" switch to return to the initial Confirmation/Adjustment Mode screen.
Display Diagnosis
Vehicle Signals
A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
VEHICLE SIGNAL STATUS
| Diagnosis item | Display | Vehicle status | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed >= 8 km/h (5 MPH) | Changes in indication may be delayed. This is normal. |
| OFF | Vehicle speed <8 km/h (5 MPH) | ||
| Parking brake | ON | Parking brake is applied. | |
| OFF | Parking brake is released. | ||
| Lights | ON | Lighting switch is ON | - |
| OFF | Lighting switch is OFF | ||
| Ignition | ON | Ignition switch is ON | - |
| OFF | Ignition switch is in ACC position | ||
| Reverse | ON | Selector lever is in R position | Changes in indication may be delayed. This is normal. |
| OFF | Selector lever is in any position other than R | ||
| SIDE VIEW SW | OFF | - | This item is displayed, but cannot be monitored. |
| ROOM LAMP | OFF | - | This item is displayed, but cannot be monitored. |
Speaker Test
- Select "Speaker Test" to display the Speaker Diagnosis screen. Press "Start" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker. Press "End" to stop the test tones.NOTE: The frequency of test emitted from each speaker is as follows.SPEAKER FREQUENCY
Twiddler® 3 kHz Front woofer 300 Hz Rear squawker 1 kHz
Navigation
