AWD Models

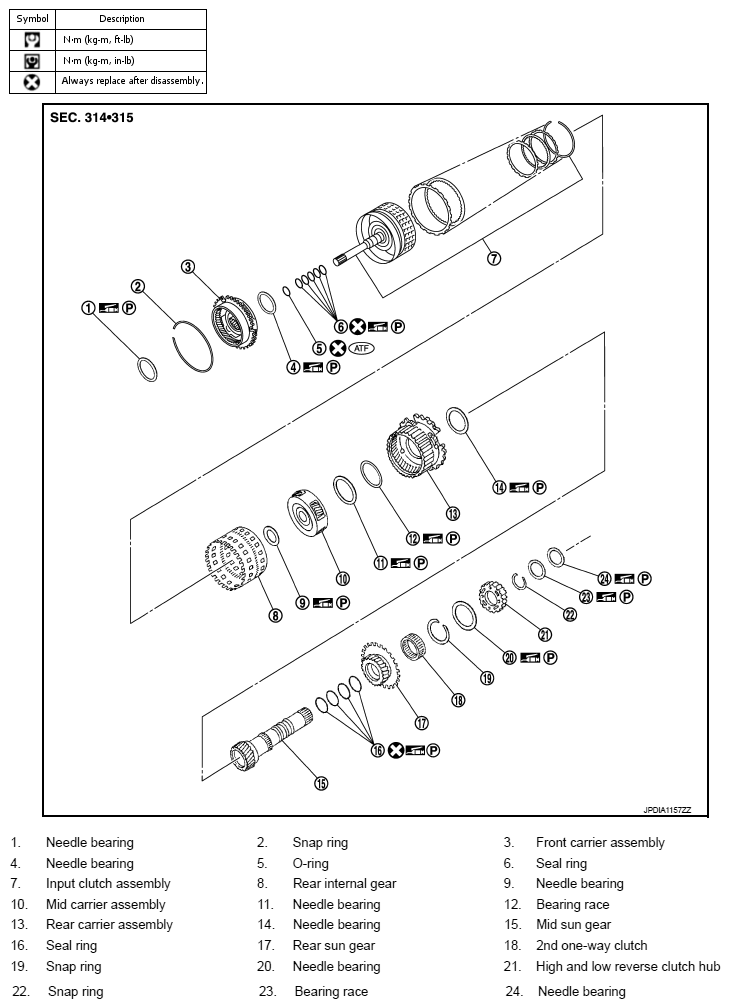

Fig 1: Exploded View Of Transmission Assembly - AWD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

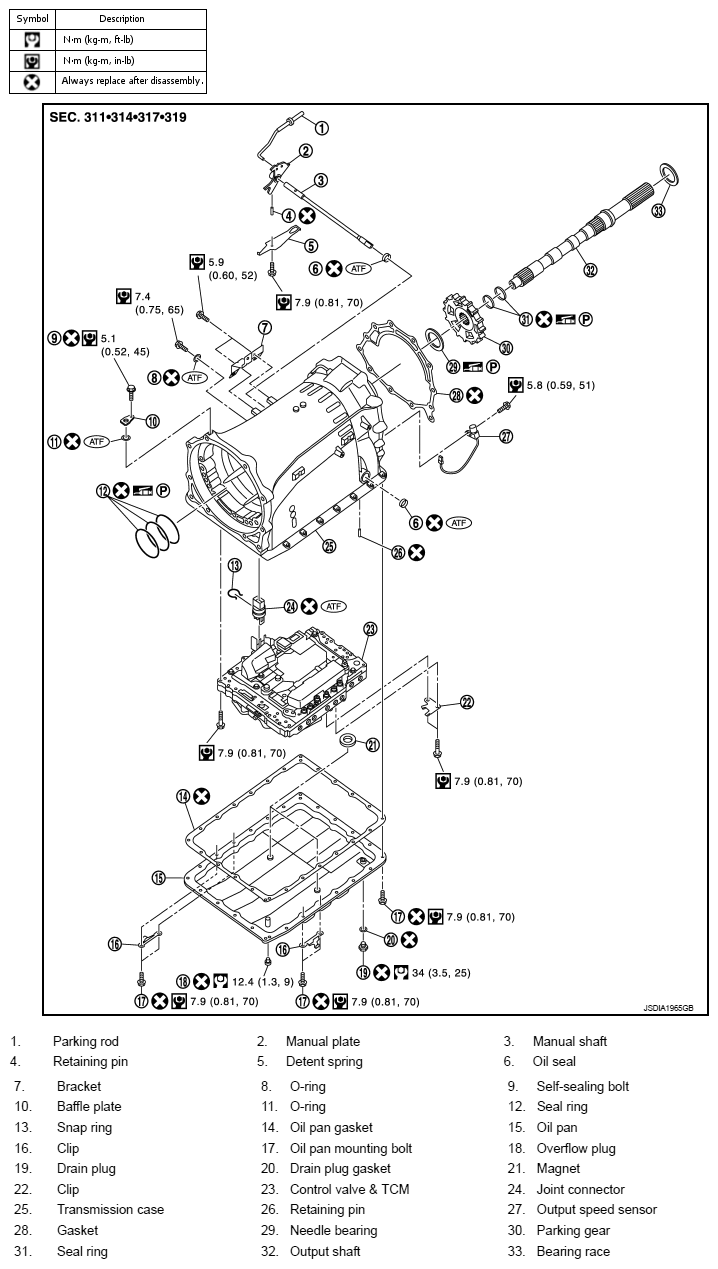

Fig 2: Exploded View Of Transmission Assembly - AWD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

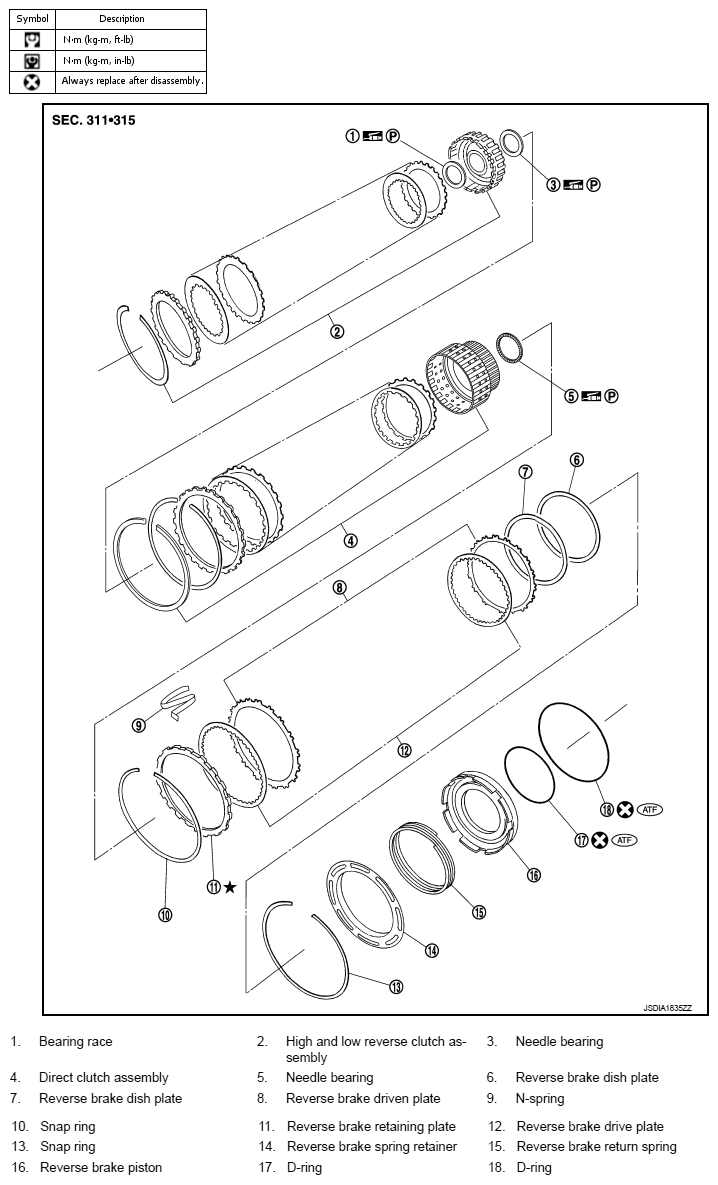

Fig 3: Exploded View Of Transmission Assembly - AWD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

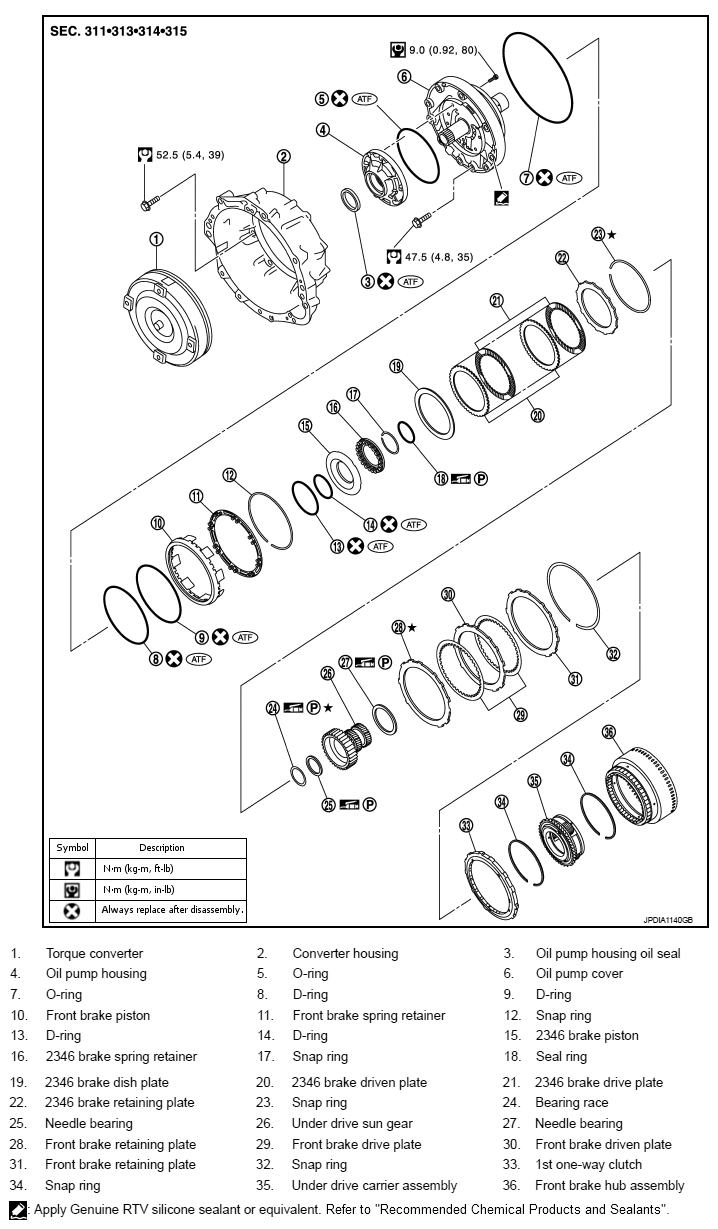

Fig 4: Exploded View Of Transmission Assembly - AWD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

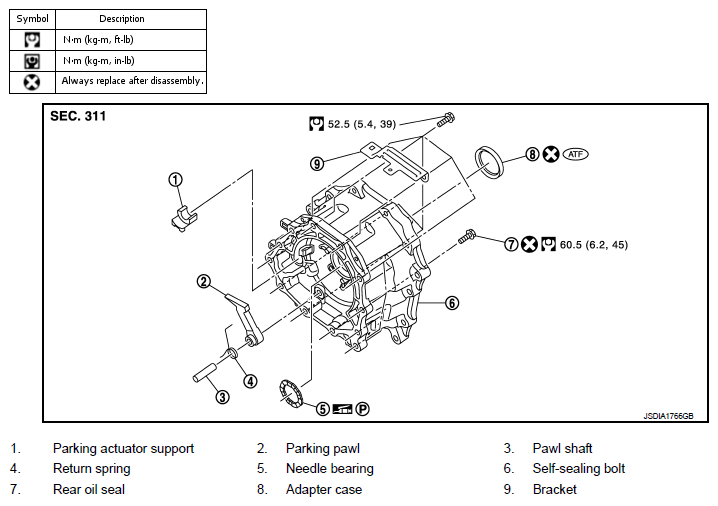

Fig 5: Exploded View Of Transmission Assembly - AWD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
