System - Engine Mechanical & Other

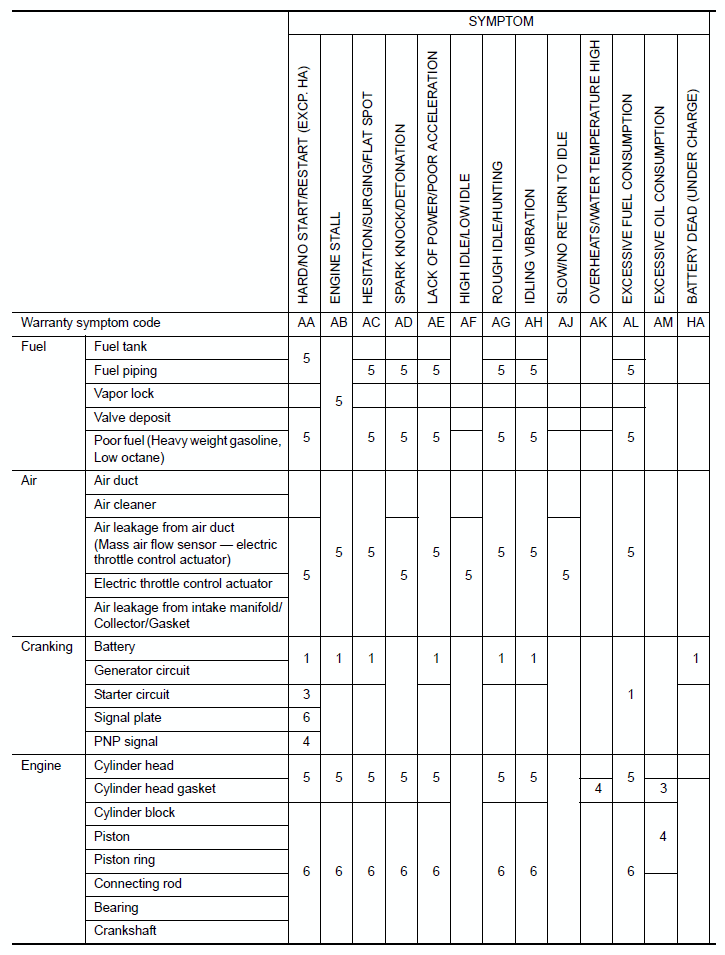

Fig 1: Engine Mechanical & Other Symptom Chart (1 Of 2)
G07015064Courtesy of NISSAN MOTOR CO., U.S.A.

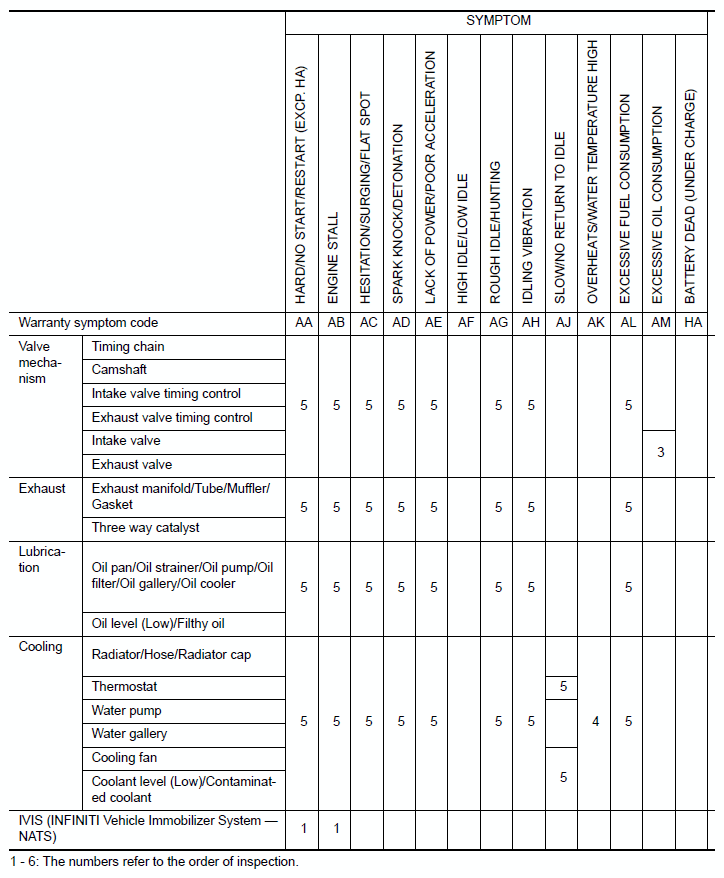

Fig 2: Engine Mechanical & Other Symptom Chart (2 Of 2)
G07015065Courtesy of NISSAN MOTOR CO., U.S.A.
