Component Parts Location

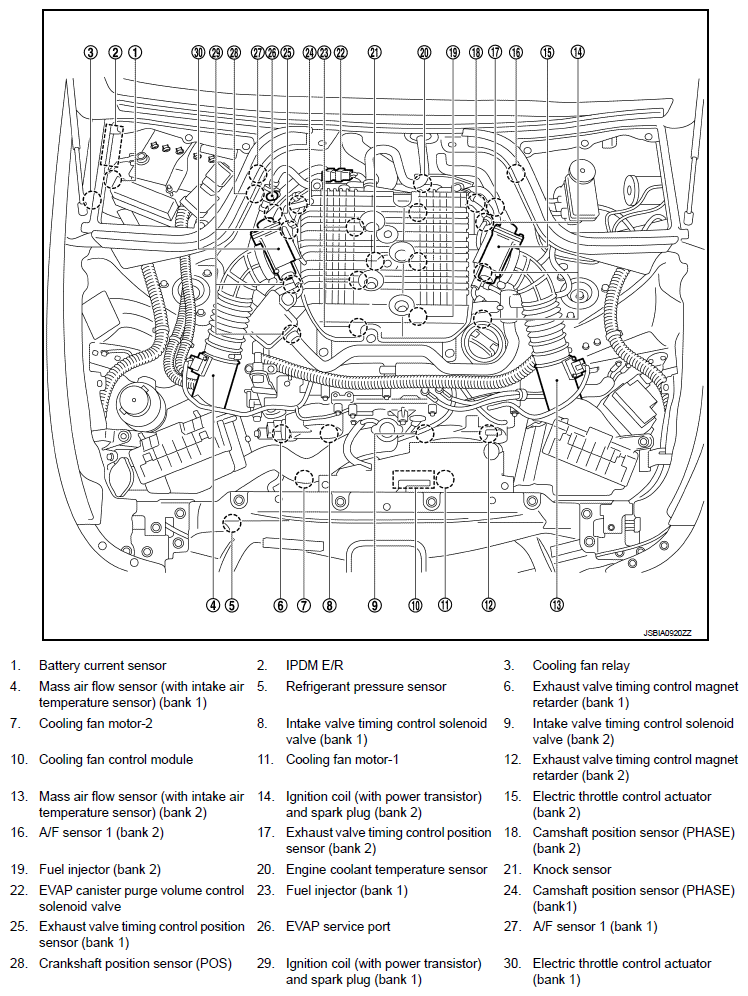

Fig 1: Identifying Cooling Fan Control Components Location (1 Of 21)

G07014731

Courtesy of NISSAN MOTOR CO., U.S.A.

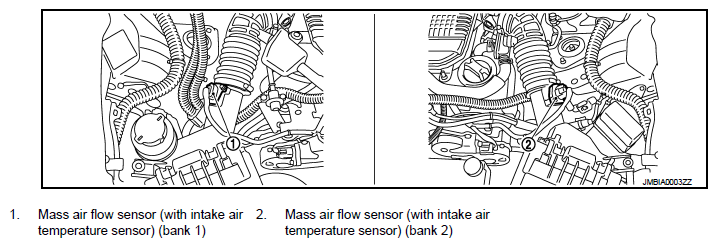

Fig 2: Identifying Cooling Fan Control Components Location (2 Of 21)

G07014732

Courtesy of NISSAN MOTOR CO., U.S.A.

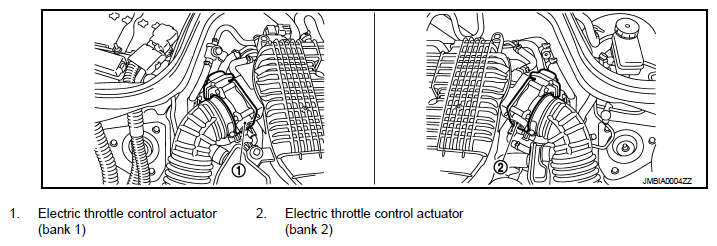

Fig 3: Identifying Cooling Fan Control Components Location (3 Of 21)

G07014733

Courtesy of NISSAN MOTOR CO., U.S.A.

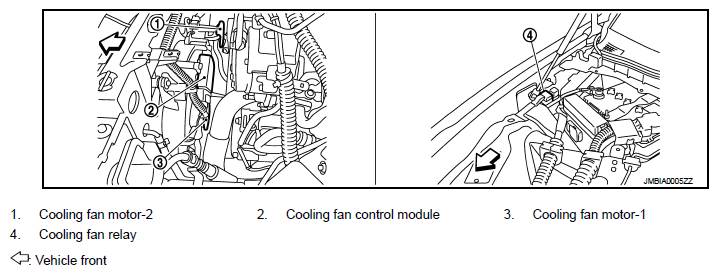

Fig 4: Identifying Cooling Fan Control Components Location (4 Of 21)

G07014734

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Cooling Fan Control Components Location (5 Of 21)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

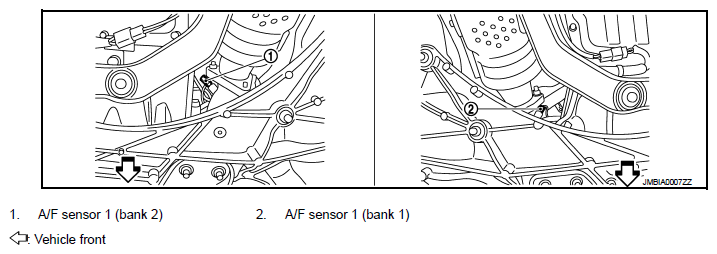

Fig 6: Identifying Cooling Fan Control Components Location (6 Of 21)

G07014736

Courtesy of NISSAN MOTOR CO., U.S.A.

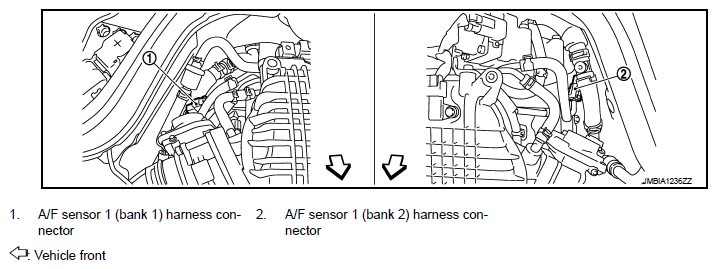

Fig 7: Identifying Cooling Fan Control Components Location (7 Of 21)

G07014737

Courtesy of NISSAN MOTOR CO., U.S.A.

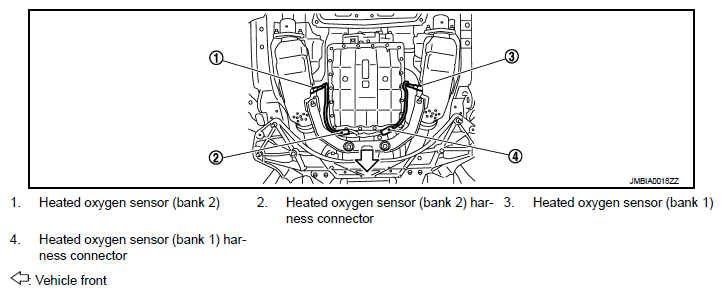

Fig 8: Identifying Cooling Fan Control Components Location (8 Of 21)

G07014738

Courtesy of NISSAN MOTOR CO., U.S.A.

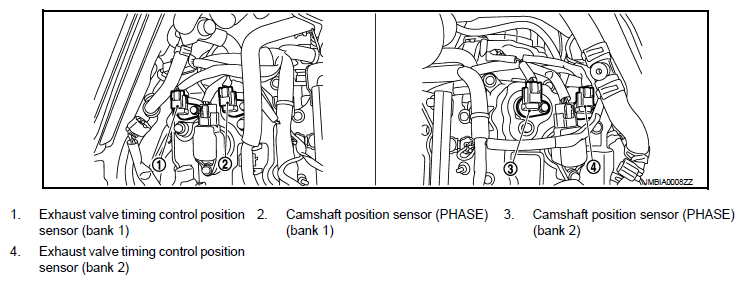

Fig 9: Identifying Cooling Fan Control Components Location (9 Of 21)

G07014739

Courtesy of NISSAN MOTOR CO., U.S.A.

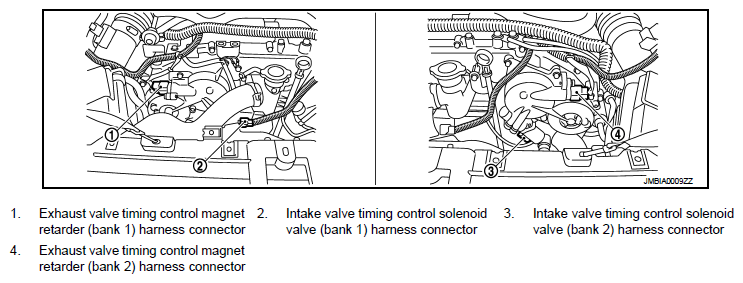

Fig 10: Identifying Cooling Fan Control Components Location (10 Of 21)

G07014740

Courtesy of NISSAN MOTOR CO., U.S.A.

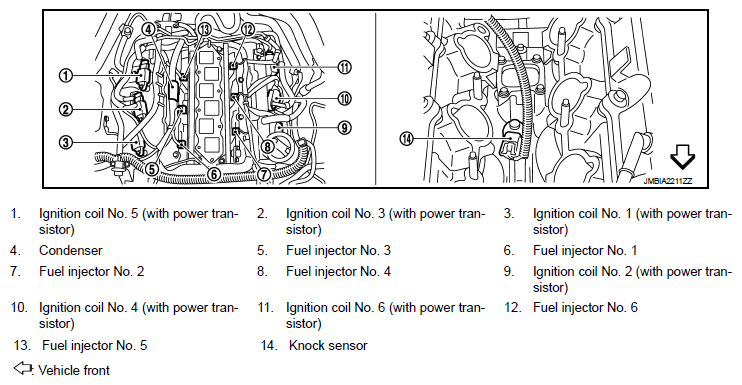

Fig 11: Identifying Cooling Fan Control Components Location (11 Of 21)

G07014741

Courtesy of NISSAN MOTOR CO., U.S.A.

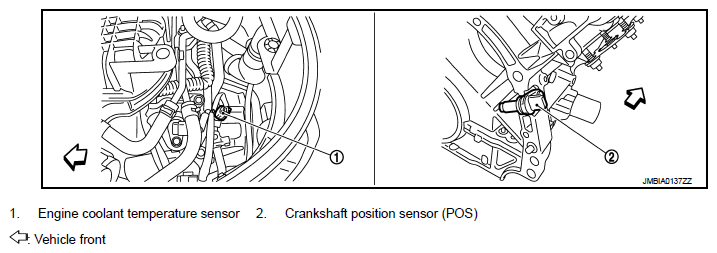

Fig 12: Identifying Cooling Fan Control Components Location (12 Of 21)

G07014742

Courtesy of NISSAN MOTOR CO., U.S.A.

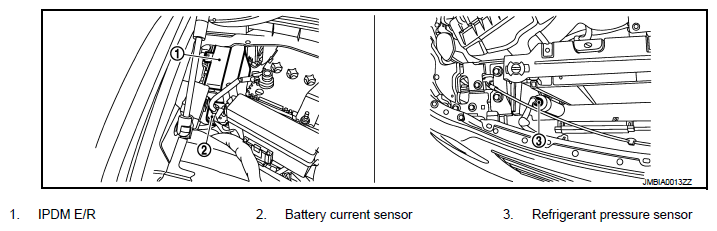

Fig 13: Identifying Cooling Fan Control Components Location (13 Of 21)

G07014743

Courtesy of NISSAN MOTOR CO., U.S.A.

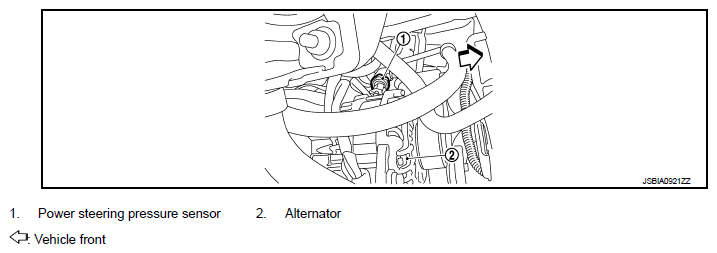

Fig 14: Identifying Cooling Fan Control Components Location (14 Of 21)

G07014744

Courtesy of NISSAN MOTOR CO., U.S.A.

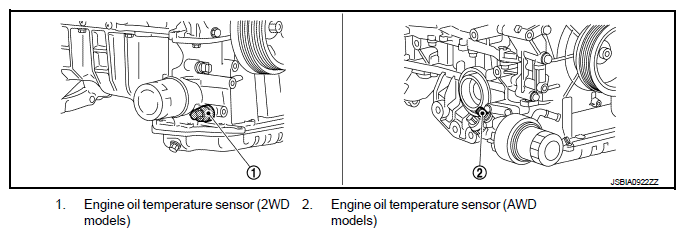

Fig 15: Identifying Cooling Fan Control Components Location (15 Of 21)

G07014745

Courtesy of NISSAN MOTOR CO., U.S.A.

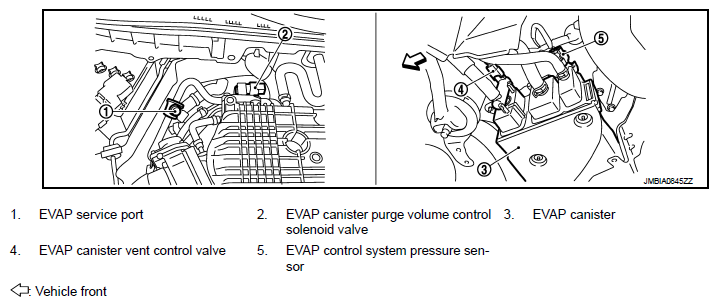

Fig 16: Identifying Cooling Fan Control Components Location (16 Of 21)

G07014746

Courtesy of NISSAN MOTOR CO., U.S.A.

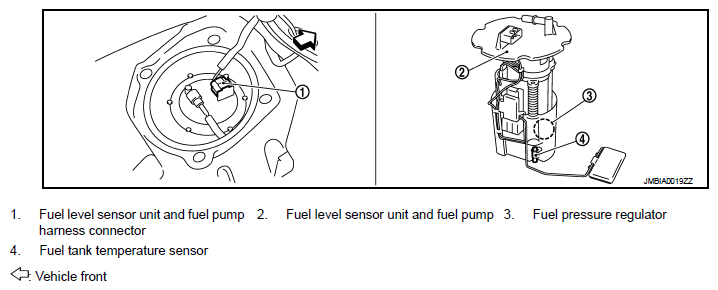

Fig 17: Identifying Cooling Fan Control Components Location (17 Of 21)

G07014747

Courtesy of NISSAN MOTOR CO., U.S.A.

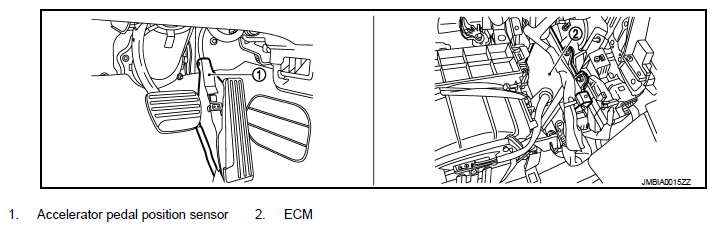

Fig 18: Identifying Cooling Fan Control Components Location (18 Of 21)

G07014748

Courtesy of NISSAN MOTOR CO., U.S.A.

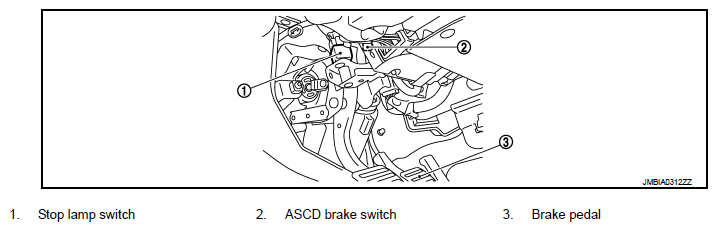

Fig 19: Identifying Cooling Fan Control Components Location (19 Of 21)

G07014749

Courtesy of NISSAN MOTOR CO., U.S.A.

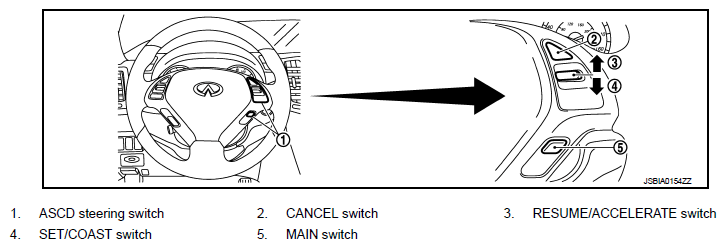

Fig 20: Identifying Cooling Fan Control Components Location (20 Of 21)

G07014750

Courtesy of NISSAN MOTOR CO., U.S.A.

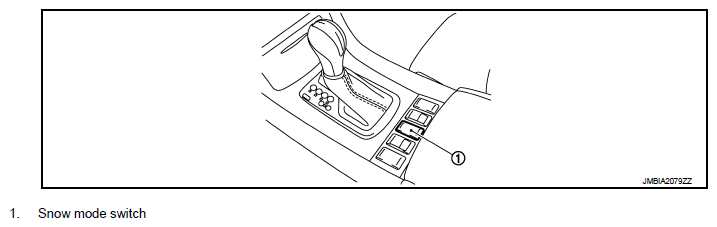

Fig 21: Identifying Cooling Fan Control Components Location (21 Of 21)

G07014751

Courtesy of NISSAN MOTOR CO., U.S.A.
