Component Parts Location

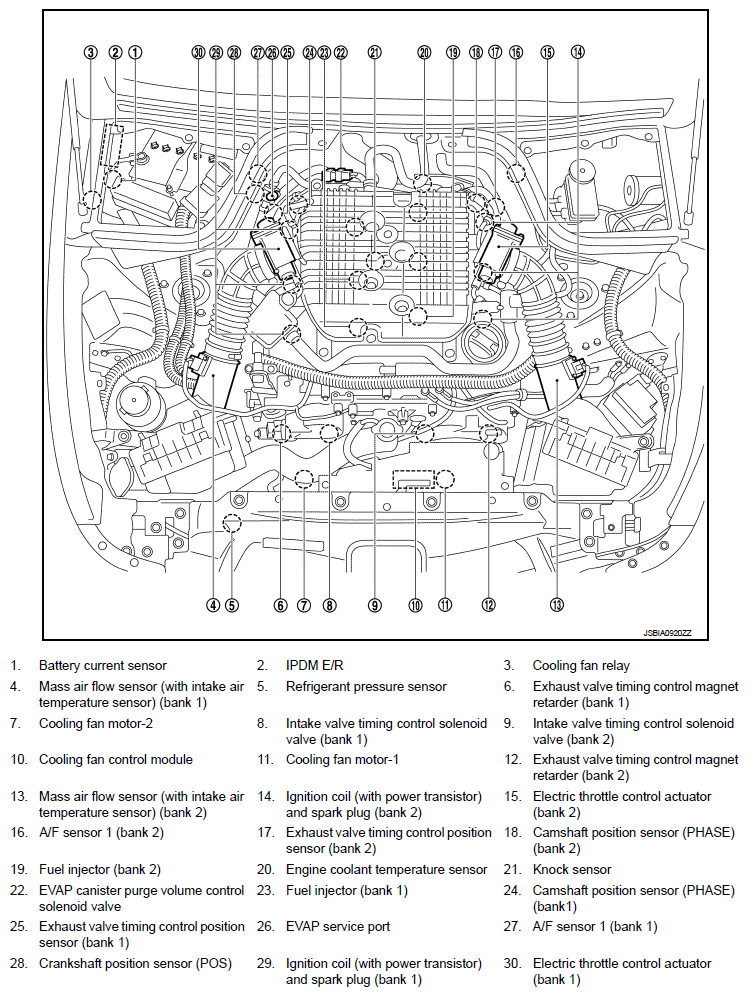

Fig 1: Identifying Intake Valve Timing Control System Components Location (1 Of 2)

G07014822

Courtesy of NISSAN MOTOR CO., U.S.A.

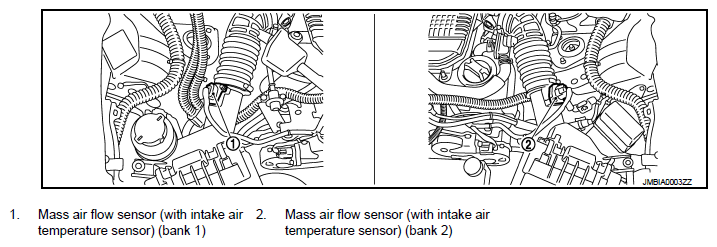

Fig 2: Identifying Intake Valve Timing Control System Components Location (2 Of 2)

G07014823

Courtesy of NISSAN MOTOR CO., U.S.A.

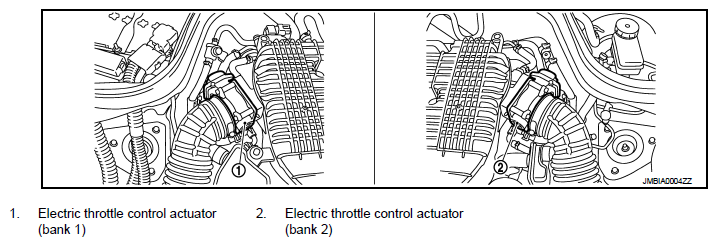

Fig 3: Identifying Intake Valve Timing Control System Components Location (3 Of 2)

G07014824

Courtesy of NISSAN MOTOR CO., U.S.A.

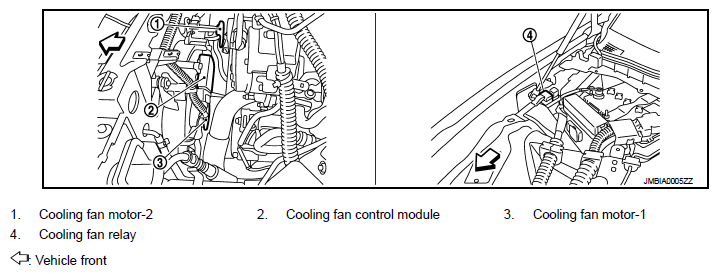

Fig 4: Identifying Intake Valve Timing Control System Components Location (4 Of 2)

G07014825

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Intake Valve Timing Control System Components Location (5 Of 2)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

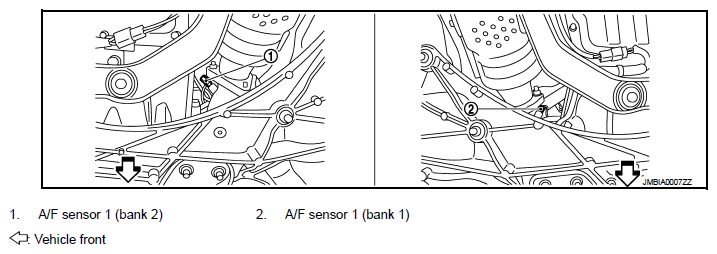

Fig 6: Identifying Intake Valve Timing Control System Components Location (6 Of 2)

G07014827

Courtesy of NISSAN MOTOR CO., U.S.A.

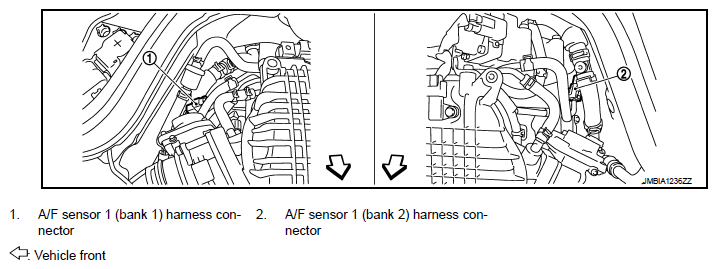

Fig 7: Identifying Intake Valve Timing Control System Components Location (7 Of 2)

G07014828

Courtesy of NISSAN MOTOR CO., U.S.A.

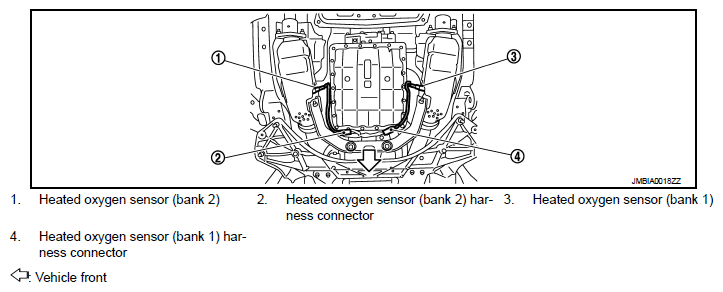

Fig 8: Identifying Intake Valve Timing Control System Components Location (8 Of 2)

G07014829

Courtesy of NISSAN MOTOR CO., U.S.A.

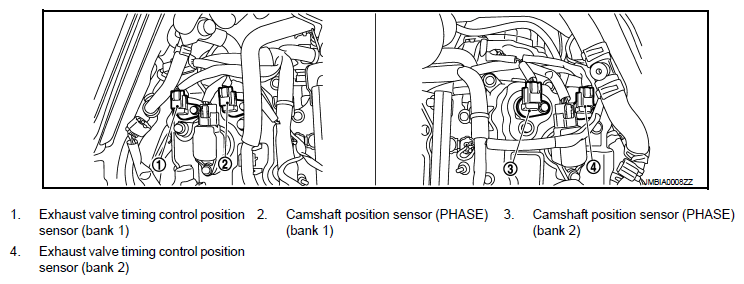

Fig 9: Identifying Intake Valve Timing Control System Components Location (9 Of 2)

G07014830

Courtesy of NISSAN MOTOR CO., U.S.A.

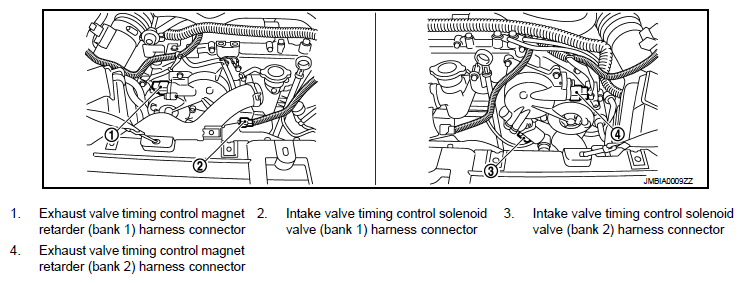

Fig 10: Identifying Intake Valve Timing Control System Components Location (10 Of 2)

G07014831

Courtesy of NISSAN MOTOR CO., U.S.A.

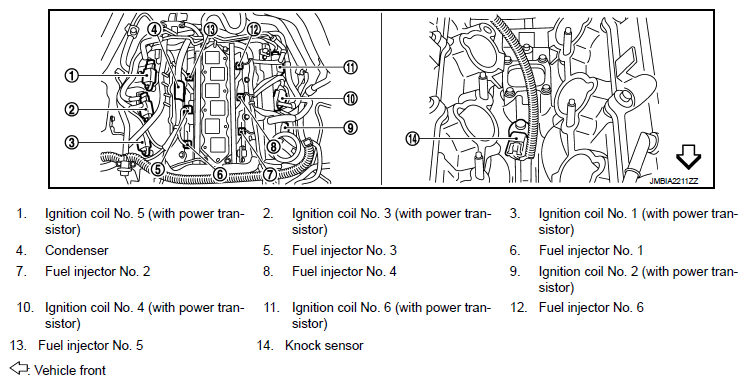

Fig 11: Identifying Intake Valve Timing Control System Components Location (11 Of 2)

G07014832

Courtesy of NISSAN MOTOR CO., U.S.A.

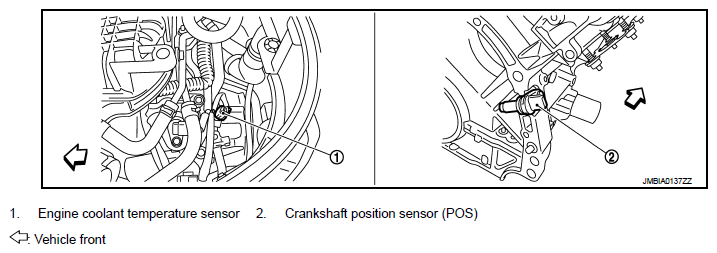

Fig 12: Identifying Intake Valve Timing Control System Components Location (12 Of 2)

G07014833

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intake Valve Timing Control System Components Location (13 Of 2)

G07014834

Courtesy of NISSAN MOTOR CO., U.S.A.

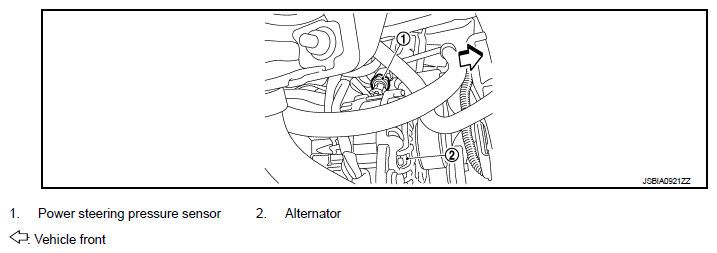

Fig 14: Identifying Intake Valve Timing Control System Components Location (14 Of 2)

G07014835

Courtesy of NISSAN MOTOR CO., U.S.A.

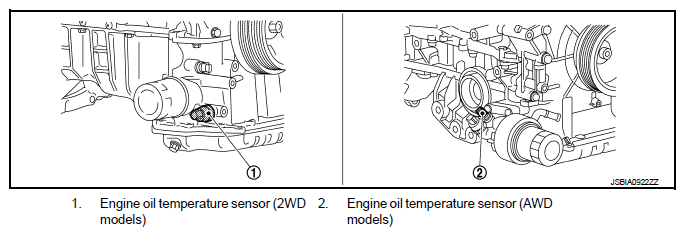

Fig 15: Identifying Intake Valve Timing Control System Components Location (15 Of 2)

G07014836

Courtesy of NISSAN MOTOR CO., U.S.A.

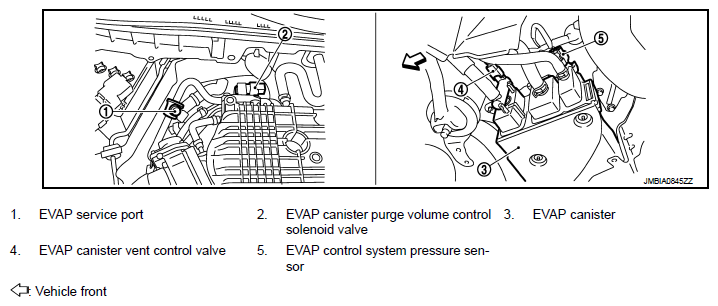

Fig 16: Identifying Intake Valve Timing Control System Components Location (16 Of 2)

G07014837

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Intake Valve Timing Control System Components Location (17 Of 2)

G07014838

Courtesy of NISSAN MOTOR CO., U.S.A.

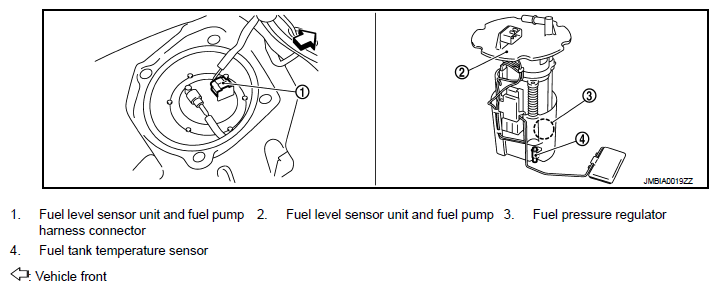

Fig 18: Identifying Intake Valve Timing Control System Components Location (18 Of 2)

G07014839

Courtesy of NISSAN MOTOR CO., U.S.A.

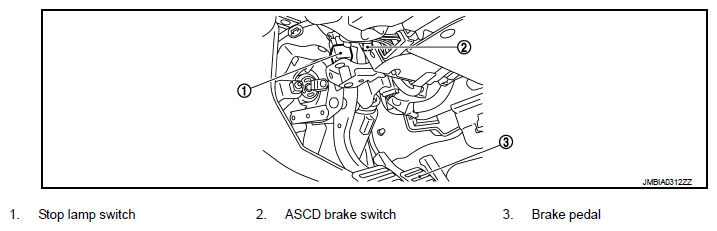

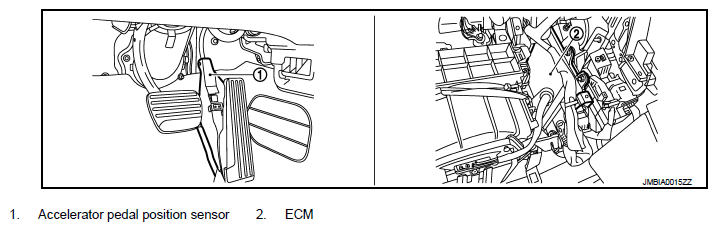

Fig 19: Identifying Intake Valve Timing Control System Components Location (19 Of 2)

G07014840

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control System Components Location (20 Of 2)

G07014841

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Intake Valve Timing Control System Components Location (21 Of 2)

G07014842

Courtesy of NISSAN MOTOR CO., U.S.A.
