Power Steering Control Unit Connector End View (M108)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering Control Unit Connector End View (M108)

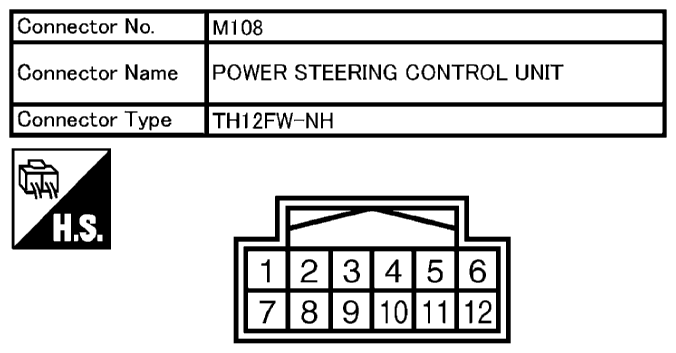

Fig 1: Power Steering Control Unit Connector End View (M108)
Courtesy of NISSAN NORTH AMERICA, INC.
