Component Parts Location

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

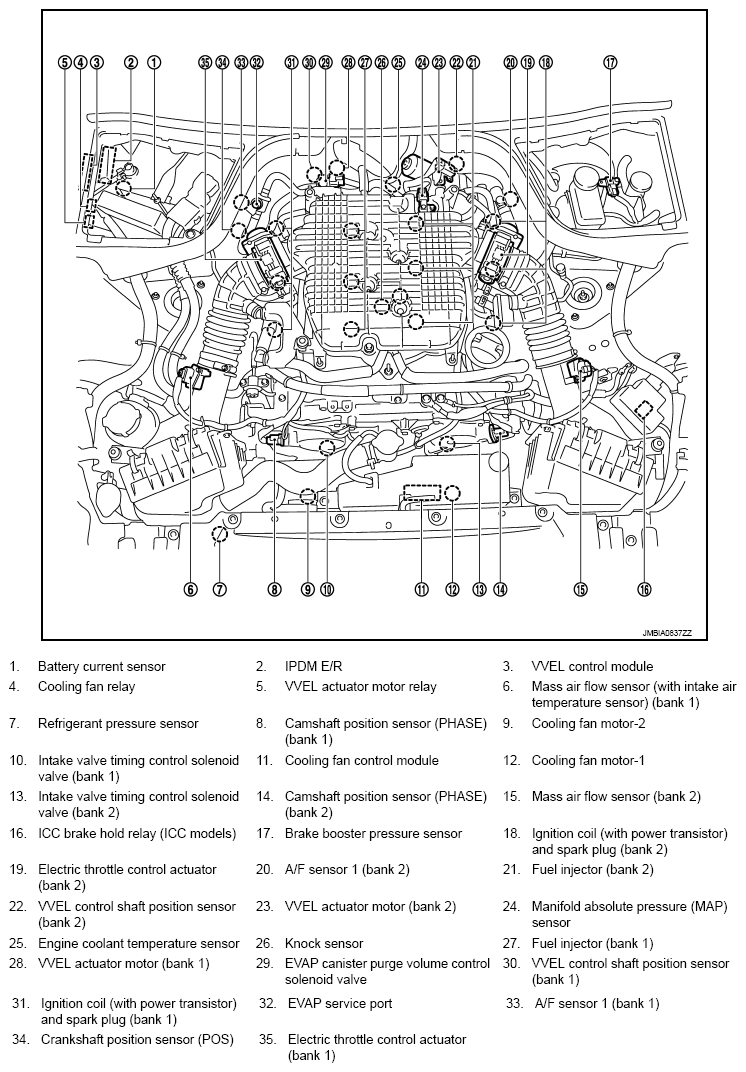

Fig 1: Identifying VVEL System Component Parts Location (1 Of 21)

G07159660

Courtesy of NISSAN MOTOR CO., U.S.A.

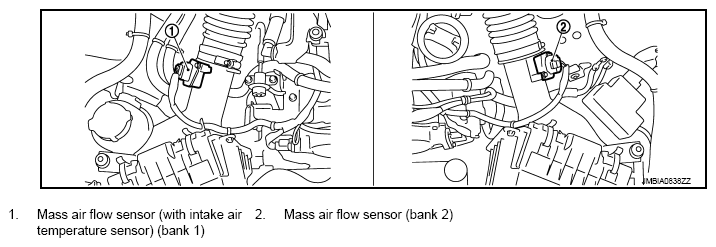

Fig 2: Identifying VVEL System Component Parts Location (2 Of 21)

G07159661

Courtesy of NISSAN MOTOR CO., U.S.A.

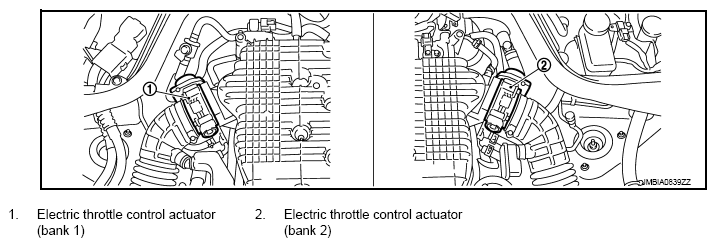

Fig 3: Identifying VVEL System Component Parts Location (3 Of 21)

G07159662

Courtesy of NISSAN MOTOR CO., U.S.A.

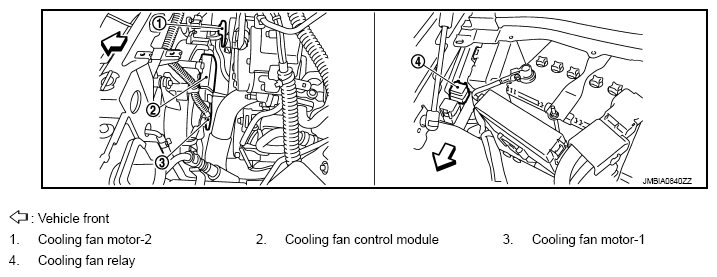

Fig 4: Identifying VVEL System Component Parts Location (4 Of 21)

G07159663

Courtesy of NISSAN MOTOR CO., U.S.A.

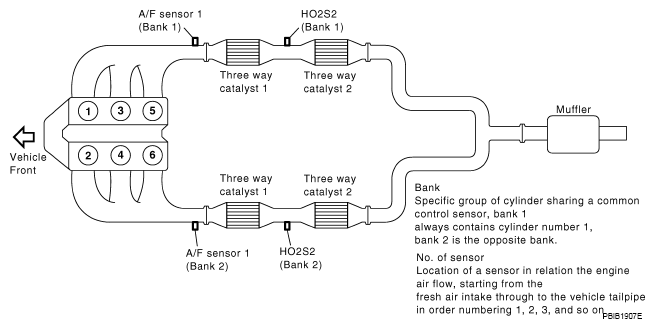

Fig 5: Identifying VVEL System Component Parts Location (5 Of 21)

G07159664

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying VVEL System Component Parts Location (6 Of 21)

G07159665

Courtesy of NISSAN MOTOR CO., U.S.A.

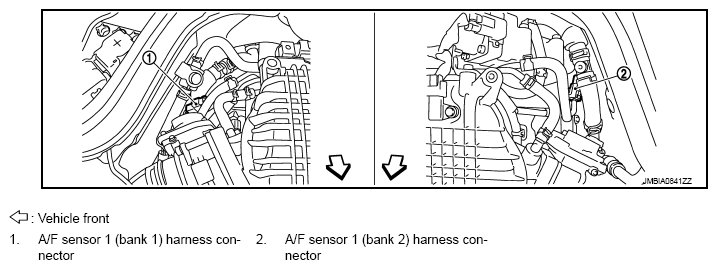

Fig 7: Identifying VVEL System Component Parts Location (7 Of 21)

G07159666

Courtesy of NISSAN MOTOR CO., U.S.A.

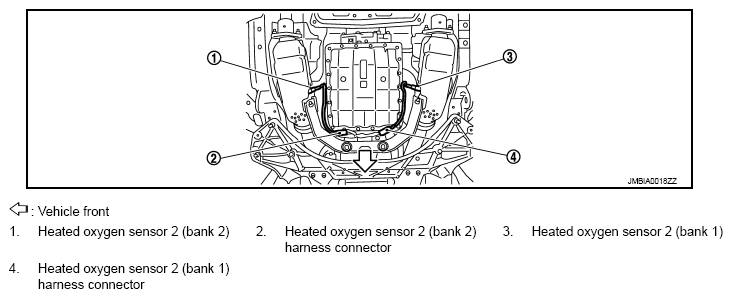

Fig 8: Identifying VVEL System Component Parts Location (8 Of 21)

G07159667

Courtesy of NISSAN MOTOR CO., U.S.A.

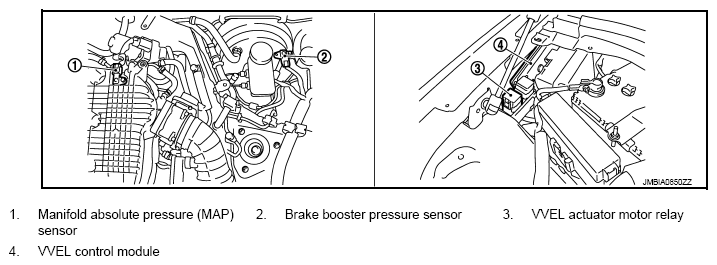

Fig 9: Identifying VVEL System Component Parts Location (9 Of 21)

G07159668

Courtesy of NISSAN MOTOR CO., U.S.A.

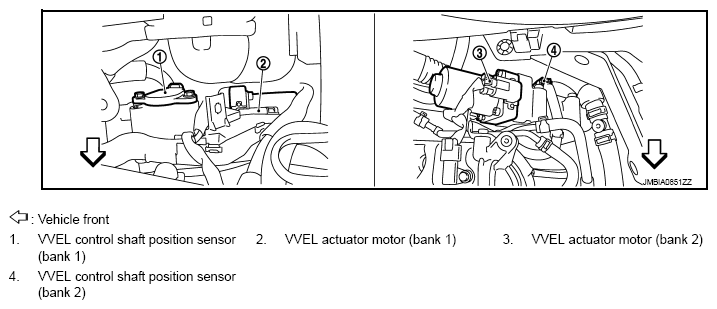

Fig 10: Identifying VVEL System Component Parts Location (10 Of 21)

G07159669

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying VVEL System Component Parts Location (11 Of 21)

G07159670

Courtesy of NISSAN MOTOR CO., U.S.A.

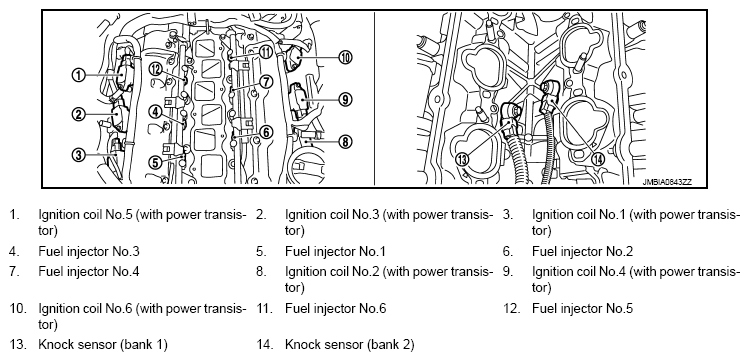

Fig 12: Identifying VVEL System Component Parts Location (12 Of 21)

G07159671

Courtesy of NISSAN MOTOR CO., U.S.A.

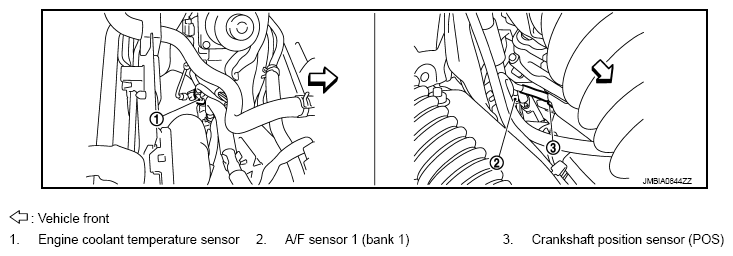

Fig 13: Identifying VVEL System Component Parts Location (13 Of 21)

G07159672

Courtesy of NISSAN MOTOR CO., U.S.A.

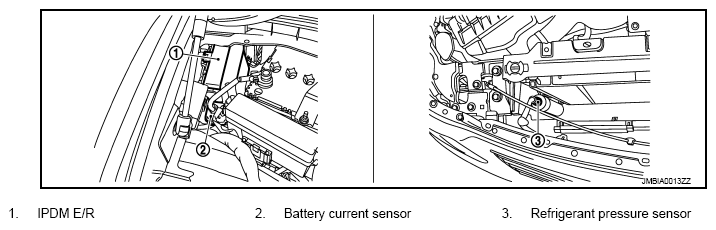

Fig 14: Identifying VVEL System Component Parts Location (14 Of 21)

G07159673

Courtesy of NISSAN MOTOR CO., U.S.A.

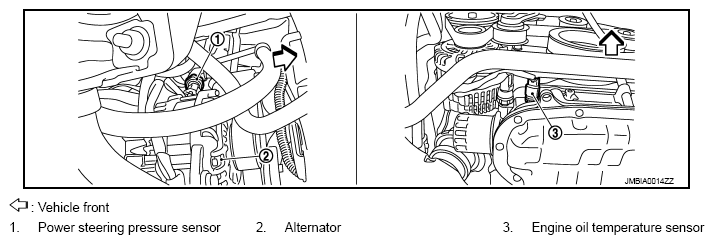

Fig 15: Identifying VVEL System Component Parts Location (15 Of 21)

G07159674

Courtesy of NISSAN MOTOR CO., U.S.A.

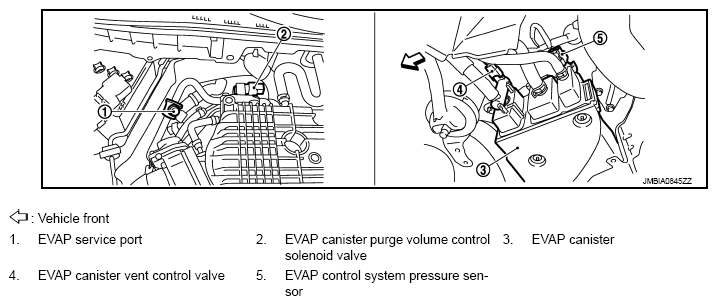

Fig 16: Identifying VVEL System Component Parts Location (16 Of 21)

G07159675

Courtesy of NISSAN MOTOR CO., U.S.A.

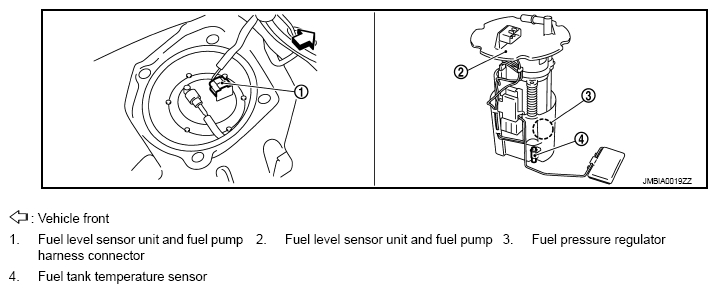

Fig 17: Identifying VVEL System Component Parts Location (17 Of 21)

G07159676

Courtesy of NISSAN MOTOR CO., U.S.A.

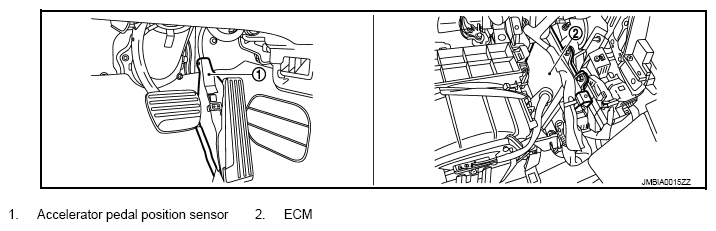

Fig 18: Identifying VVEL System Component Parts Location (18 Of 21)

G07159677

Courtesy of NISSAN MOTOR CO., U.S.A.

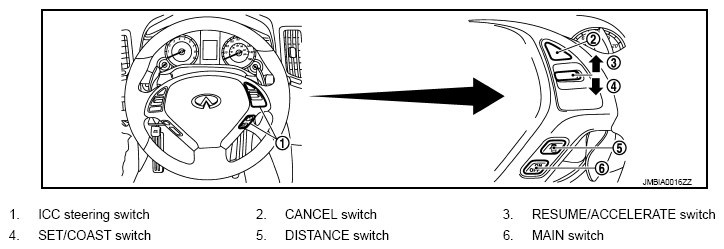

Fig 19: Identifying VVEL System Component Parts Location (19 Of 21)

G07159678

Courtesy of NISSAN MOTOR CO., U.S.A.

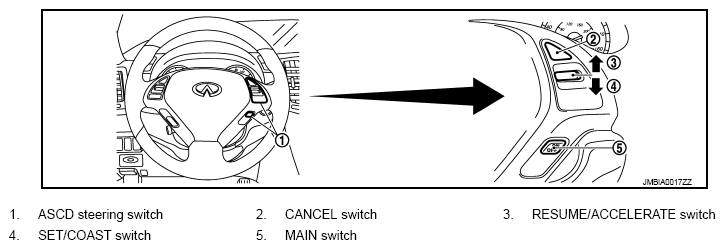

Fig 20: Identifying VVEL System Component Parts Location (20 Of 21)

G07159679

Courtesy of NISSAN MOTOR CO., U.S.A.

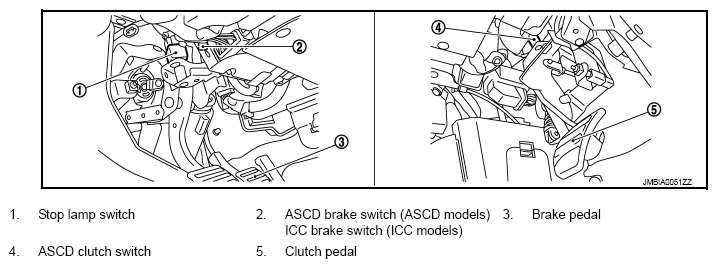

Fig 21: Identifying VVEL System Component Parts Location (21 Of 21)

G07159680

Courtesy of NISSAN MOTOR CO., U.S.A.
