Engine Control System - G37 Convertible - Introduction (1 Of 2)
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Work Flow
>>
Overall Sequence
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Overall Sequence

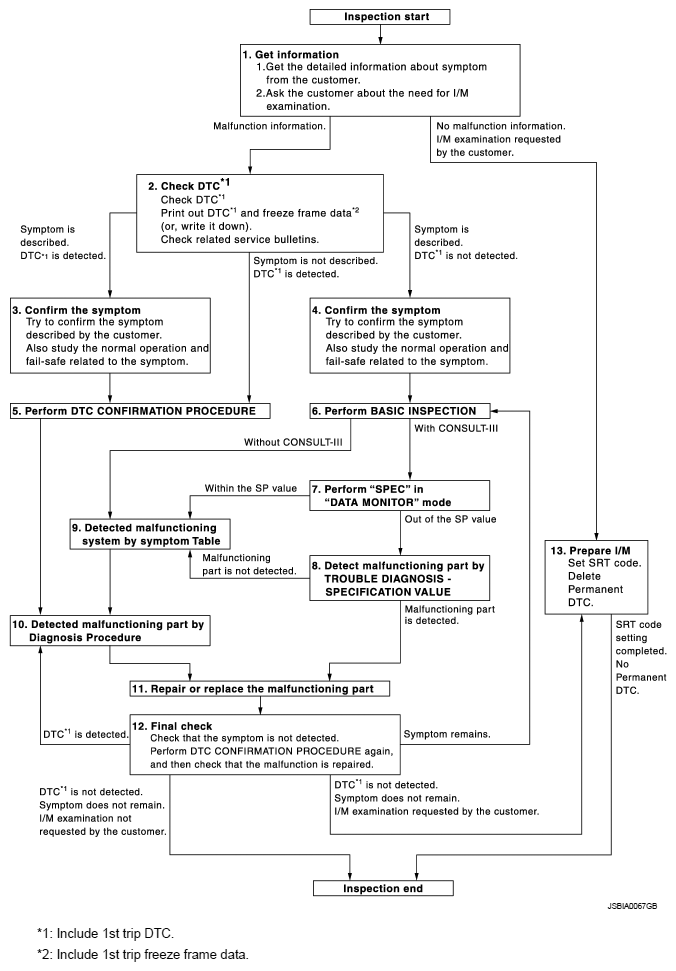

Fig 1: Diagnosis And Repair Workflow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
